3-80 ENGINE

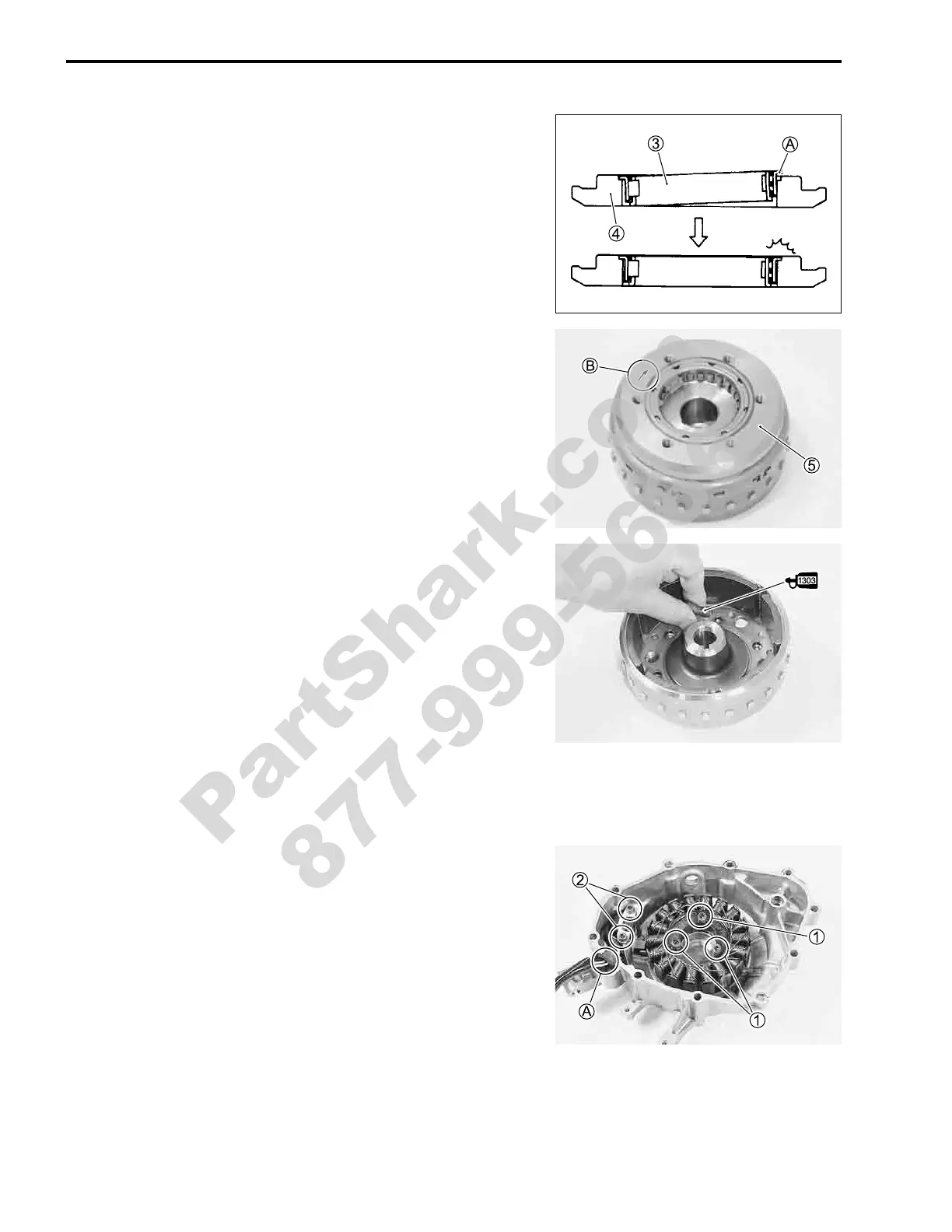

• Be sure to seat the flange
A of the one way clutch
3 to the
guide
4.
• Install the guide
5 to the generator rotor with the arrow mark
B faced upward.
• Apply THREAD LOCK SUPER to the bolts and tighten them
to the specified torque.
,99000-32030: THREAD LOCK SUPER “1303”
$ Starter clutch bolt: 25 N·m (2.5 kgf-m, 18.0 lb-ft)
• Apply engine oil to the one way clutch.
GENERATOR AND SIGNAL GENERATOR
INSPECTION
Refer to pages 8-10, 27 for generator and CKP sensor inspec-
tion.
REASSEMBLY
• When installing the generator starter set bolts
1 and the CKP
sensor set bolts
2 tighten them to the specified torque.
$ Generator stator set bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
CKP sensor set bolt: 6.5 N·m (0.65 kgf-m, 4.7 lb-ft)
NOTE:
Be sure to install the grommet
A
to the generator cover.
