Suzuki DL650/AK7DL650/AK8 User Manual

SERVICING INFORMATION 9-27

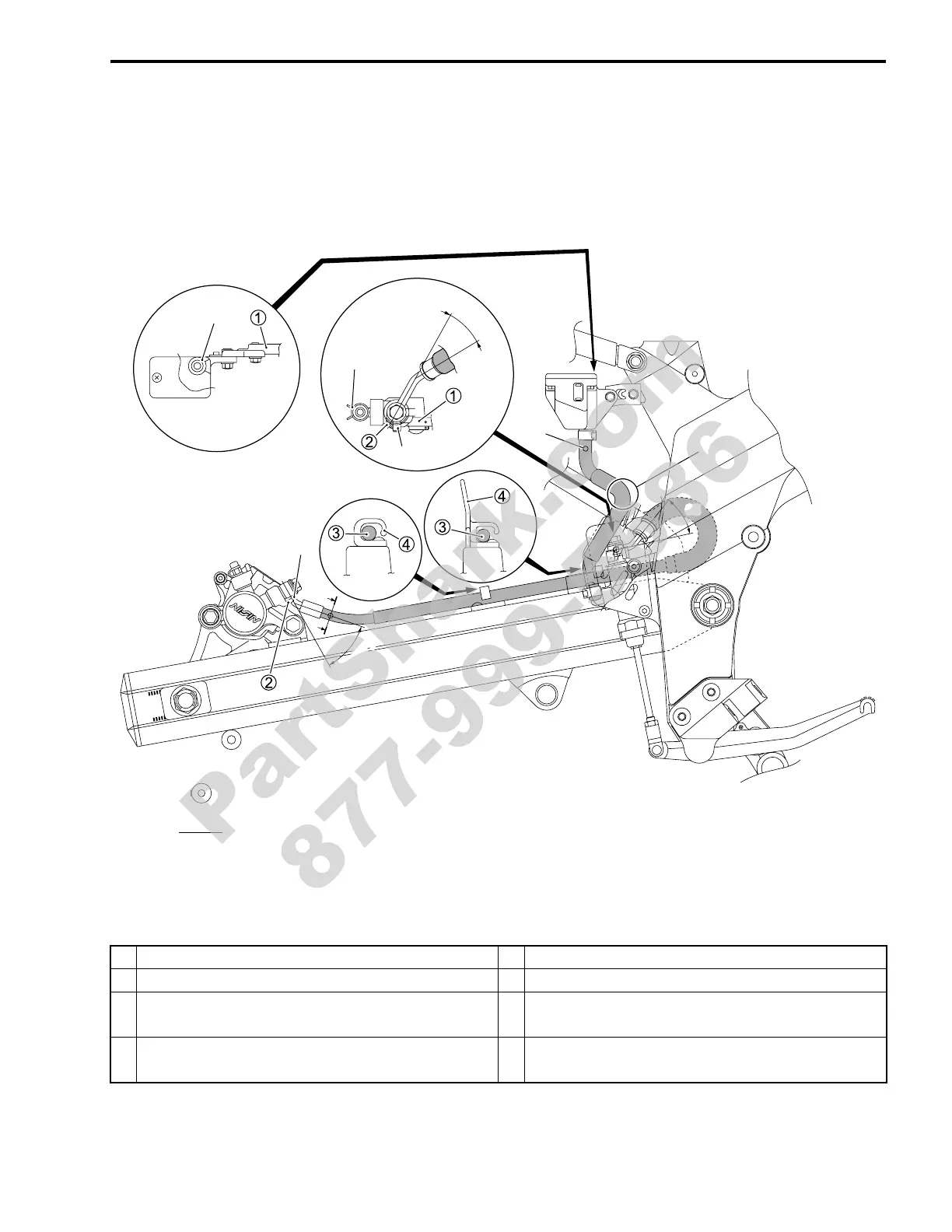

REAR BRAKE HOSE ROUTING
\
UPPER
LOWER
35 ˚
*1
*1
*3
*3
*2
*4
42 ˚
A – A
35 ˚
A
A

1 Frame *1 Clamp ends should face forward.

2 Stopper *2 White paint faces outside.

3
Brake hose
*3
After the brake hose union has contacted the
stopper, tighten the union bolt.

4
Brake hose guide
*4
Pass through the brake hose outside the seat
rail.
