FUEL SYSTEM AND THROTTLE BODY 5-23
THROTTLE BODY REASSEMBLY

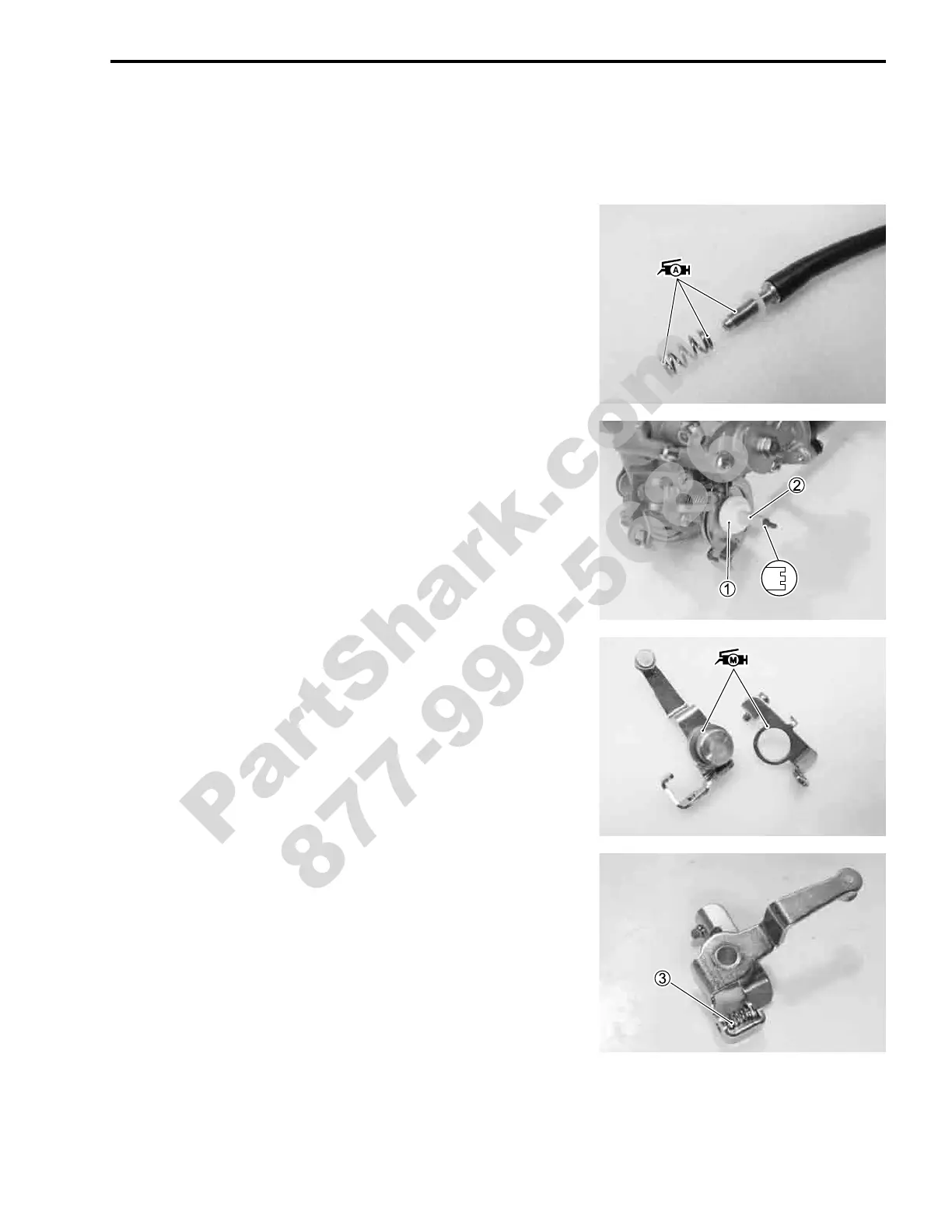

Reassemble the throttle body in the reverse order of disassem-
bly.
Pay attention to the following points:
• Apply SUZUKI SUPER GREASE to the throttle stop screw tip
and the both ends of a spring.
& 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Install the plastic washer
1 and bushing
2.
NOTE:
The concave of a bushing is faced outside.
• Install the spring.
• Apply SUZUKI MOLY PASTE to the fast idle link lever.
) 99000-25140: SUZUKI MOLY PASTE
• Install the spring
3.
