8-14 ELECTRICAL SYSTEM
STARTER MOTOR REMOVAL AND
DISASSEMBLY
• Remove the starter motor and disconnect the starter motor
lead wire

1.

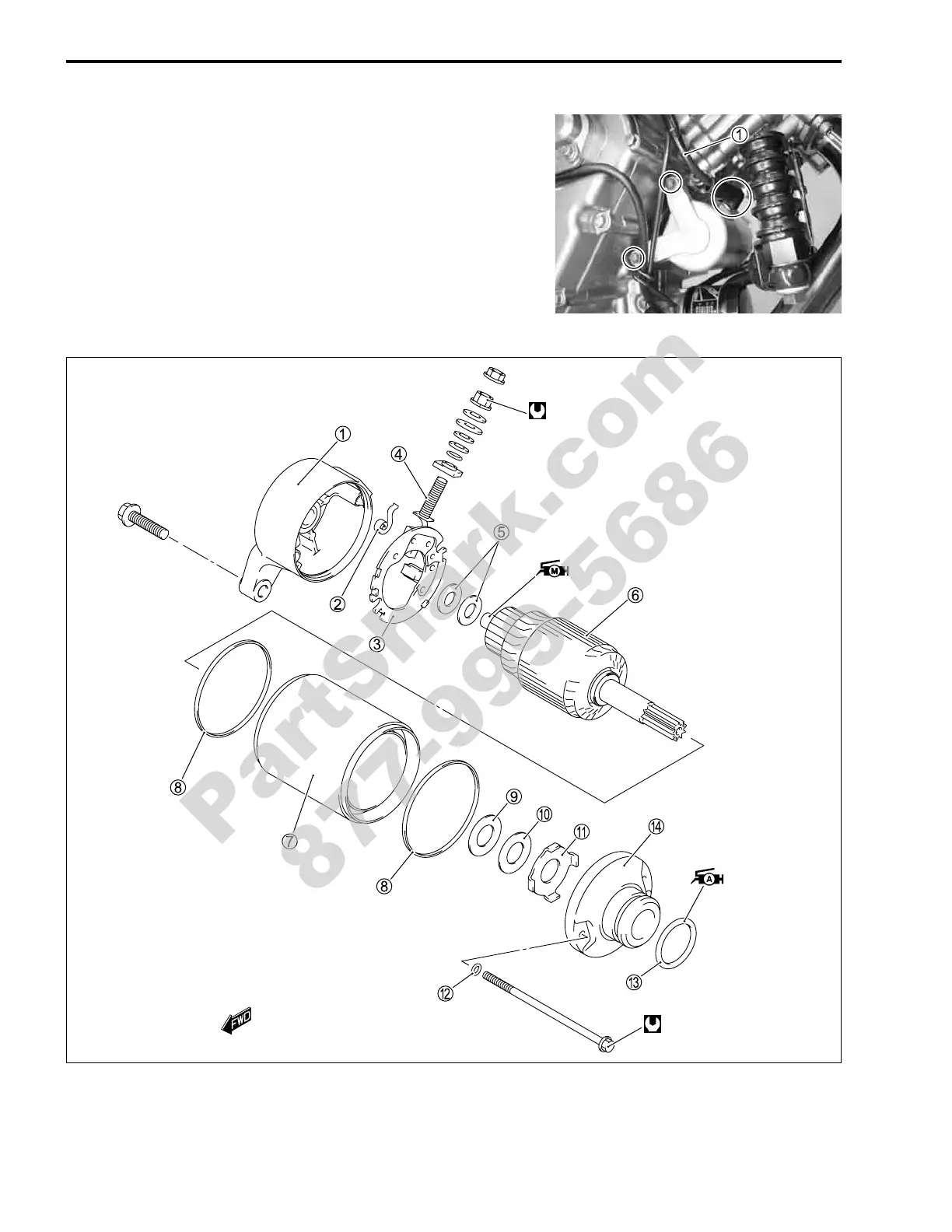

• Disassemble the starter motor as shown in the illustration.

1 Housing end (rear bracket)

6 Armature

A Thrust stopper

2 Brush spring (2 pcs)

7 Starter motor case

B O-ring (2 pcs)

3 Brush holder

8 Seal ring (2 pcs)

C O-ring

4 Terminal

9 Washer

D Housing end (front bracket)

5 Washer

0 Slip washer
3.5 N·m
(0.4 kgf-m, 2.45 lb-ft)
6 N·m
(0.6 kgf-m, 4.3 lb-ft)
