Suzuki DL650/AK7DL650/AK8 User Manual

9-26 SERVICING INFORMATION

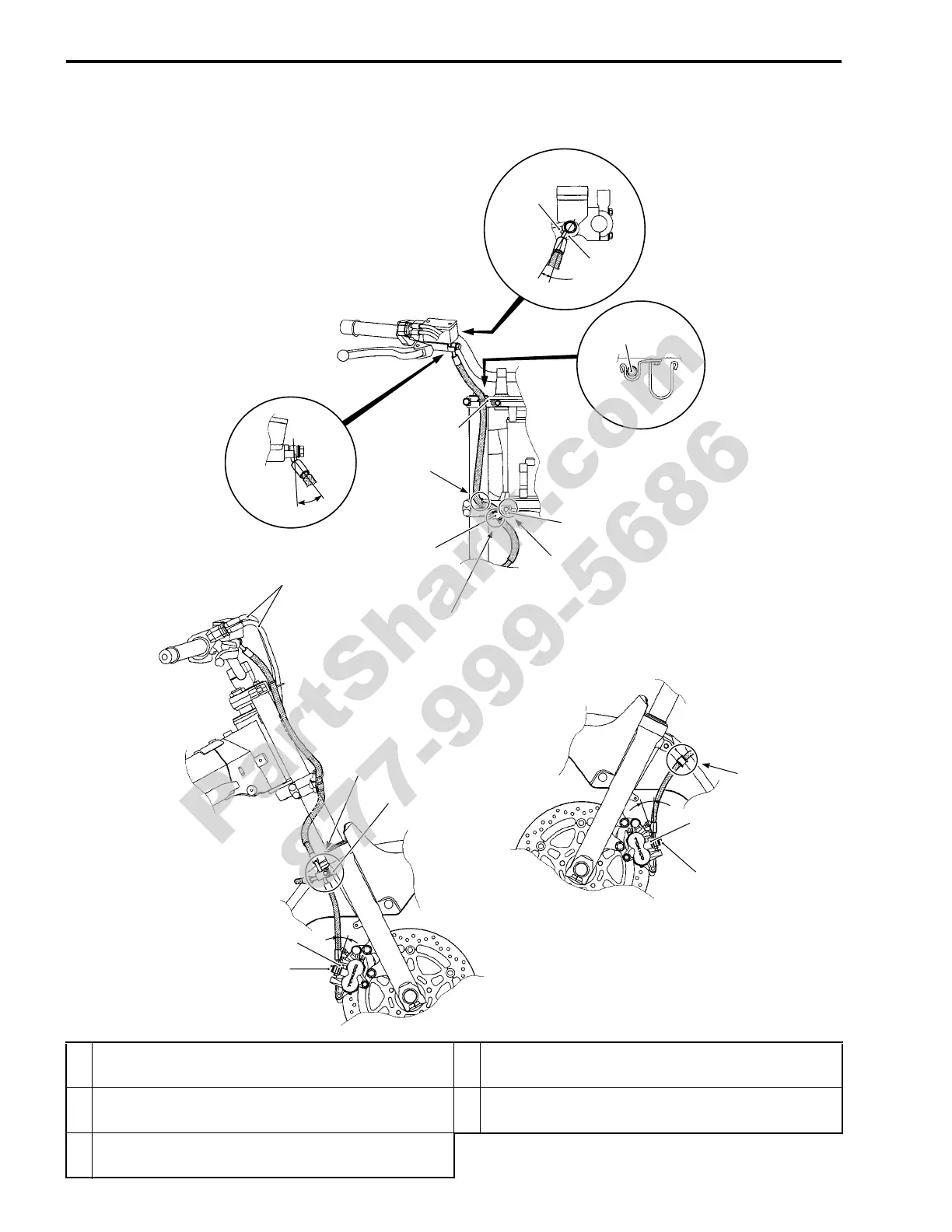

FRONT BRAKE HOSE ROUTING
\
Throttle cables
Stopper
21 ˚
21 ˚
Stopper
Brake hose guide
*4
*2
*1
*5
*3
*5
*1
Brake hose
clamp
Stopper
Stopper
*1
Stopper
21 ˚
Brake hose
42 ˚
*1
After the brake hose union has contacted the
stopper, tighten the union bolt.
*4
Assemble the brake hose firmly.
*2
After positioning the brake hose junction with the
stopper, tighten the bolt.
*5
Clamp the brake hose firmly.
*3
After positioning the clamp with the stopper,
tighten the clamp bolt.
