7-10 CHASSIS

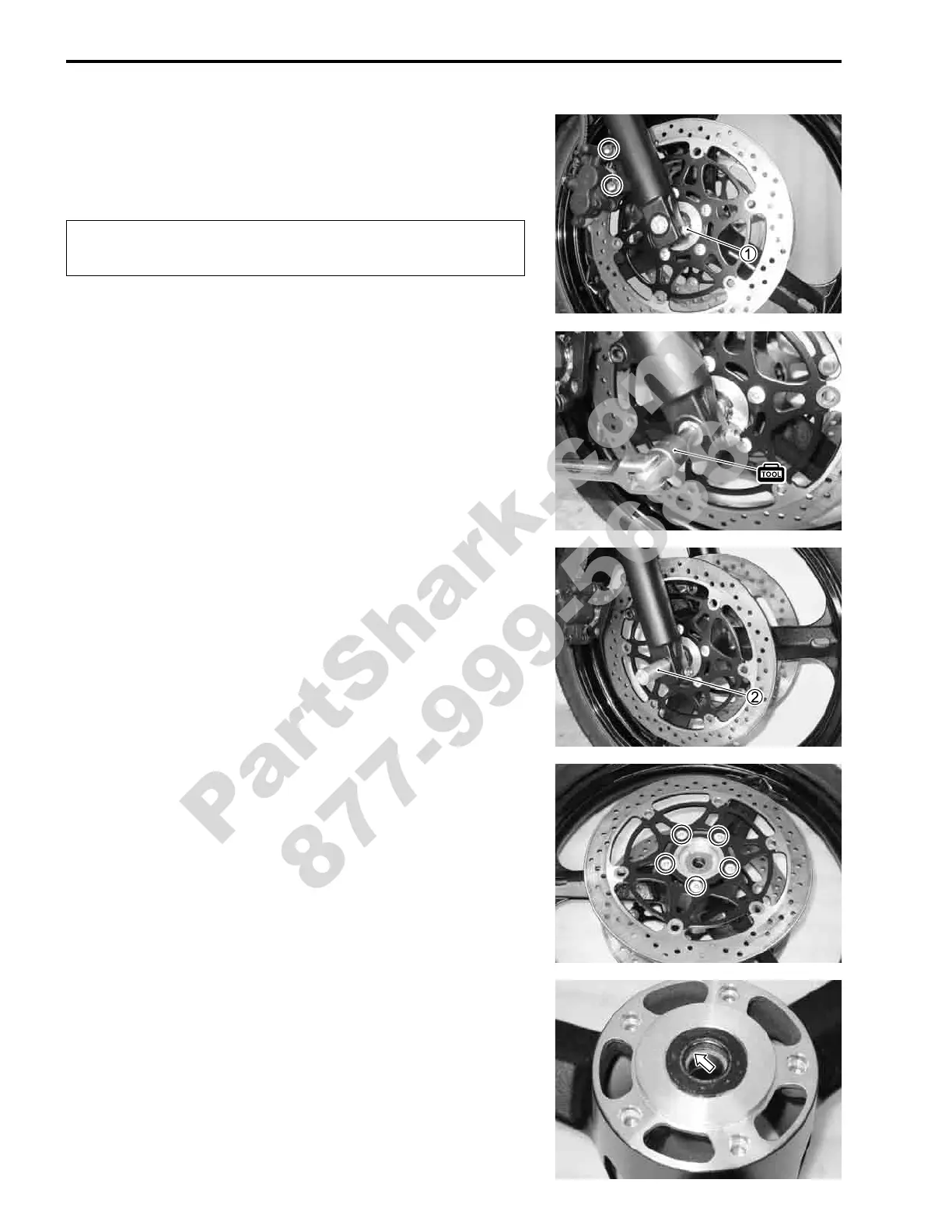

REMOVAL
• Remove the right and left brake calipers. ("7-59)
• Loosen the axle pinch bolt

1 on the right front fork leg.
#
• Slightly loosen the front axle with the special tool.
$ 09900-18710: Hexagon bit 12 mm
• Raise the front wheel off the ground and support the motorcy-
cle with a jack or a wooden block.
• Remove the front axle

2 and the front wheel.
NOTE:
After removing the front wheel, fit the calipers temporarily to the
original positions.
INSPECTION AND DISASSEMBLY
TIRE ("7-79)
BRAKE DISC ("7-65)
• Remove the brake discs.
DUST SEAL
• Inspect the dust seal lip for wear or damage. If any damages
are found, replace the dust seal with a new one.
Do not operate the brake lever while removing the cal-
ipers.
