SDS CHECK
Using SDS, take the sample of data from the new motorcycle and at the time of periodic maintenance at
your dealership.
Save the data in the computer or by printing and filing the hard copies. The saved or filed data are useful for
troubleshooting as they can be compared periodically with changes over time or failure conditions of the
motorcycle.
For example, when a motorcycle is brought in for service but the troubleshooting is difficult, comparison with
the normal data that have been saved or filed can allow the specific ABS failure to be determined.
• Remove the seat. (!DL650K4 7-4)
• Set up the SDS tool. (!Page 94)
# 09904-41010: SDS set tool
99565-01010-008: CD-ROM Ver. 8
NOTE:
* Before taking the sample of data, check and clear the Past DTC. (!Page 95)
* A number of different data under a fixed condition as shown below should be saved or filed as sample.

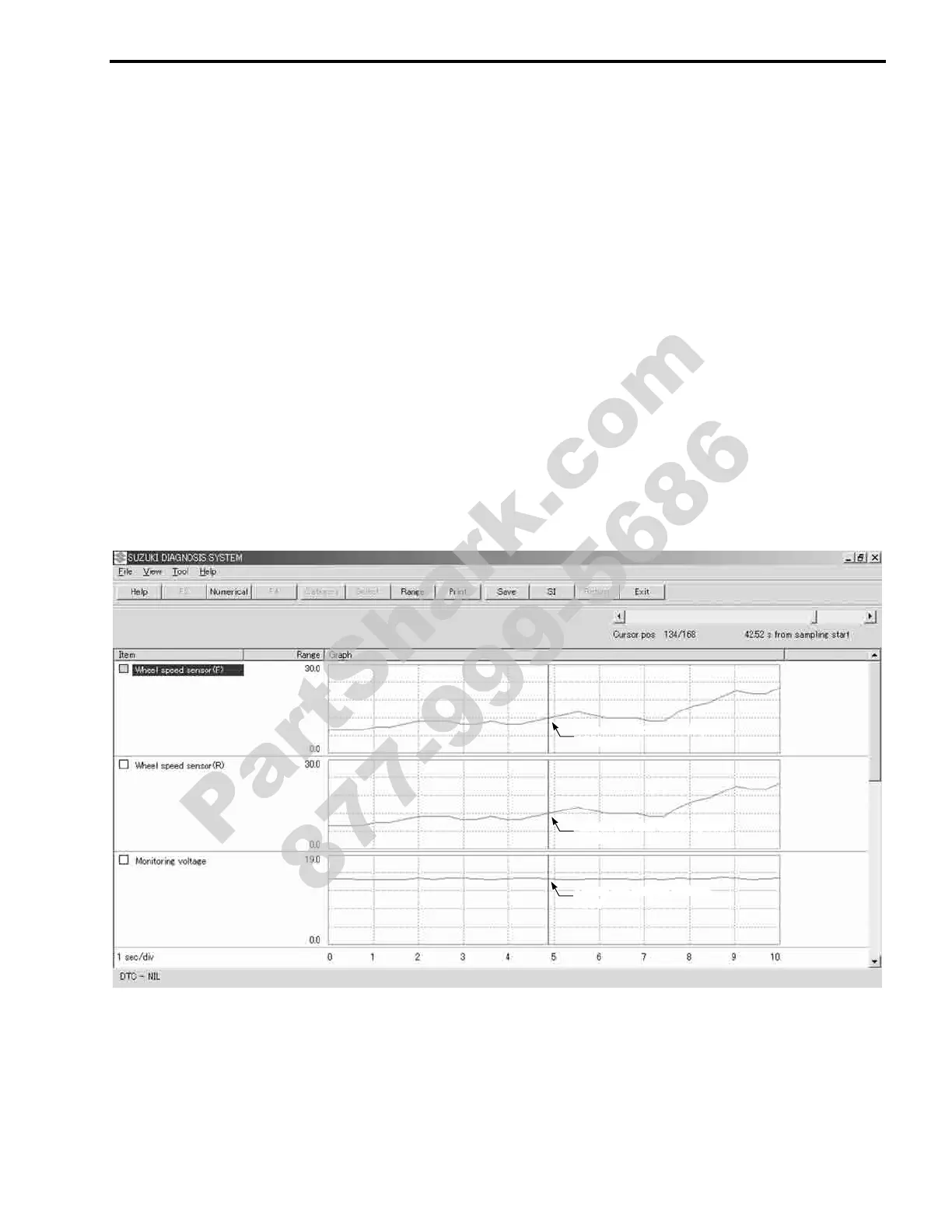

DATA SAMPLED FROM ABS HU SYSTEM
Check the rear wheel speed.
XX
km/h
Check the battery voltage.
XX V
Check the front wheel speed.
XX
km/h
Check the front wheel speed.
XX
km/h
DL650K7/AK7 (’07-MODEL) 13-93
