USE OF SDS DIAGNOSTIC PROCEDURES
* Don’t disconnect couplers from ABS HU, the battery cable
from the battery, ABS HU ground wire harness from the
engine or main fuse before confirming the malfunction code
(self-diagnostic trouble code) stored in memory. Such discon-
nection will erase the memorized information in ABS HU mem-
ory.
* DTC stored in ABS HU memory can be checked by the SDS.
* Be sure to read “CAUTIONS IN SERVICING” (!Page 72)
before inspection and observe what is written there.
• Remove the seat. (!DL650K4 7-4)
• Set up the SDS tool. (Refer to the SDS operation manual for
further details)
• Read the DTC (Diagnostic Trouble Code) and show data
when trouble (displaying data at the time of DTC) according to
instructions displayed on SDS.
• Not only is SDS used for detecting Diagnostic Trouble Codes
but also for reproducing and checking on screen the failure
condition as described by customers using the trigger.
• How to use trigger. (Refer to the SDS operation manual for
further details.)

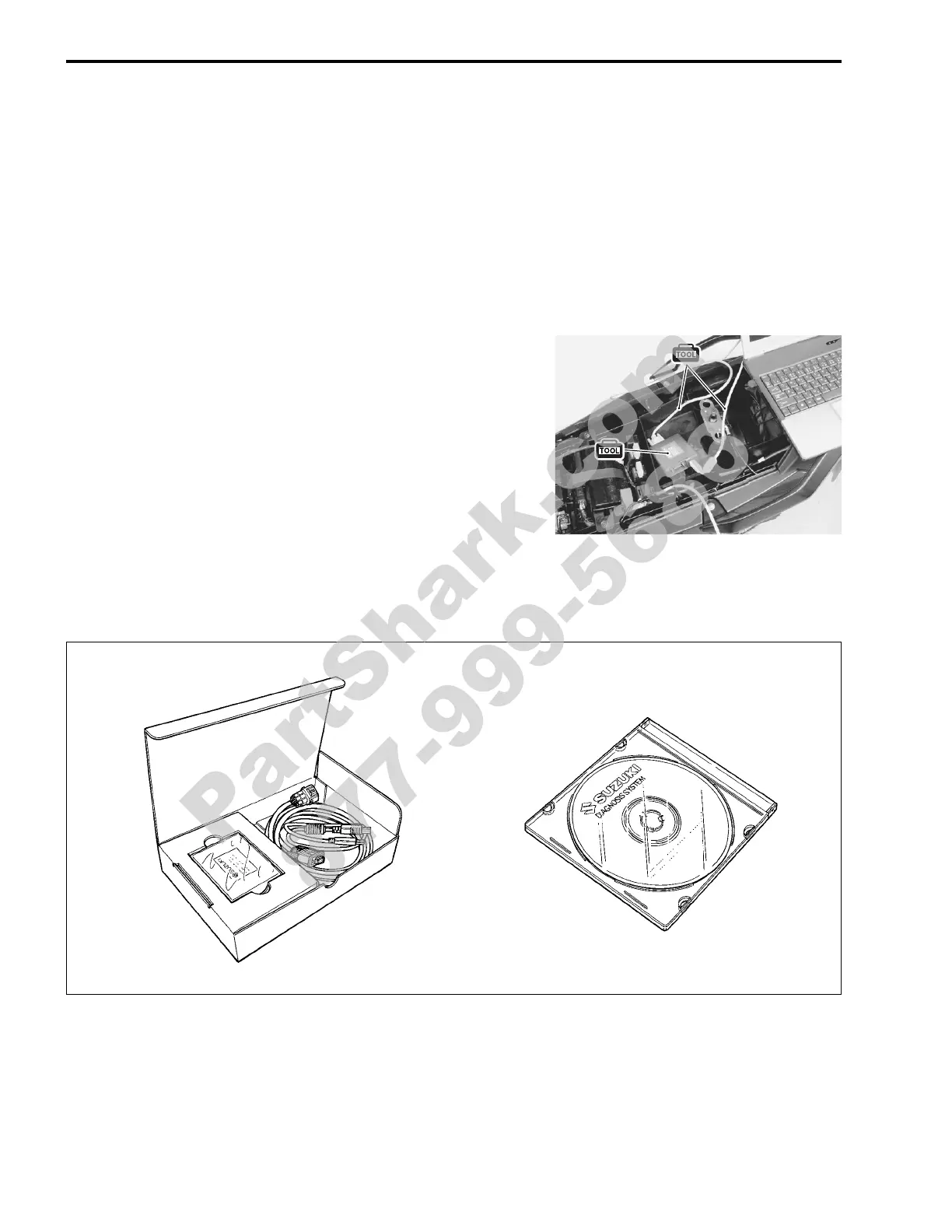

# 09904-41010: SDS set tool
99565-01010-008: CD-ROM Ver. 8
