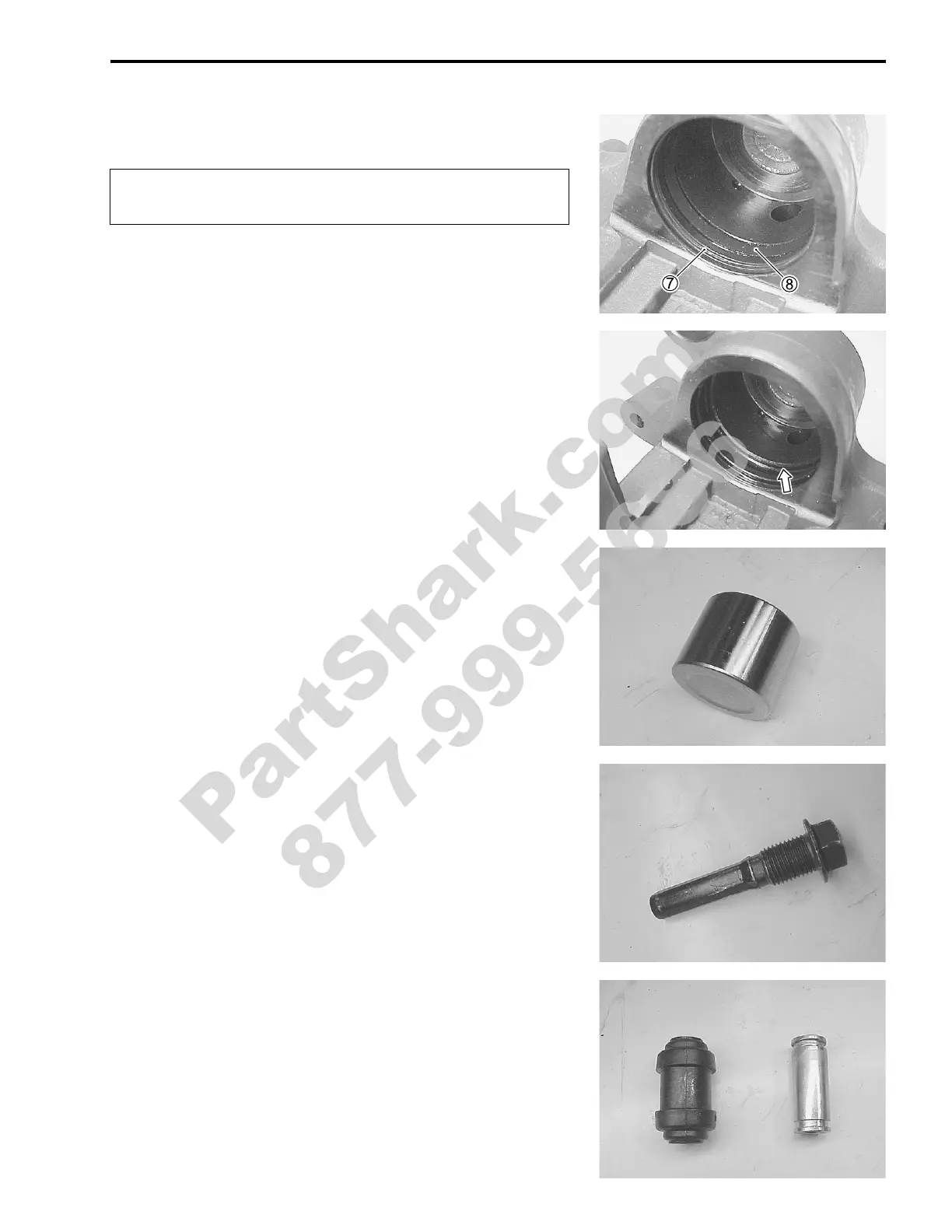

CHASSIS 7-73
• Remove the dust seal

7 and piston seal

8.
#
CALIPER INSPECTION
BRAKE CALIPER
Inspect the brake caliper cylinder wall for nicks, scratches and
other damage. If any damage is found, replace the caliper with a
new one.
BRAKE CALIPER PISTON
Inspect the brake caliper piston surface for any scratches and
other damage. If any damage is found, replace the caliper piston
with a new one.
BRAKE CALIPER SLIDING PIN
Inspect the brake caliper sliding pin for wear and other damage.
If any damage is found, replace the brake caliper sliding pin with
a new one.
Inspect the boot and spacer for damage and wear. If any dam-
age is found, replace boot and spacer with the new ones.
Do not reuse the dust seal and piston seal to prevent
fluid leakage.
