7-48 CHASSIS
SUSPENSION SETTING
After installing the rear suspension, adjust the spring pre-load
and damping force as follows.

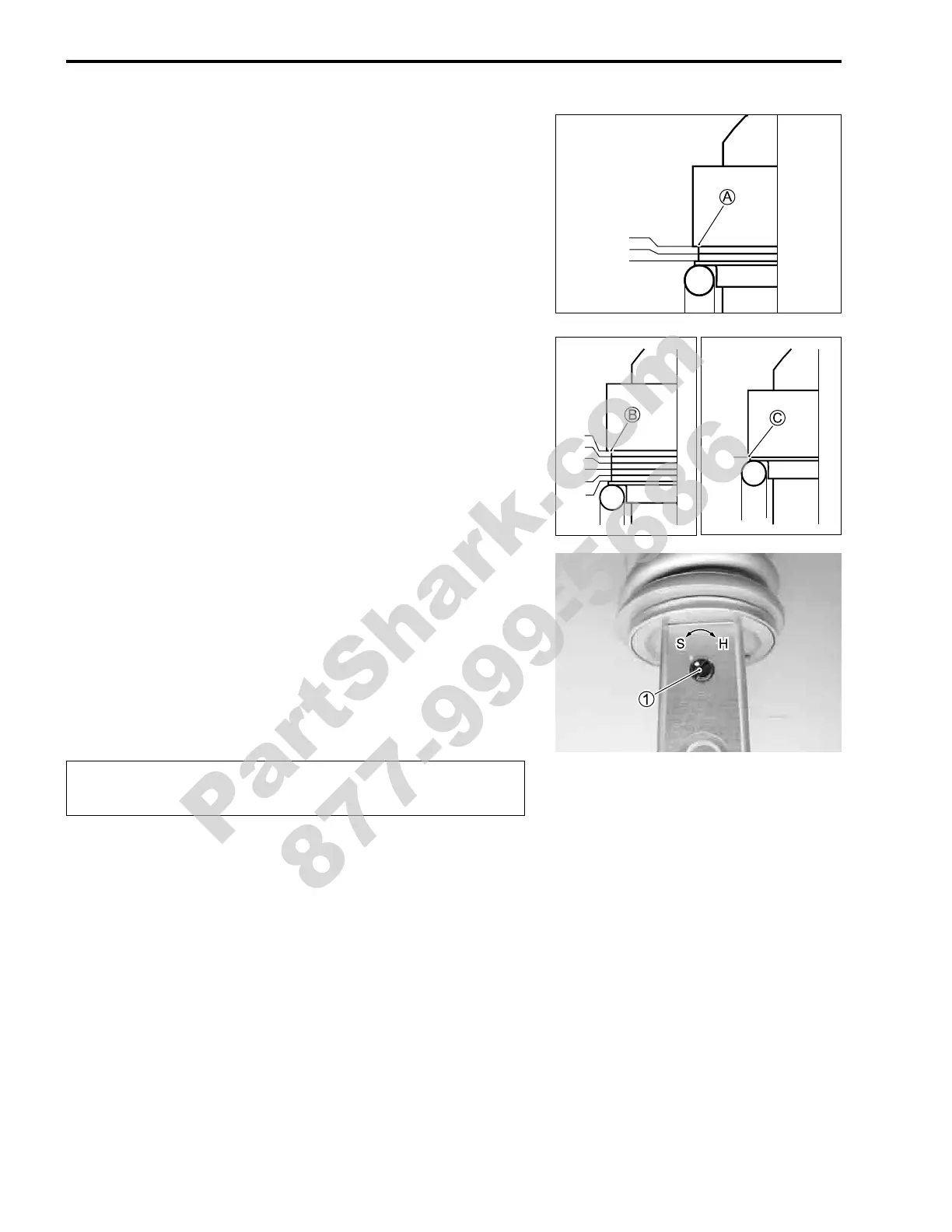

SPRING PRE-LOAD ADJUSTMENT
The pre-load is adjusted by turning the pre-load adjuster knob
without tool.
Position “0” provides the softest spring pre-load.
Position “5” provides the stiffest spring pre-load.
STD position: “2”
A STD position
B Stiffest position
C Softest position
DAMPING FORCE ADJUSTMENT
The rebound damping force is adjusted by turning the adjuster.
Fully turn the damping adjuster
1 clockwise. It is at stiffest posi-
tion and turn it out to standard setting position.
STD position: 1 turn back from stiffest position
(E-02, 19, 24)
1 1/2 turns back from stiffest position
(E-03, 28, 33)
#
2
0
1
0
2
1
3
4
5
0
Do not turn the adjuster more than the given position
or the adjuster may be damaged.
