CHASSIS 7-17

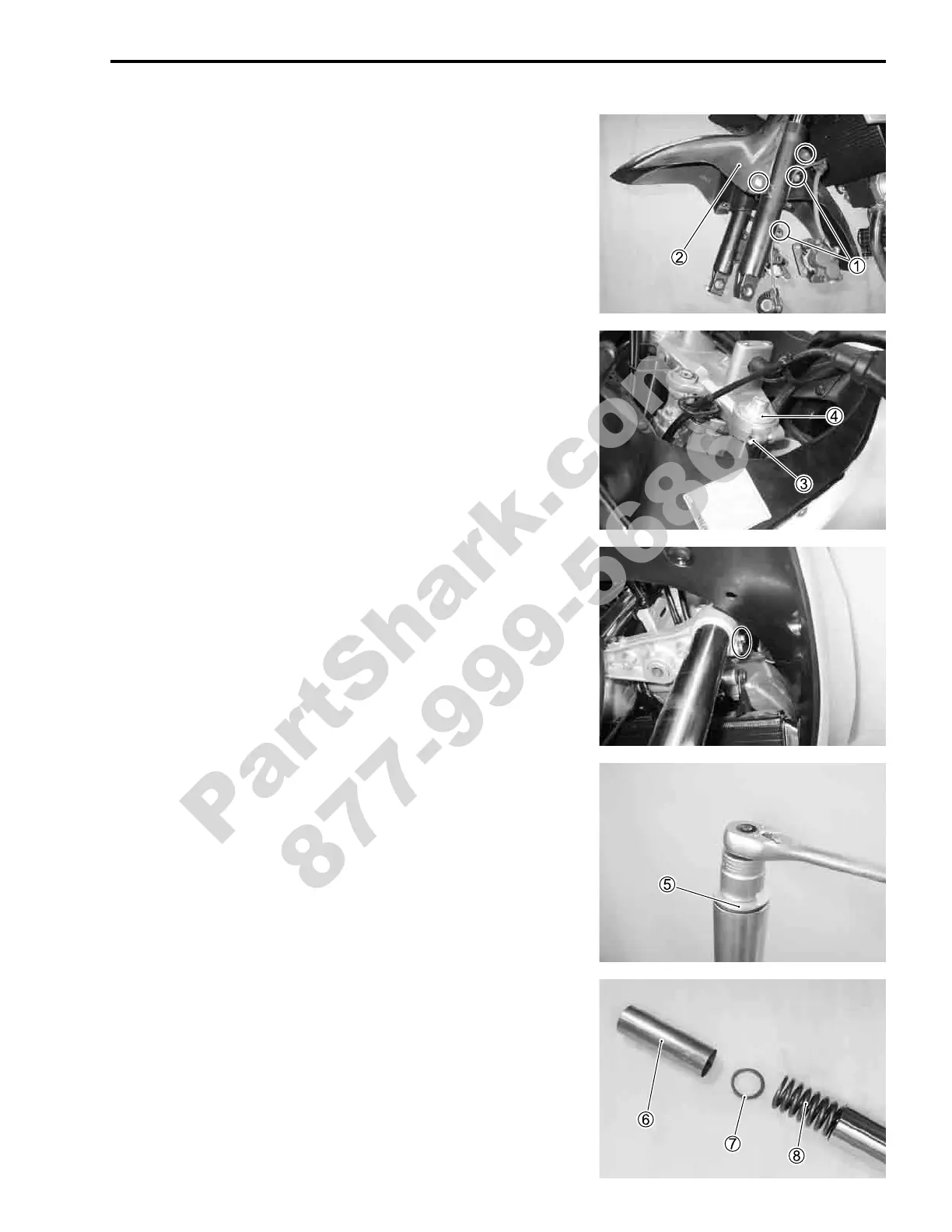

REMOVAL AND DISASSEMBLY
• Remove the front wheel. ("7-10)
• Remove the speedometer lead wire mounting bolts

1.
• Remove the front fender bolts and brake hose bolts.
• Remove the front fender

2.
• Loosen the front fork upper clamp bolts

3.
NOTE:
Slightly loosen the front fork cap bolts

4
before loosening the
lower clamp bolts to facilitate later disassembly.
• Loosen the front fork lower clamp bolts.
NOTE:
Hold the front fork by the hand to prevent sliding out of the steer-
ing stem.
• Remove the front fork.
• Remove the front fork cap bolt

5.
• Remove the spacer

6, washer

7 and spring

8.
