ENGINE 3-19
ENGINE DISASSEMBLY
ENGINE TOP SIDE
#

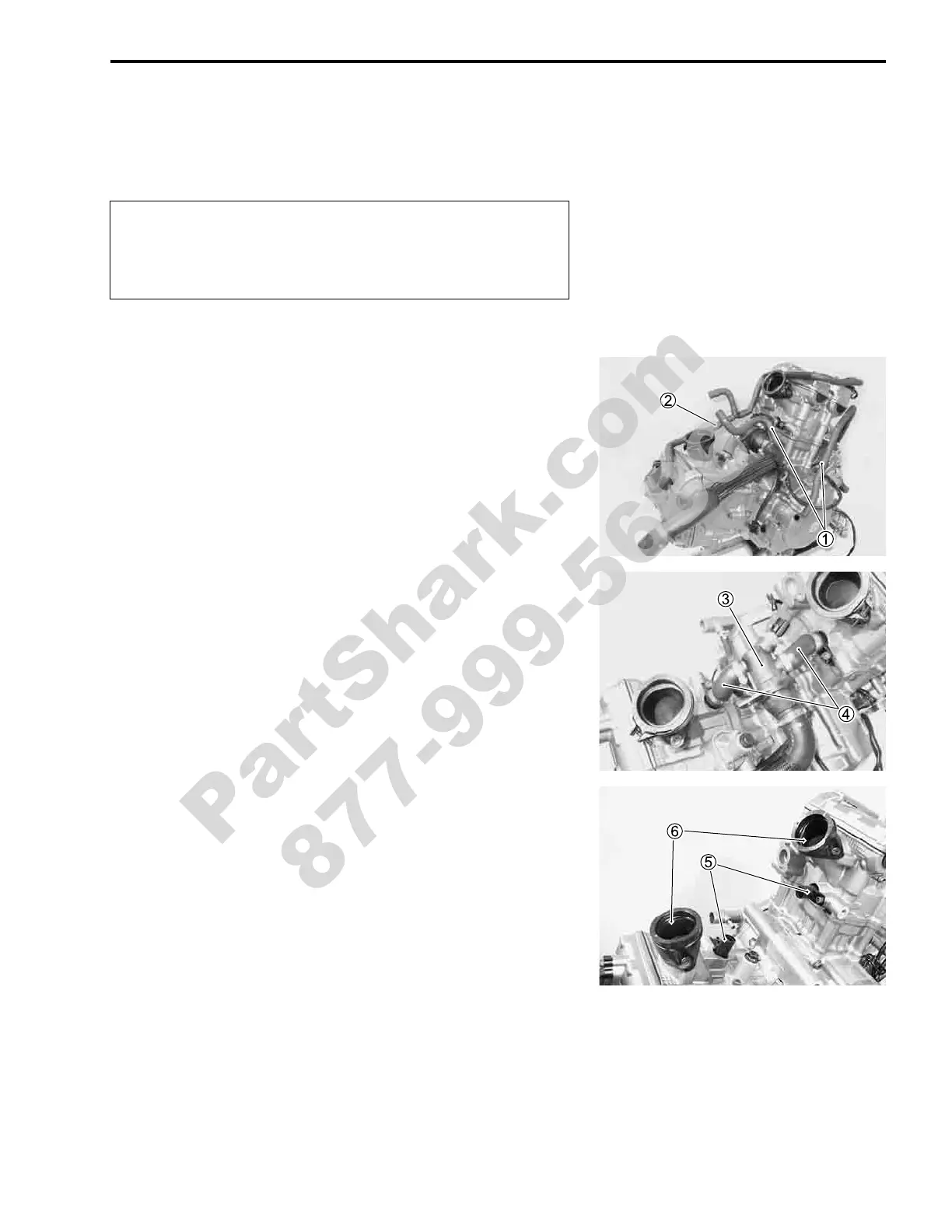

• Remove the spark plugs. (!2-6)
• Disconnect the crankcase breather hoses

1.
• Disconnect the PAIR hoses

2.
• Remove the thermostat case

3 along with the hoses

4.
NOTE:
Refer to the section 6 for their servicing.
• Remove the water unions

5 and intake pipes

6.
Identify the position of each removed part. Organize
the parts in their respective groups (e.g., intake,
exhaust) so that they can be reinstalled in their origi-
nal positions.
