9-18 SERVICING INFORMATION

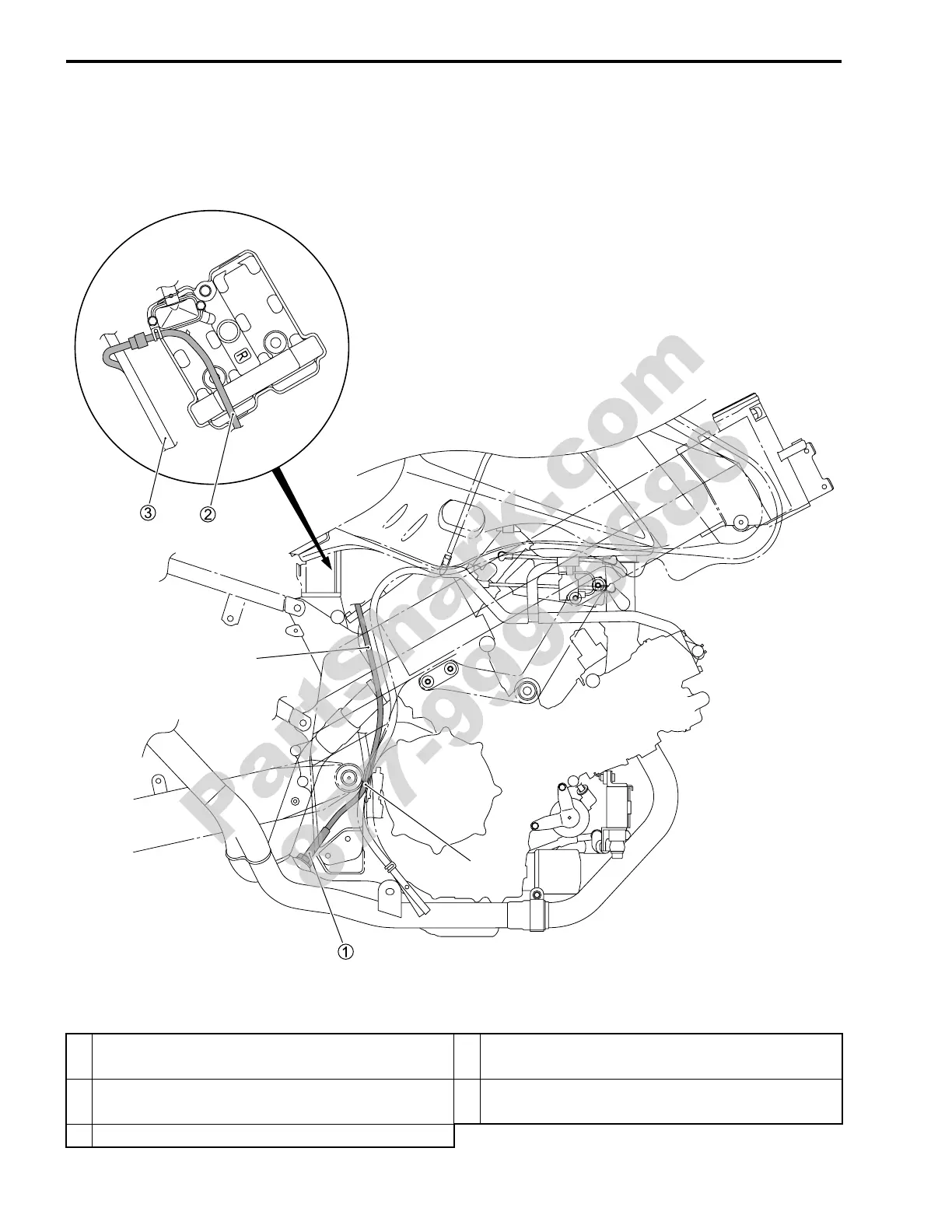

HEATED OXYGEN SENSOR (HO2S) WIRE ROUTING (FOR E-02, 19)
*1
*2

1
HO2 sensor (For E-02, 19)
*1
Route the HO2 sensor lead wire along the fuel
tank drain hose.

2
HO2 sensor lead wire
*2
Pass through the HO2 sensor lead wire forward
the swingarm.

3 Wiring harness
