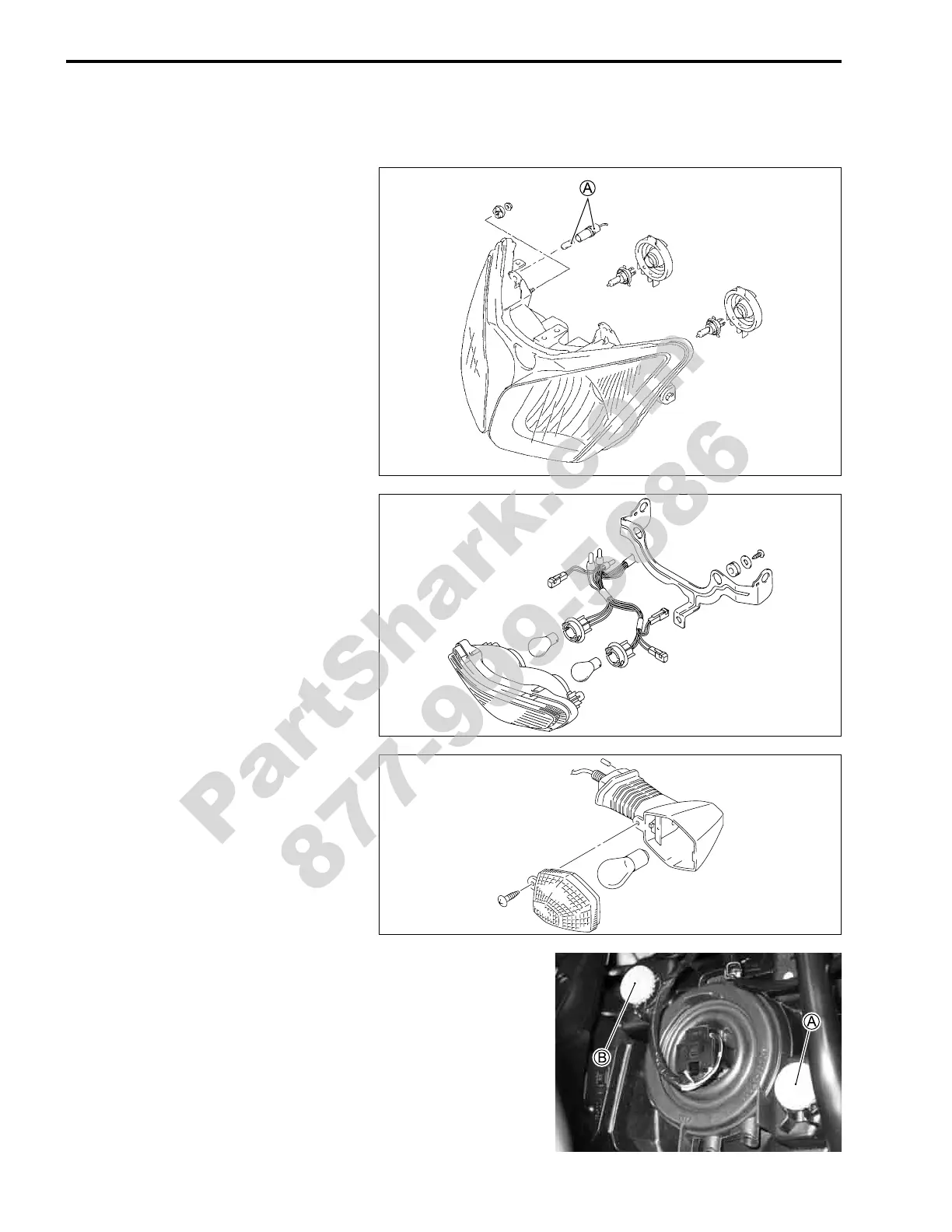

8-36 ELECTRICAL SYSTEM
LAMPS
HEADLIGHT, BRAKE LIGHT/TAILLIGHT AND TURN SIGNAL LIGHT
HEADLIGHT
12 V 60/55 W
12 V 60/55 W + 5 W

A ONLY E-02, 19
BRAKE LIGHT/TAIL LIGHT
12 V 21/5 W
TURN SIGNAL LIGHT
12 V 21 W
HEADLIGHT BEAM ADJUSTMENT
• Adjust the headlight beam, both vertical and horizontal.

A: Vertical adjuster

B: H
orizontal adjuster
NOTE:
To adjust the headlight beam, adjust the beam horizontally first,
then adjust the vertically.
