9-22 SERVICING INFORMATION

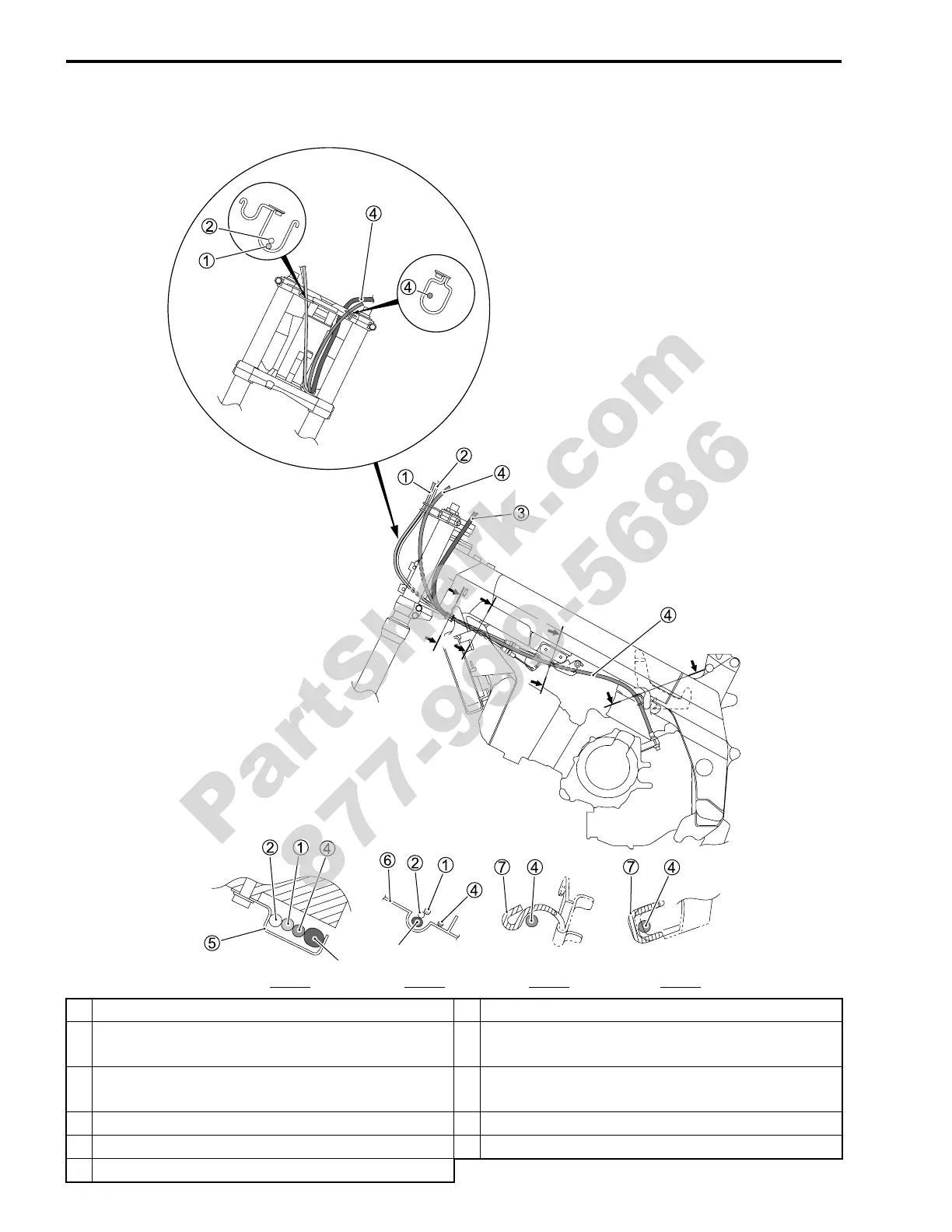

CLUTCH CABLE ROUTING
\
B – B
*2
*1
*3
*4
C – C D – D E – E
B
B
C
C
E
E
D
D

1 Throttle cable (Pull)

7 Reserve tank bracket

2
Throttle cable (Return)
*1
Route left handle switch wiring harness in the
groove of radiator shroud.

3
Handle switch wiring harness
*2
Route left handle switch wiring harness to come
outside throttle and clutch cables.

4 Clutch cable *3 Route clutch cable inside the guide.

5 Throttle cable guide *4 Route clutch cable inside the guide.

6 Radiator shroud
