FUEL SYSTEM AND THROTTLE BODY 5-27

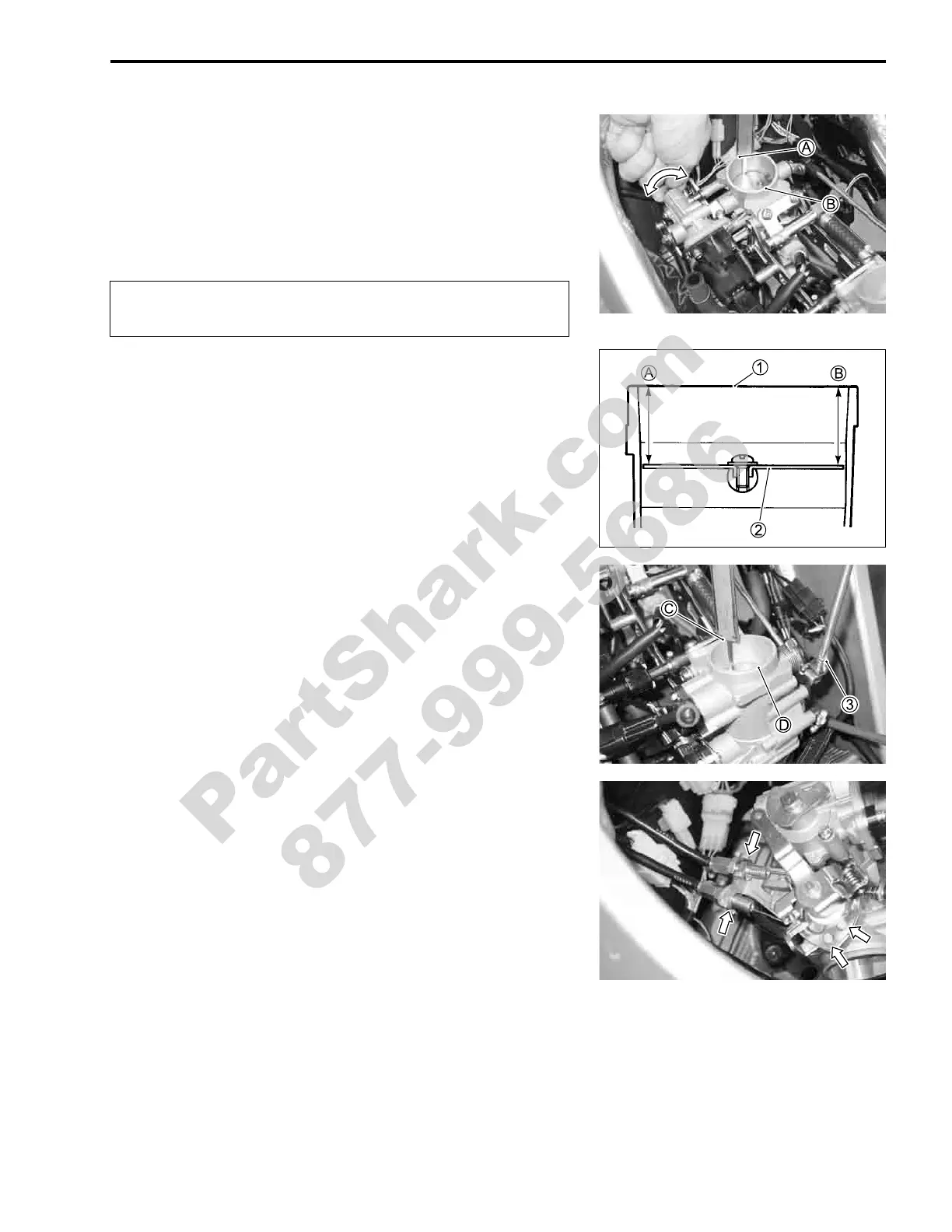

STV SYNCHRONIZATION
• Install the throttle body. (!5-27)
• Turn the ignition switch OFF, if STV synchronization is per-
formed on the vehicle.
• Turn the STVA shaft with a finger so that the throttle valve
height

A will be same as

B.
"
NOTE:
Measure the throttle valve height

A
,

B
from top of the throttle
body

1
to the throttle valve

2
.
• While holding above No.1 STV position, turn the adjust screw

3 so that the throttle valve height

C will be same as

D.
THROTTLE BODY INSTALLATION
Installation is in the reverse order of removal. Pay attention to
the following points:
• Connect the throttle pulling cable and throttle returning cable
to the throttle cable drum.
Do not use the tool for turning the STVA shaft to pre-
vent breakdown.
