ENGINE 3-79
STARTER CLUTCH
INSPECTION

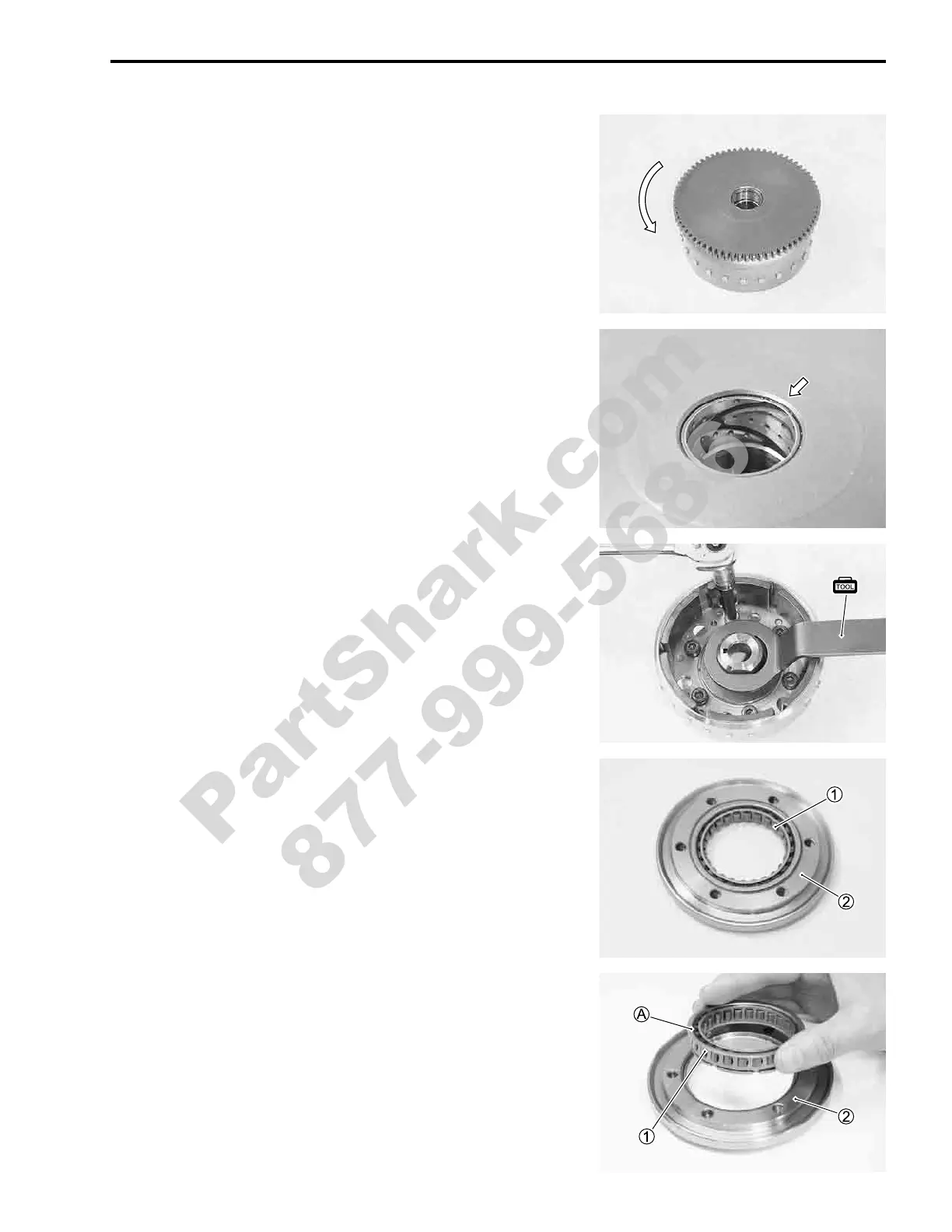

Install the starter driven gear onto the starter clutch and turn the
starter driven gear by hand to inspect the starter clutch for a
smooth movement. The gear turns in one direction only. If a
large resistance is felt for rotation, inspect the starter clutch or
the starter clutch contacting surface on the starter driven gear
for wear and damage.
If they are found to be damaged, replace them with new ones.
Inspect the starter driven gear bearing for any damage.
DISASSEMBLY
• Hold the generator rotor with the special tool and remove the
starter clutch bolts.
" 09930-44530: Rotor holder
• Remove the one way clutch

1 from the guide

2.
REASSEMBLY
• When inserting the one-way clutch

1 into the guide

2, fit the
flange

A in the step of the guide

2.
