INTRODUCTION OF ABS (For DL650A)

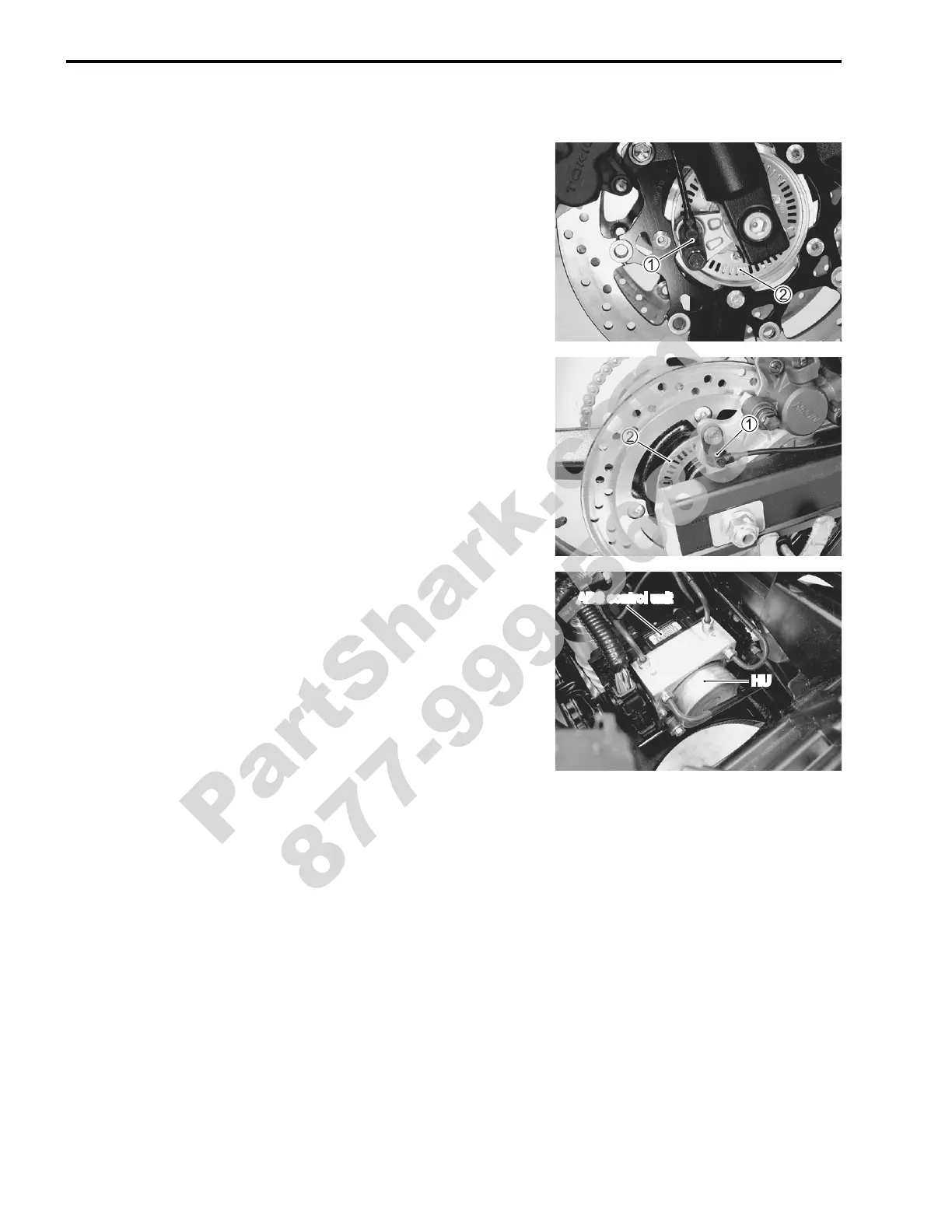

FRONT AND REAR WHEEL SPEED

SENSORS

Wheel speed sensor consists of wheel speed sensor 1 and

sensor rotor 2.

ABS CONTROL UNIT

ABS control unit calculates signals input from each one of front

and rear wheel speed sensors, monitors the slipping conditions

of the wheels and, at the same time, sends control signal to

Hydraulic Unit (HU).

This ABS control unit/HU can not be disassembled.

ABS control unit

13-68 DL650K7/AK7 (’07-MODEL)
