ELECTRICAL SYSTEM 8-5

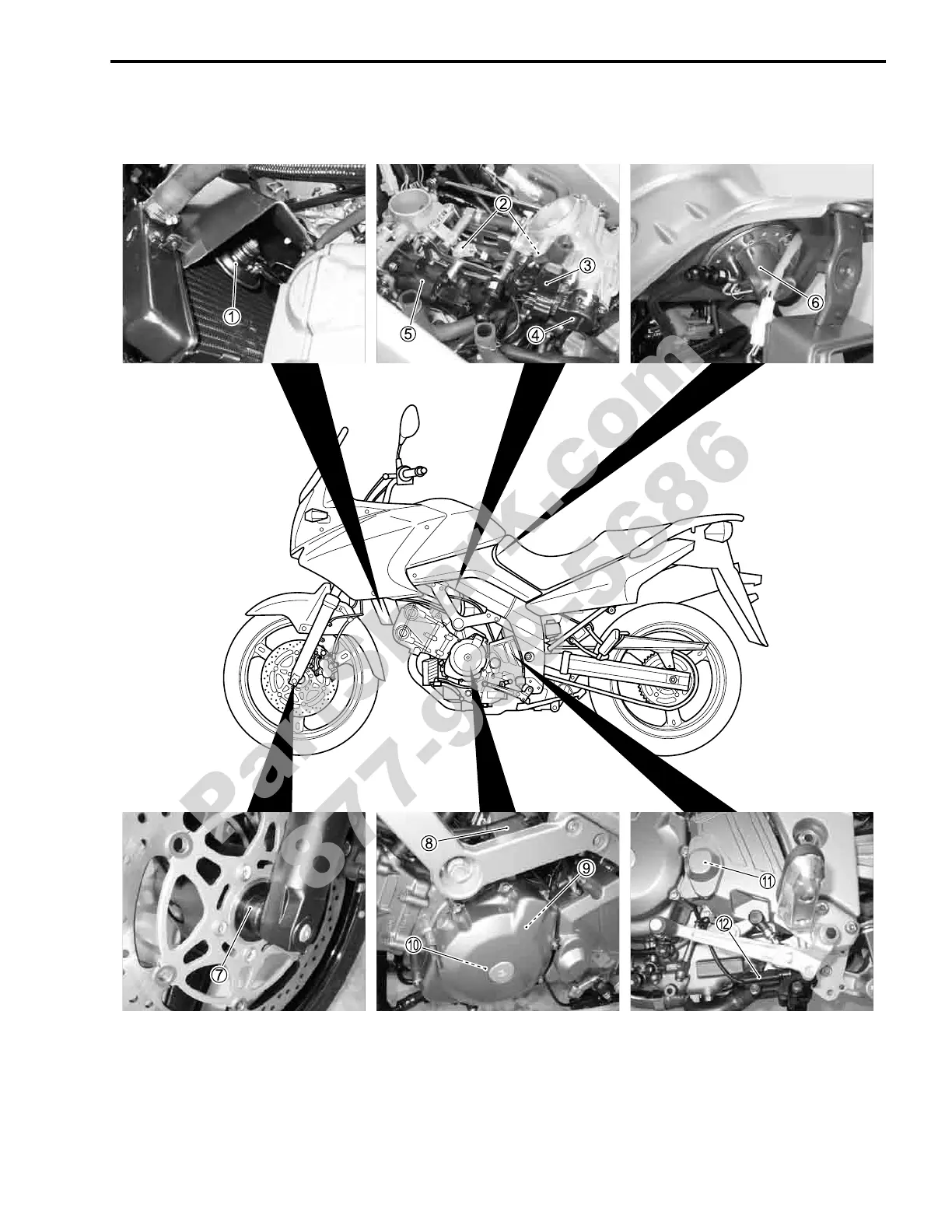

LOCATION OF ELECTRICAL COMPONENTS

1 Horn

2 Fuel injector (!4-42)

3 STP sensor (!4-38)

4 TP sensor (!4-28)

5 STV actuator (!4-37)

6 Fuel pump (!5-9)

7 Speed sensor (!8-35)

8 Ignition coil (No.1)

9 CKP sensor (!4-23)

0 Generator (! 8-10)

A Gear position switch (!8-20)

B Side-stand switch (!8-20)
