ELECTRICAL SYSTEM 8-19
STARTER RELAY INSPECTION

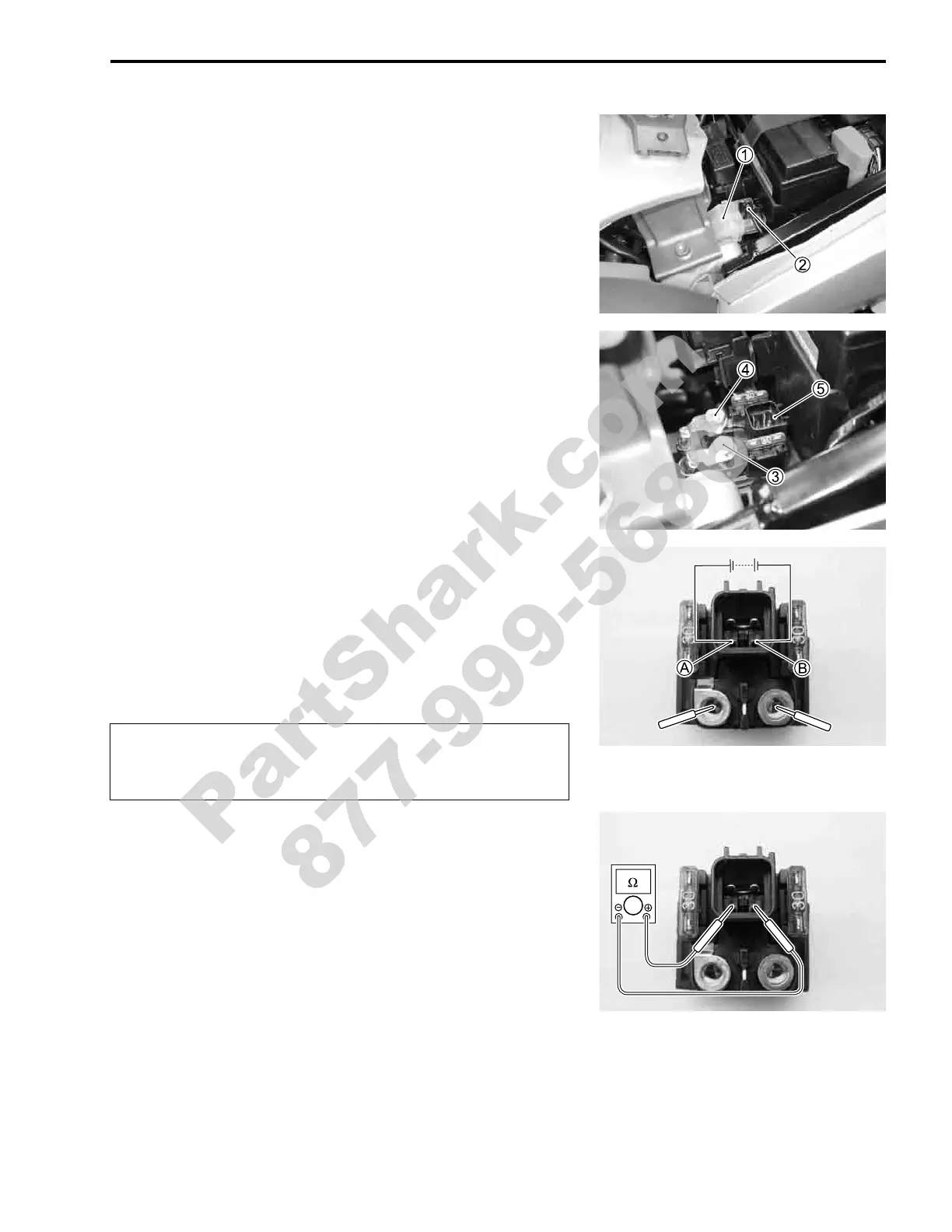

• Remove the seat. (!7-4)
• Disconnect the battery

- lead wire from the battery.
• Remove the starter relay cover

1.
• Disconnect the starter relay coupler

2.
• Disconnect the starter motor lead wire

3 and battery lead
wire

4.
• Remove the starter relay

5.
Apply 12 V to

A and

B terminals and check for continuity
between the positive and negative terminals using the multi cir-
cuit tester. If the starter relay clicks and continuity is found, the
relay is ok.
# 09900-25008: Multi circuit tester set
+ Tester knob indication: Continuity test (,)
"
Measure the relay coil resistance between the terminals using
the multi circuit tester. If the resistance is not within the specified
value, replace the starter relay with a new one.
# 09900-25008: Multi circuit tester set
( Tester knob indication: Resistance (Ω)
$ Starter relay resistance: 3 – 6 Ω
Do not apply a battery voltage to the starter relay for
five seconds and more, since the relay coil may over-
heat and get damaged.
