10-2 EMISSION CONTROL INFORMATION
EMISSION CONTROL SYSTEMS
FUEL INJECTION SYSTEM
DL650 motorcycles are equipped with a fuel injection system for emission level control.
This fuel injection system is precision designed, manufactured and adjusted to comply with the applicable
emission limits.


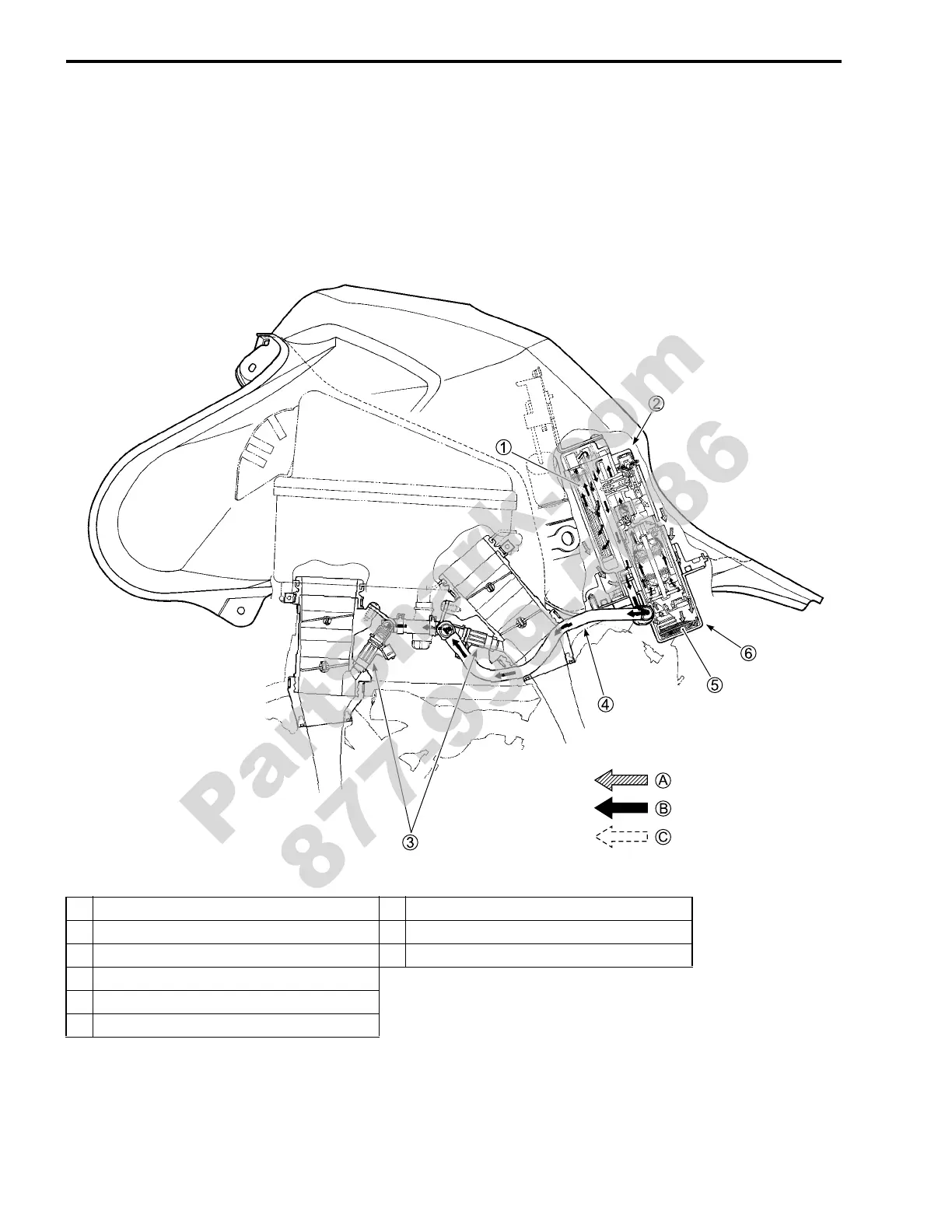

1 Fuel filter (For high pressure)

A BEFORE-PRESSURIZED FUEL

2 Fuel pressure regulator

B PRESSURIZED FUEL

3 Fuel injector

C RELIEVED FUEL

4 Fuel feed hose

5 Fuel mesh filter (For low pressure)

6 Fuel pump
