3-72 ENGINE
TRANSMISSION
COUNTERSHAFT DISASSEMBLY
#

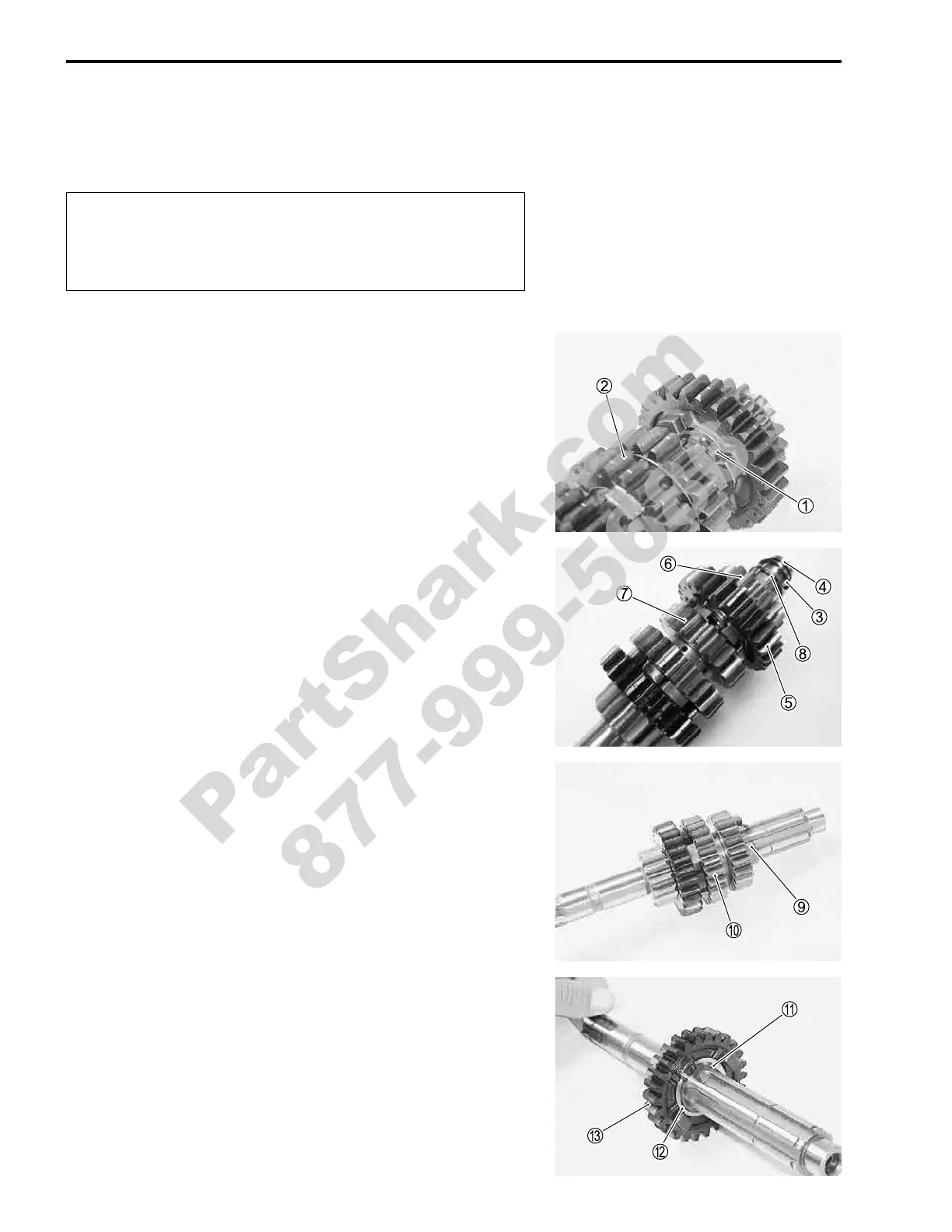

• Remove the 6th drive gear snap ring
1 from its groove and
slide it towards the 3rd/4th drive gears
2.
• Remove the concaved washer
3 and O-ring
4.
• Slide the 6th
5 and 2nd drive gears
6 toward the 3rd/4th
drive gears
7, then remove the 2nd drive gear circlip
8.
• Remove the 2nd drive gear
6, 6th drive gear
5, bushing and
washer.
• Remove the snap ring
9 and 3rd/4th drive gears
0.
• Remove the snap ring
A, washer
B and 5th drive gear
C.
Be sure to identify each removed part as to its loca-
tion, and lay the parts out in groups designated as
“Drive” and “Driven”, so that each will be restored to
the original location during assembly.
