9-24 SERVICING INFORMATION

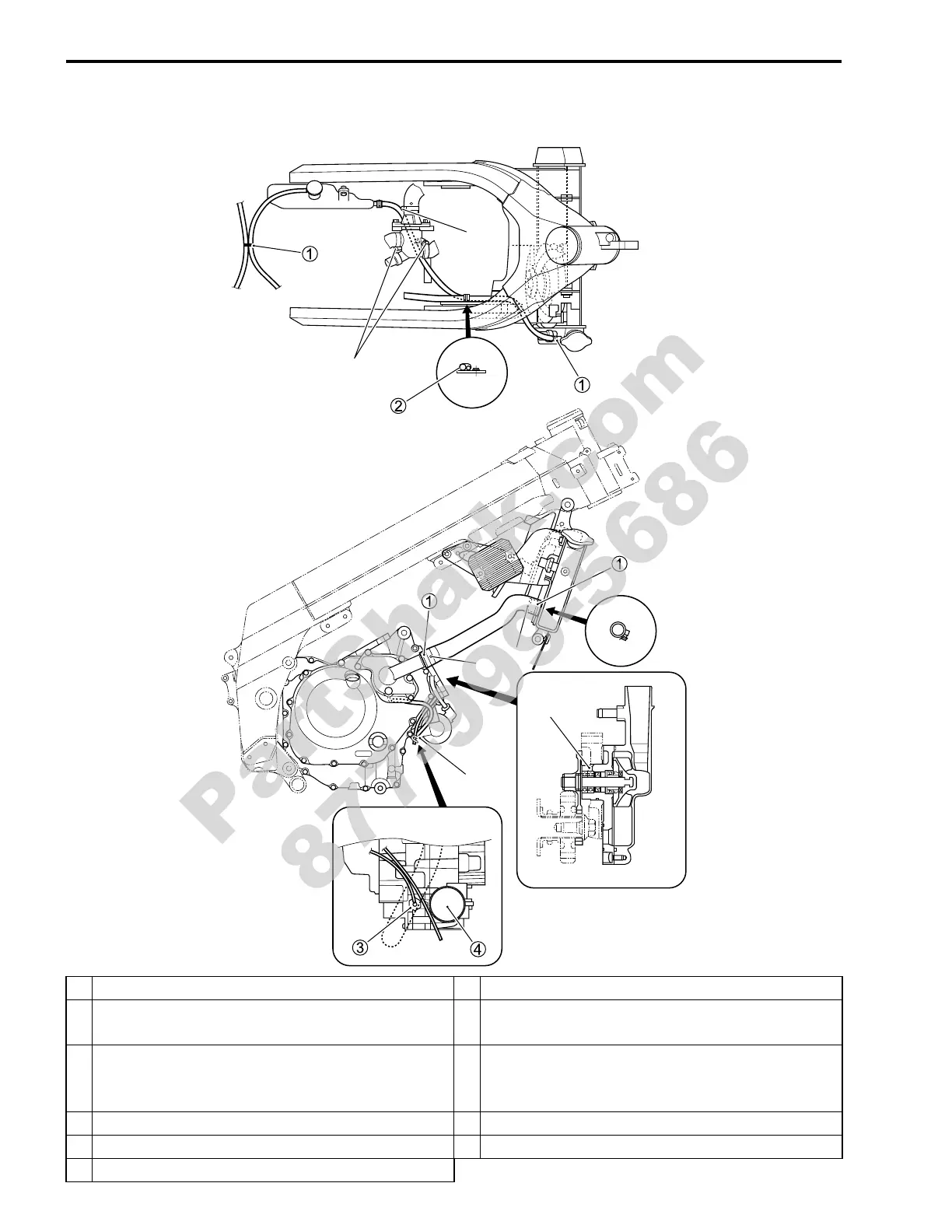

COOLING SYSTEM HOSE ROUTING
\
*1
*6
*6
*3
*2
*7
*7
*4
*5

1 Clamp *3 Matching mark (Yellow)

2
Wiring harness
*4
Clamp the water drain hose and oil pressure
switch lead wire.

3
Oil pressure switch
*5
Fill the bearing with engine oil until engine oil
comes out from the hole of the be bearing hous-
ing.

4 Oil filter *6 Clamp bolt head must face upward.
*1 Clamp end must face downward. *7 Clamp bolt head must face downward.
*2 Matching mark (White)
