9-20 SERVICING INFORMATION

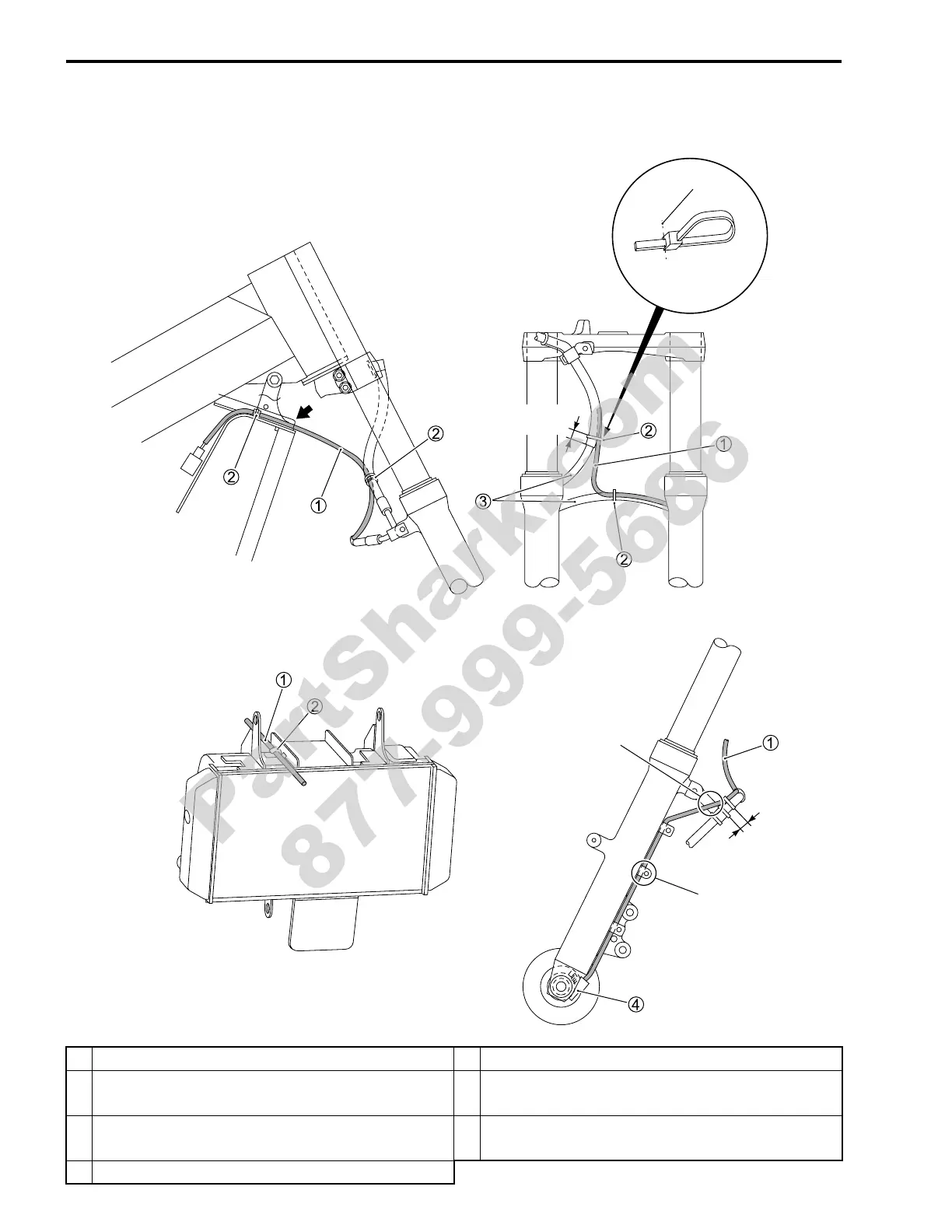

SPEED SENSOR LEAD WIRE ROUTING
20 mm
(0.79 in)
*1
*2
*3
20 mm
(0.79 in)

1 Speed sensor lead wire *1 Cut the clamp end.

2
Clamp
*2
Route speed sensor lead wire to come outside
the brake hose guide.

3
Brake hose
*3
Route speed sensor lead wire on inside of front
fork outer tube boss.

4 Speed sensor
