DL650K7/AK7 (’07-MODEL) 13-89
DTC (Diagnostic Trouble Code) OUTPUT

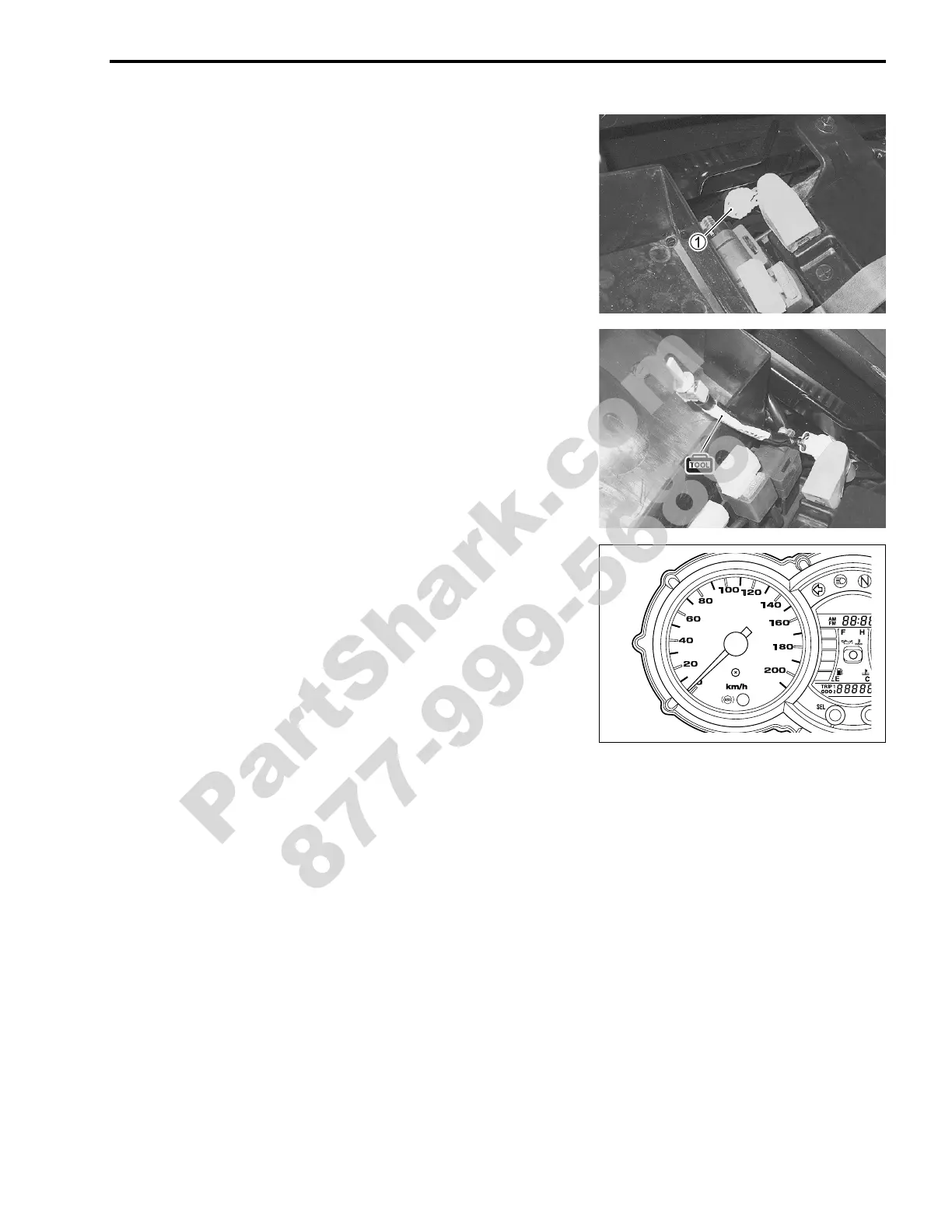

Connect the special tool to the mode select coupler to output the
memorized DTCs on the ABS indicator light.
• Turn the ignition switch to OFF.
• Remove the seat. (7-4)
• Connect the special tool to the mode select coupler

1
(Orange – B/W).
\ 09930-82710: Mode select switch
• Switch the special tool to ON.
• Turn the ignition switch to ON.
The ABS indicator light starts flashing to indicate the DTC.
NOTE:
* If there is a DTC recorded, the ABS indicator light repeatedly
flashes in a cyclic manner. (However, when five minutes have
elapsed from the start of self-diagnosis mode, the output of the
DTC will be interrupted.)
* If no DTC is recorded, the light repeats flashing for 3.6 sec-
onds in a cyclic manner.
* In the case that the mode select switch is turned off or the
vehicle speed (both wheels) exceeds 10 km/h (6.2 mile/h), the
output of DTC will be interrupted.
