7-68 CHASSIS

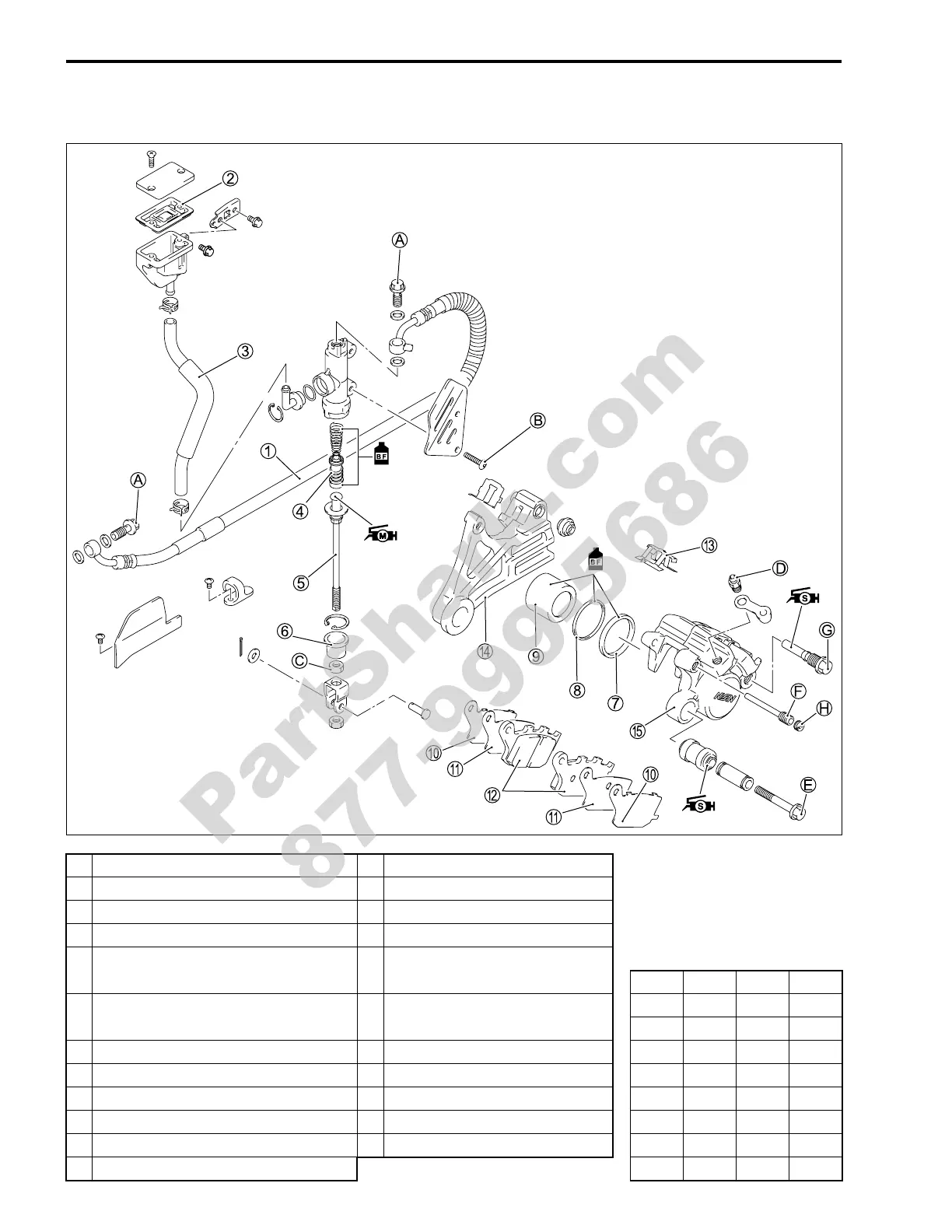

REAR BRAKE
CONSTRUCTION

1 Brake hose

C Brake pad spring

2 Diaphragm

D Caliper bracket

3 Reservoir tank hose

E Caliper

4 Piston/cup set

A Brake hose union bolt

5 Push rod

B
Rear brake master cylinder
mounting bolt
!
ITEM N·m
kgf-m lb-ft

6 Dust boot

C
Rear brake master cylinder
rod lock-nut

A 23 2.3 16.5

B 10 1.0 7.0

7 Piston seal

D Air bleeder valve

C 18 1.8 13.0

8 Dust seal

E Brake caliper mounting bolt

D 60.64.3

9 Piston

F Pad mounting pin

E 22 2.2 16.0

0 Pad shim

G Brake caliper sliding pin

F 17 1.7 12.5

A Pad insulator

H Plug

G 27 2.7 19.5

B Brake pad

H 2.50.251.8
