FUEL SYSTEM AND THROTTLE BODY 5-29

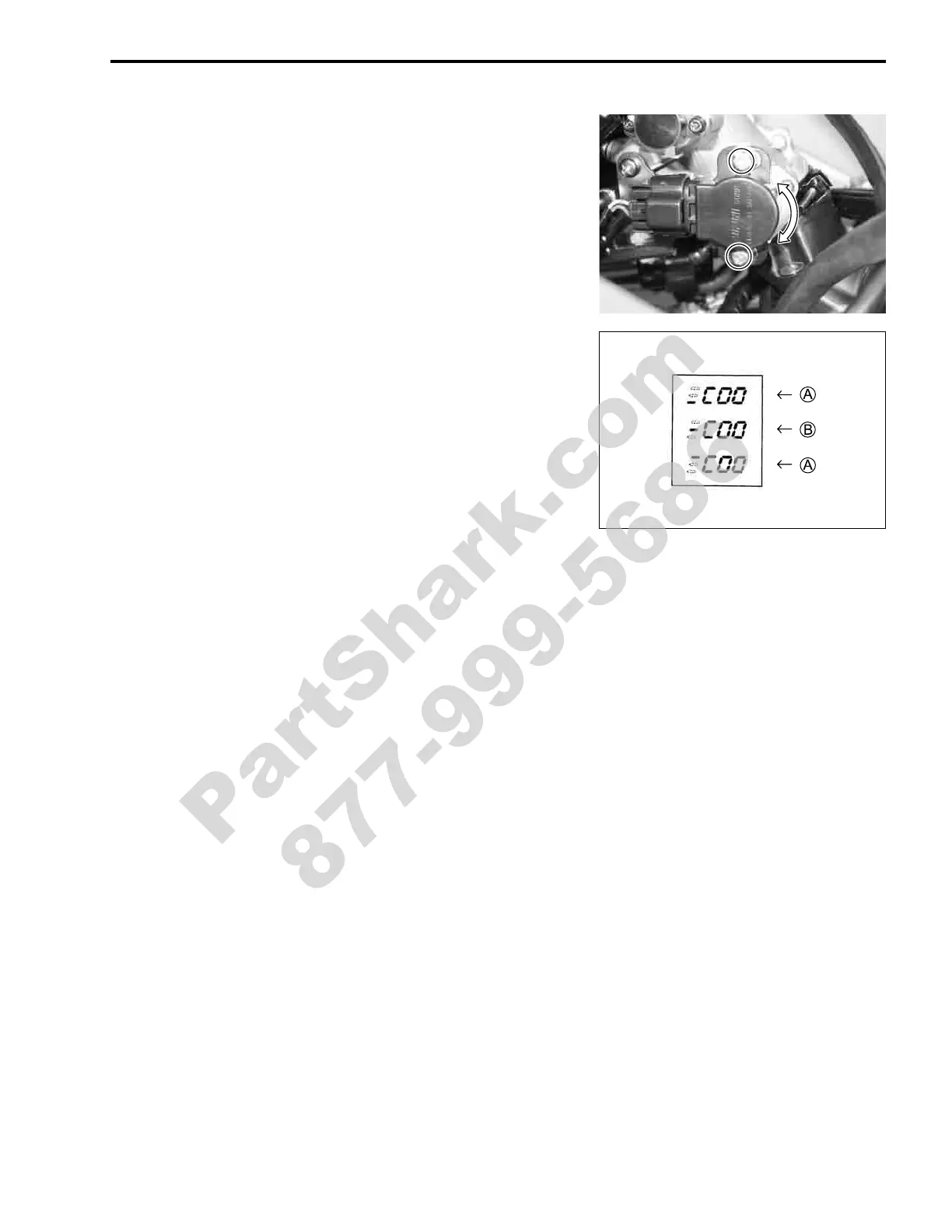

TP SENSOR ADJUSTMENT
After checking or adjusting the throttle valve synchronization,
adjust the TP sensor positioning as follows:
• After warming up engine, adjust the idling speed to 1 300 rpm.
• Stop the warmed-up engine and connect the special tool to
the dealer mode coupler. (!5-20)
$ 09930-82720: Mode select switch
• If the TP sensor adjustment is necessary, loosen the TP sen-
sor mounting screws.
• Turn the TP sensor and bring the line to middle.
• Tighten the TP sensor mounting screws.
$ 09930-11950: Torx wrench
' TP sensor mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lb-ft)

A Incorrect

B Correct position
