5-14 FUEL SYSTEM AND THROTTLE BODY
THROTTLE BODY AND STV ACTUATOR

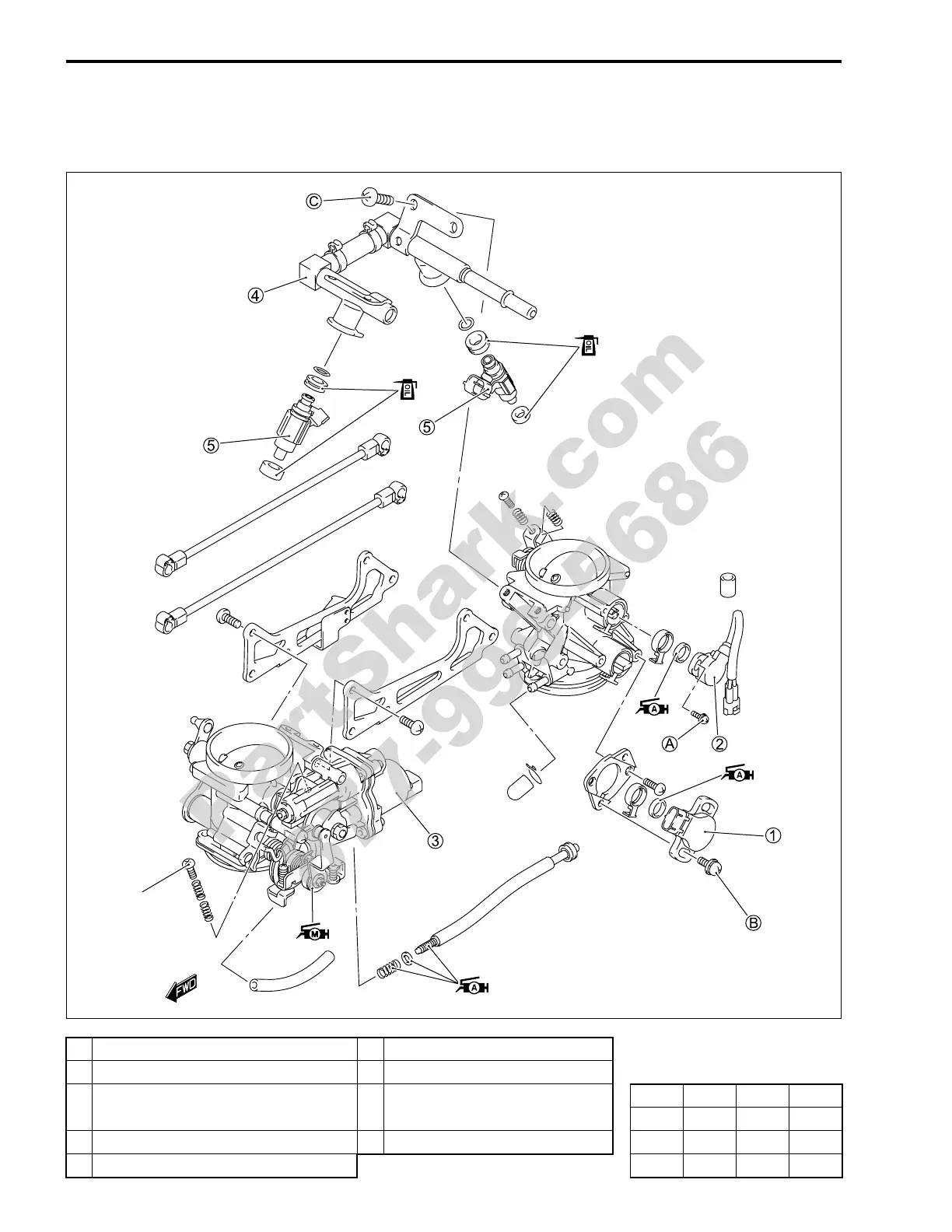

CONSTRUCTION
*1

1 TP sensor

A STP sensor mounting screw

2 STP sensor

B TP sensor mounting screw '

3
STVA

C
Fuel delivery pipe mounting
screw
ITEM N·m
kgf-m lb-ft

A 2.0 0.2 1.5

4 Fuel delivery pipe *1 Do not turn the screw.

B 3.50.352.5

5 Injector

C 5.0 0.5 3.7
