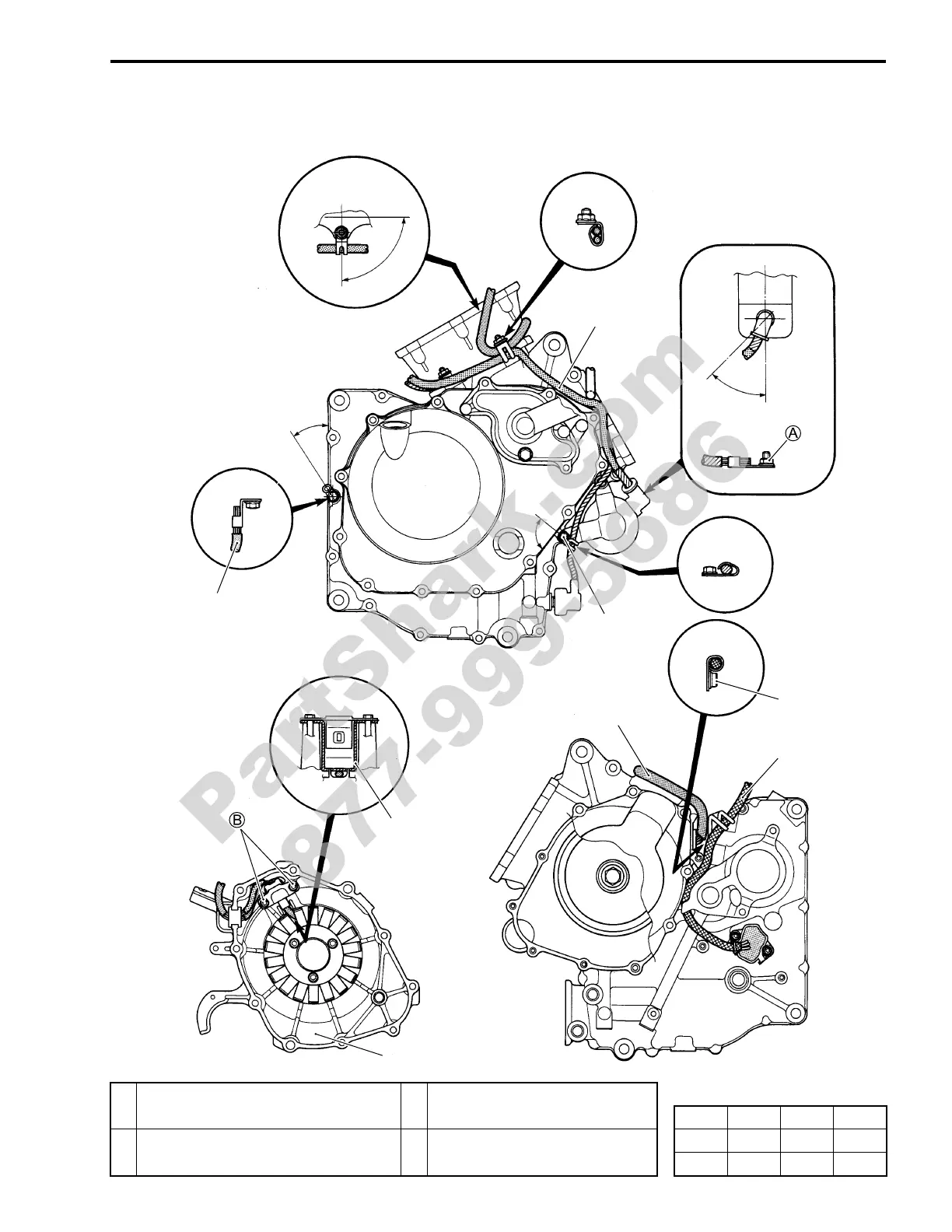

SERVICING INFORMATION 9-19
ENGINE ELECTRICAL PARTS SET-UP
90 Ëš
90 Ëš
*1
*2
Bolt
Gear position
switch lead wire
Generator lead wire
Clamp
Starter motor lead wire
*1
Battery ground lead wire
Generator cover

A
Starter motor lead wire mounting
nut
*1
45 ° and less !
ITEM N·m
kgf-m
lb-ft

B
CKP sensor set bolt
*2
First tighten the starter motor
lower mounting bolt.

A 6.0 0.6 4.3

B 6.5 0.65 4.7
