Xerox VersaLink B7025 Service Manual

April 2017
6-34
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
GP 31
Launch Issue
General Procedures and Information
GP 31 Print/Copy Orientation Definitions
Purpose
To describe the print/copy orientation definitions.
Definitions
Refer to Figure 1. Be aware of the points that follow:
• Inboard edge - can also be described as the top edge or side edge.
• In process direction - can also be described as the slow scan direction.
• Cross process direction - can also be described as the fast scan direction.

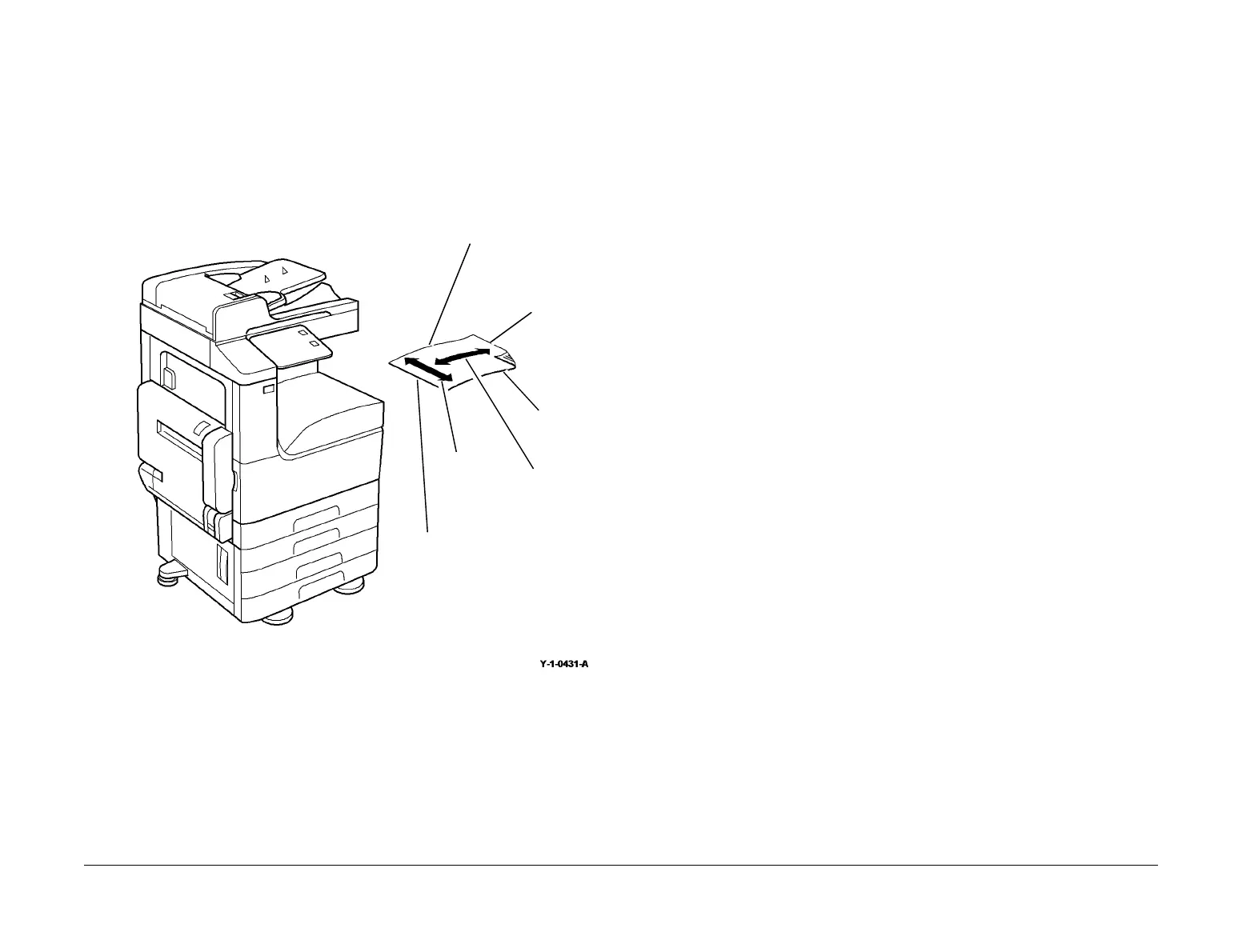

Figure 1 Print/copy orientation definitions
Lead edge
Inboard
edge
In process
direction
Cross
process
direction
Outboard
edge
Trail edge
