Xerox VersaLink B7025 Service Manual

April 2017
4-222
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 90.6
Launch Issue
Repairs and Adjustments
REP 90.6 AC Housing Assembly
Parts List on PL 90.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the drum cartridge, REP 90.4.
2. Remove the front cover, REP 28.1.
3. Remove the inner cover, REP 28.2.
4. Remove the print head assembly, REP 60.8.

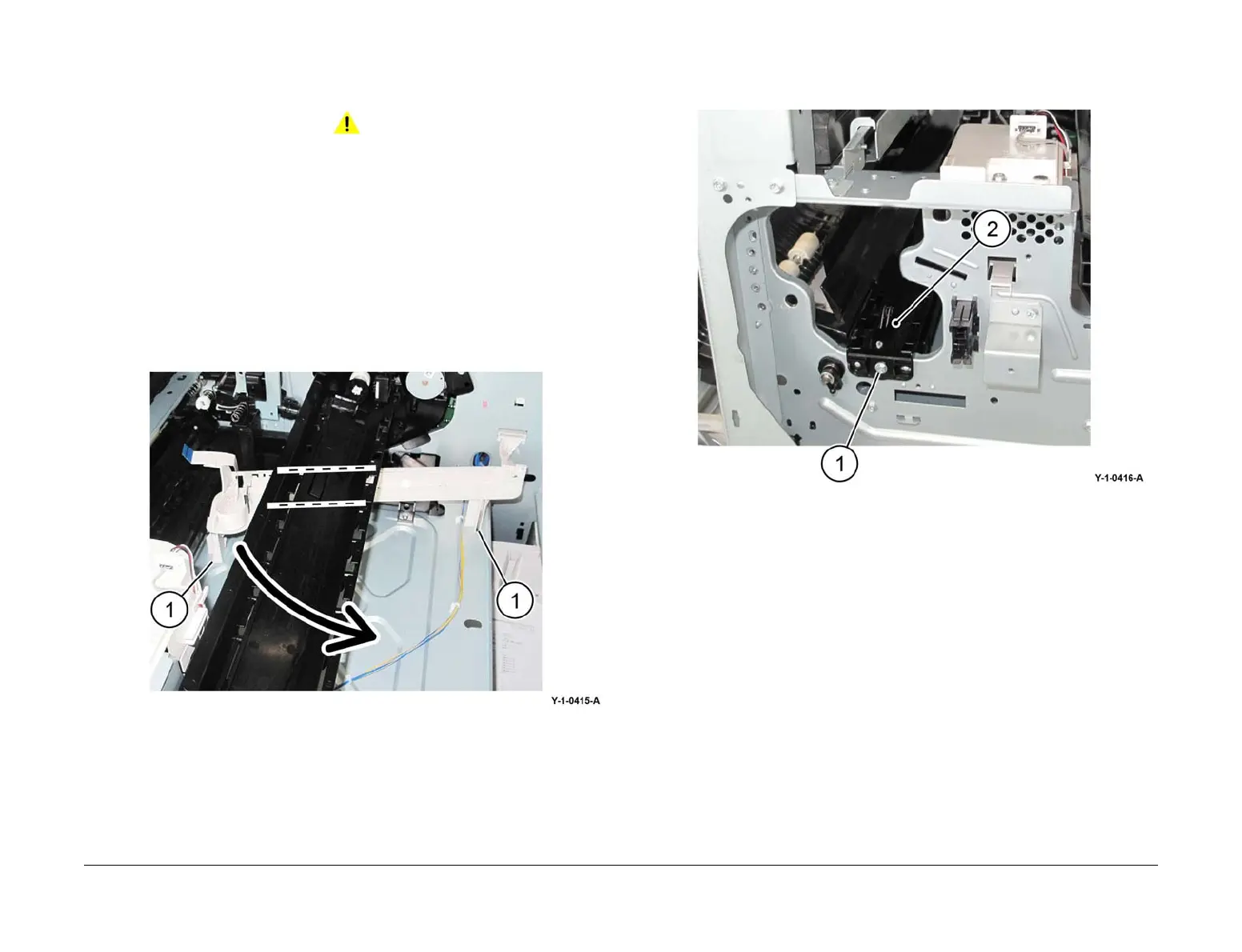

5. Move the harness assembly, Figure 1:
a. Disengage the hooks (1).
b. Move the harness assembly in the direction of the arrow.
Figure 1 Harness assembly
6. Remove the lower guide assembly, Figure 2:
a. Remove the screw (1).
b. Remove the lower guide assembly (2).
Figure 2 Lower guide assembly removal
