Xerox VersaLink B7025 Service Manual

April 2017
5-64
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 28.06
Launch Issue
Parts Lists

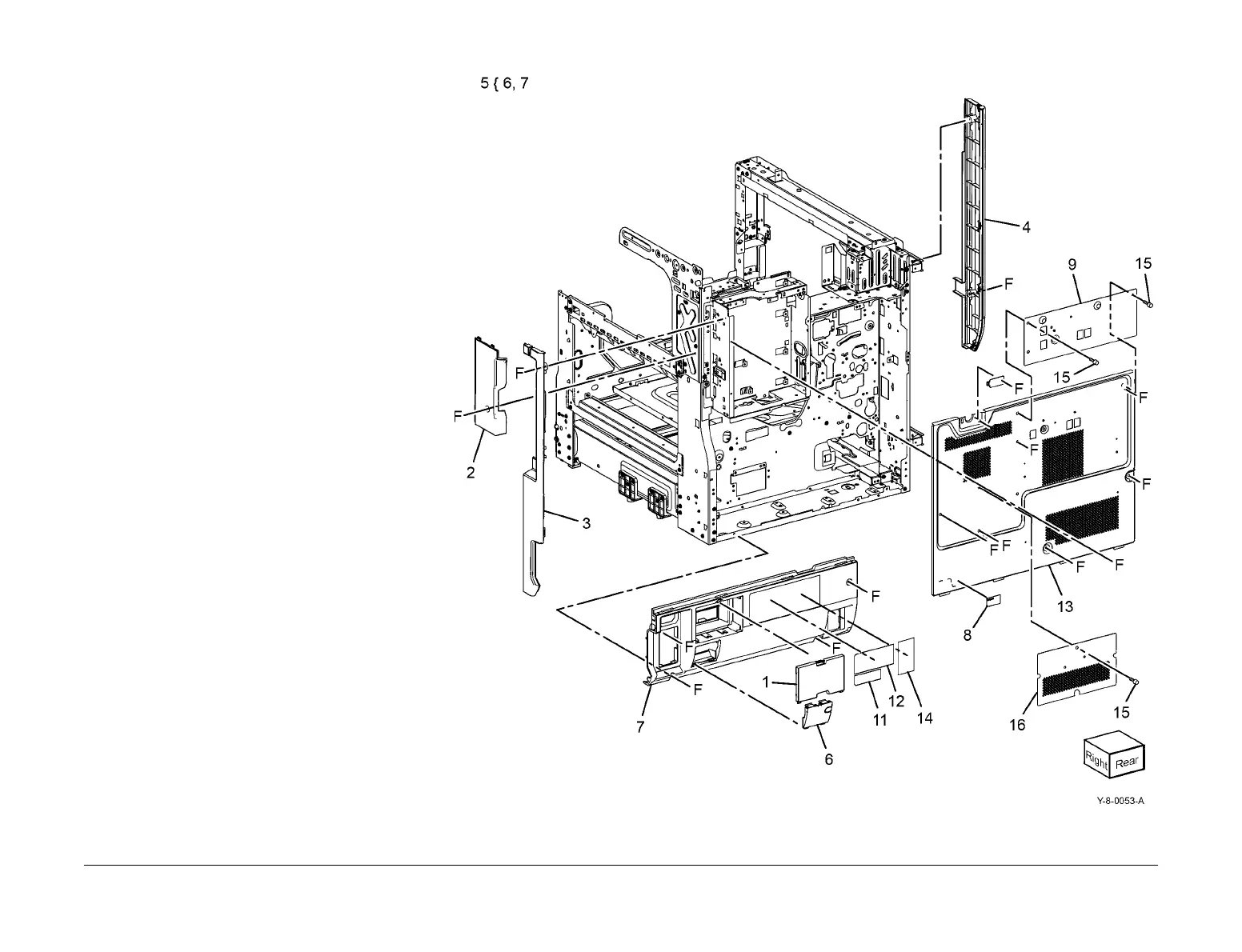

PL 28.06 Covers (2 of 2)
Item Part Description
1 – STM cover (Not Spared)
2 – RH top cover (Not Spared)
3 – RH rear cover (Not Spared)
4 – LH rear cover (Not Spared)
5 – Lower rear cover assembly (Not
Spared) (REP 28.6)
6 – Infill cover (P/O PL 28.06 Item 5)
7 – Lower rear cover (P/O PL 28.06
Item 5) (REP 28.6)
8 – Outlet label (Not Spared)
9 – Fax cover (Not Spared)
10 – Not used
11 – Earth label (Not Spared)
12 – Data plate (Not Spared)
13 – Upper rear cover (P/O PL 28.06
Item 15) (REP 28.5)
14 – Label-PTT (Not Spared)
15 826E14330 Thumbscrew
16 – HDD cover (Not Spared)
