Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.15, REP 80.16
Repairs and Adjustments
Launch Issue
REP 80.15 Tray 2 Feed/Retard/Nudger Roll (STM)
Parts List on PL 80.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out tray 1 and tray 2. Remove the paper.
2. Remove tray 1 and tray 2.
3. Open the left cover assembly, PL 70.25 Item 2.
4. Remove the tray 2 feed, retard and nudger rolls (1TM), Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 2 feed, retard and nudger rolls (2).

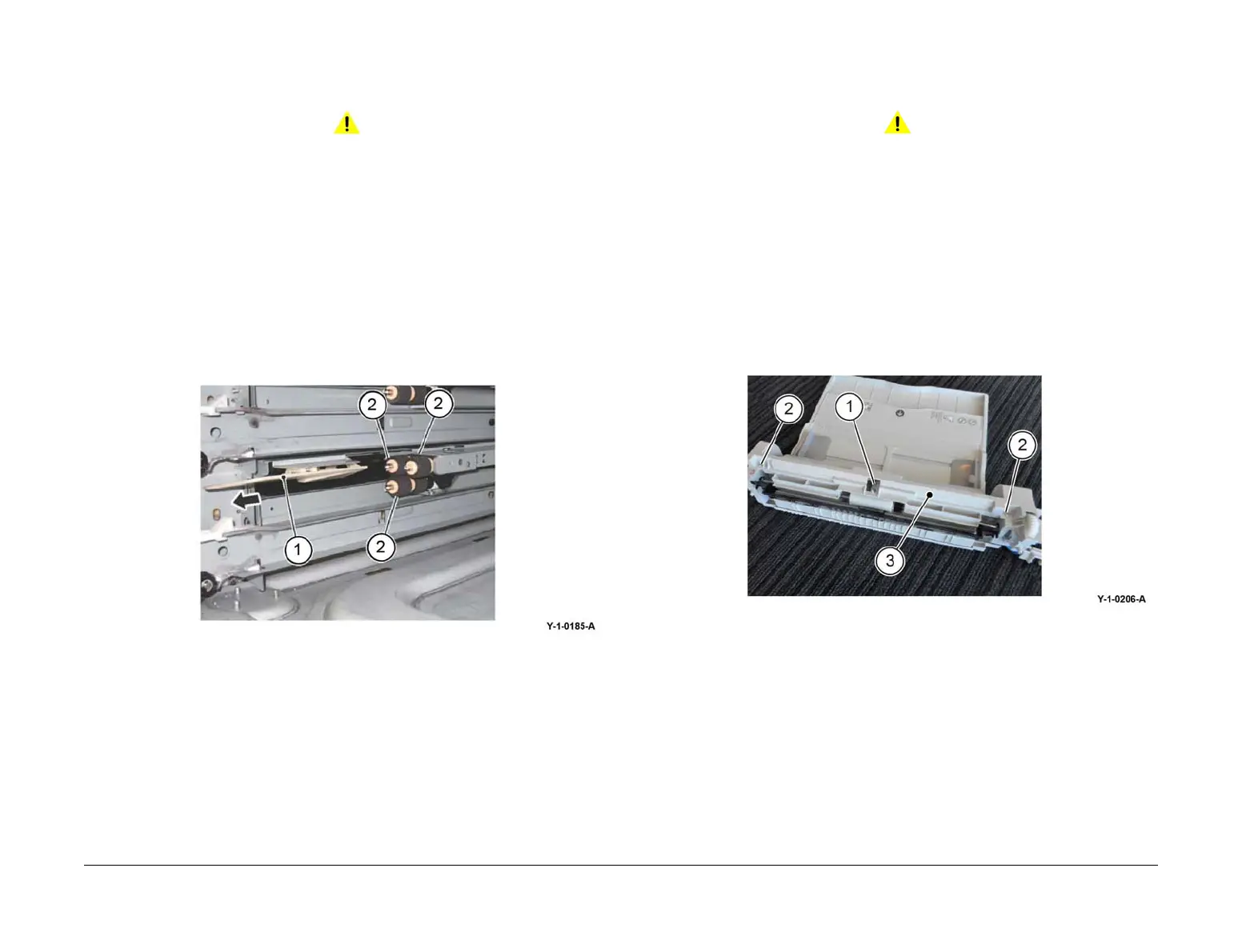

Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new tray 2 feed, retard and nudger rolls are installed, enter dC135 HFSI Counter. Reset
the HFSI counter 954-801.
REP 80.16 Bypass Tray Nudger/Feed Roll
Parts List on PL 70.40
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed and nudger rolls and a retard pad must be installed at the same time. Refer
to REP 80.17.
1. Remove the bypass tray, REP 70.2.
2. Remove the upper frame, Figure 1:
a. Remove the spring (1).
b. Remove two crews (2).
c. Remove the upper frame (3).
Figure 1 Upper frame removal
