Xerox VersaLink B7025 Service Manual

April 2017
4-102
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.10, REP 13.11
Launch Issue
Repairs and Adjustments
REP 13.10 Foot Cover
Parts List on PL 13.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the screw (1), then the foot cover (2), Figure 1.

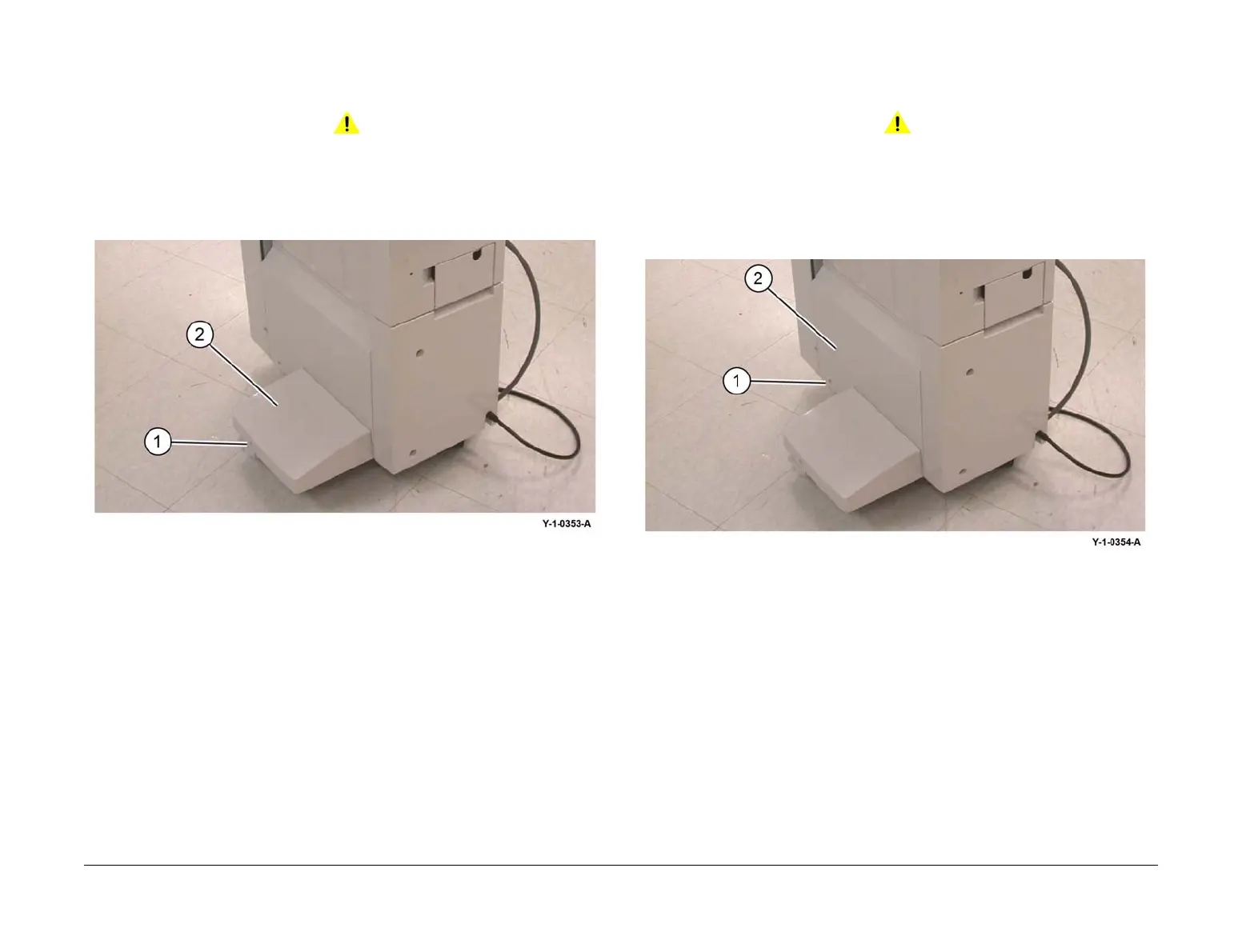

Figure 1 Foot cover removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.11 Stacker Lower Cover
Parts List on PL 13.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the foot cover, REP 13.10.
2. Remove the two screws (1), then the stacker lower cover (2), Figure 1.
Figure 1 Stacker lower cover removal
Replacement
The replacement is the reverse of the removal procedure.
