Xerox VersaLink B7025 Service Manual

April 2017
4-80
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.19
Launch Issue
Repairs and Adjustments
REP 12.19 Compiler Assembly
Parts List on PL 12.25 and PL 12.26
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the front inner cover, PL 12.05 Item 6.
3. Remove the rear cover, PL 12.05 Item 14.
4. Turn over the integrated office finisher.
5. Remove the bottom cover. PL 12.06 Item 1.
6. Remove the tray cover, PL 12.06 Item 3.

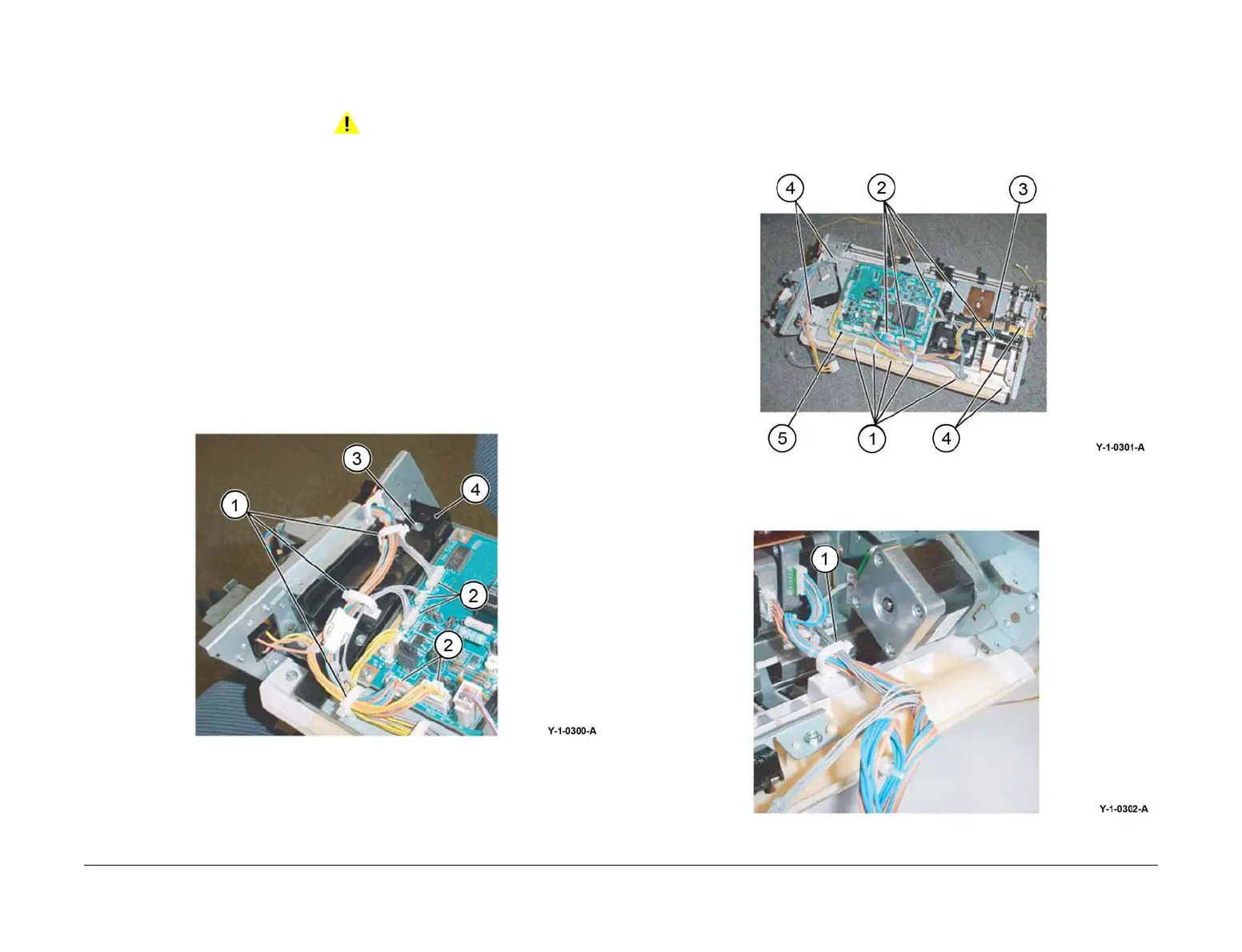

7. Remove the connector bracket, Figure 1:
a. Release the harness from the three clamps (1).
b. Disconnect five connectors (2).
c. Remove two screws (3).
d. Remove the connector bracket (4).
Figure 1 Connector bracket removal
8. Remove the bottom plate, Figure 2:
a. Release the harness from the five clamps (1).
b. Disconnect 8 connectors (2).
c. Release the harness from the retainer (3).
d. Remove four screws (4).
e. Remove the bottom plate (5).
Figure 2 Bottom plate removal
9. Release the harness from the clamp, Figure 3.
Figure 3 Harness release
