Xerox VersaLink B7025 Service Manual

April 2017
4-95
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.1, REP 13.2
Repairs and Adjustments
Launch Issue
REP 13.1 H-Transport Assembly
Parts List on PL 13.05
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the finisher, REP 13.5.
2. Remove the H-transport assembly, Figure 1:
a. Disconnect the harness (1).
b. Remove two screws (2).
c. Remove the docking plate (3).
d. Remove the H-transport (4).

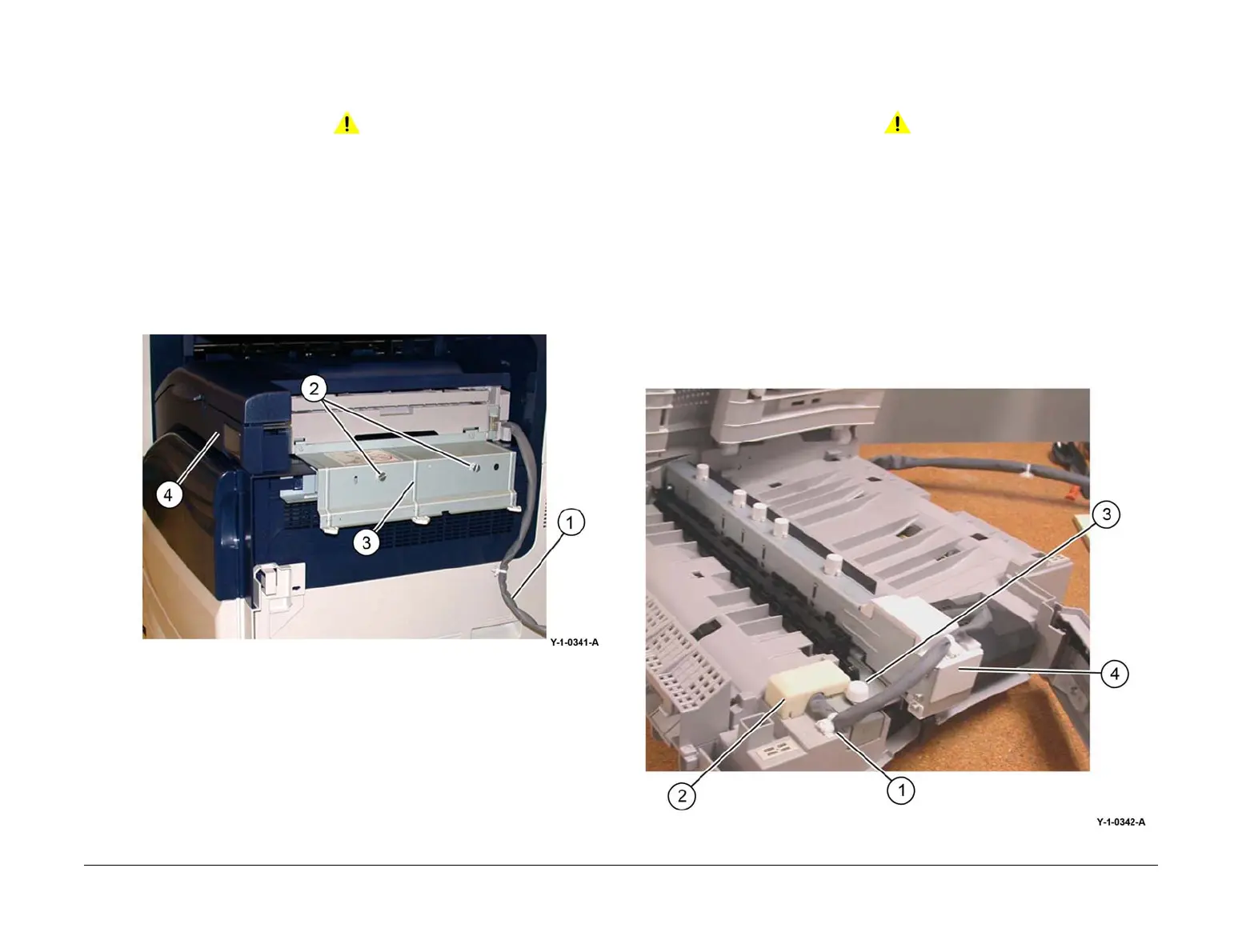

Figure 1 H-transport removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.2 Hole Punch Assembly
Parts List on PL 13.06
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: For clarity, the H-transport is shown removed from the machine in Figure 1.
1. Hold open the H-transport top cover.
2. Open the H-transport front cover.
3. Remove the hole punch assembly, Figure 1:
a. Release the cable clamp (1).
b. Remove the connector cover (2), then disconnect the connector.
c. Remove the thumbscrew (3).
d. Remove the hole punch assembly (4).
Figure 1 Hole punch assembly removal
