Xerox VersaLink B7025 Service Manual

April 2017
3-17
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
IQ18, IQ19
Imaqe Quality
Launch Issue
• Secondary image quality defects may occur, such as stretched cross process mag-
nification, paper jams or banding 35mm (1.4 inches) from the trail edge.
• If stretched cross process magnification occurs, also adjust the value of NVM 2 in
Table 1.
IQ19 White Spots RAP
Blank areas spread irregularly over the whole page. Refer to Figure 1.
Ensure IQ1 Image Quality Entry RAP is performed before starting this RAP.

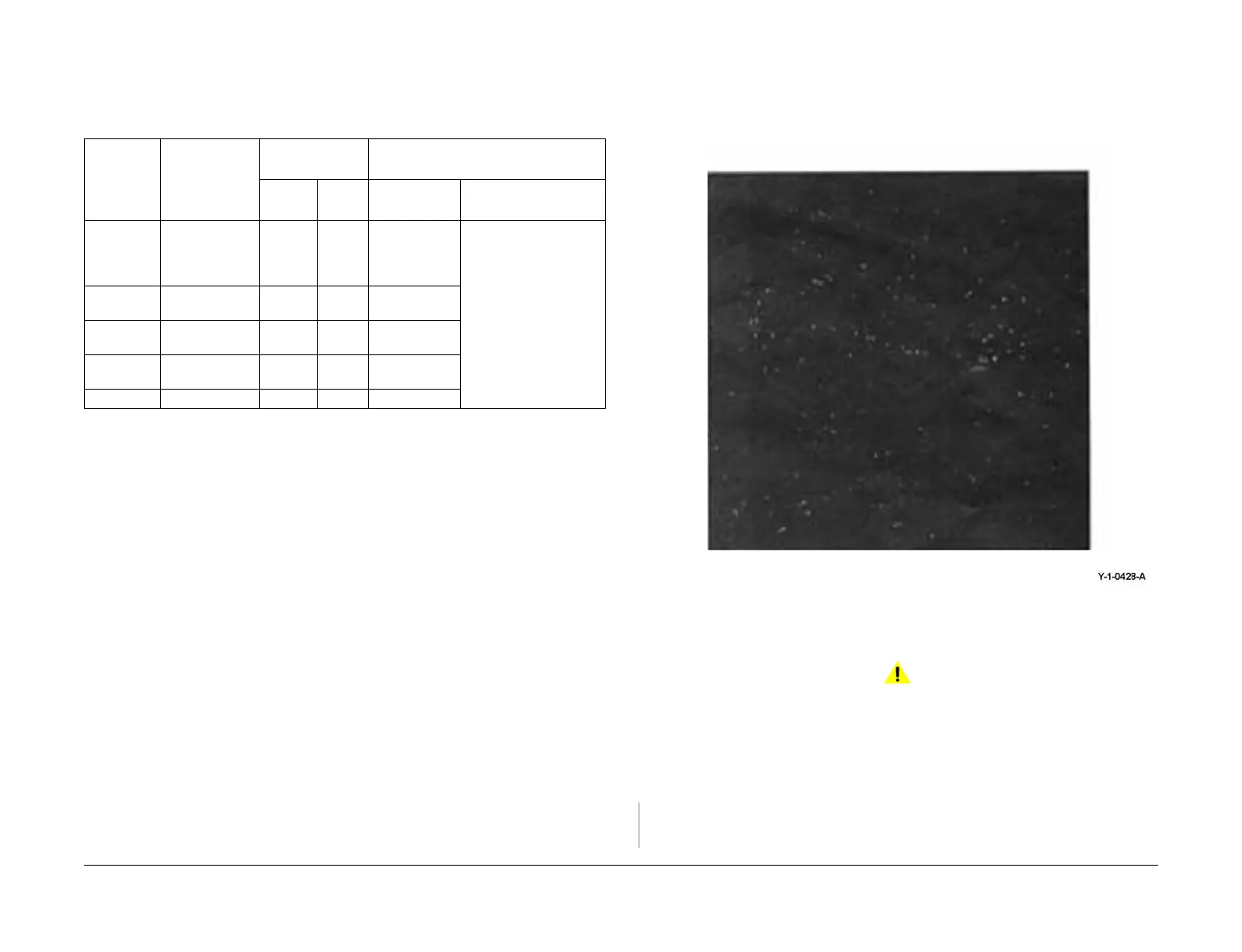

Figure 1 Example
Procedure
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 10. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
Remove, then reinstall the drum cartridge, PL 90.20 Item 1. Switch off, then switch on the
machine, GP 10. Make a print.
The image quality defect persists.
YN
Perform SCP 5 Final Actions.
Table 1 NVM values
Paper Type Paper Weight
NVM 1 NVM 2
Chain-
Link
Range Chain-Link New Value
Light Card 106 to 169gsm 746-091 0 - 120 759-045 to
759-047
759-071 to
759-073
For every 30 step
increase in the value of
NVM 1, also increase
the value of NVM 2 by
one step.
Extra-HW 170gsm and
above
746-092 0 - 120 759-048 to
759-050
Labels 106 to 169gsm 746-093 0 - 120 759-051 to
759-053
HW Labels 170gsm and
above
746-094 0 - 120 759-054 to
759-056
Envelopes - 746-097 0 - 120 -
