Xerox VersaLink B7025 Service Manual

April 2017
5-100
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.66
Launch Issue
Parts Lists

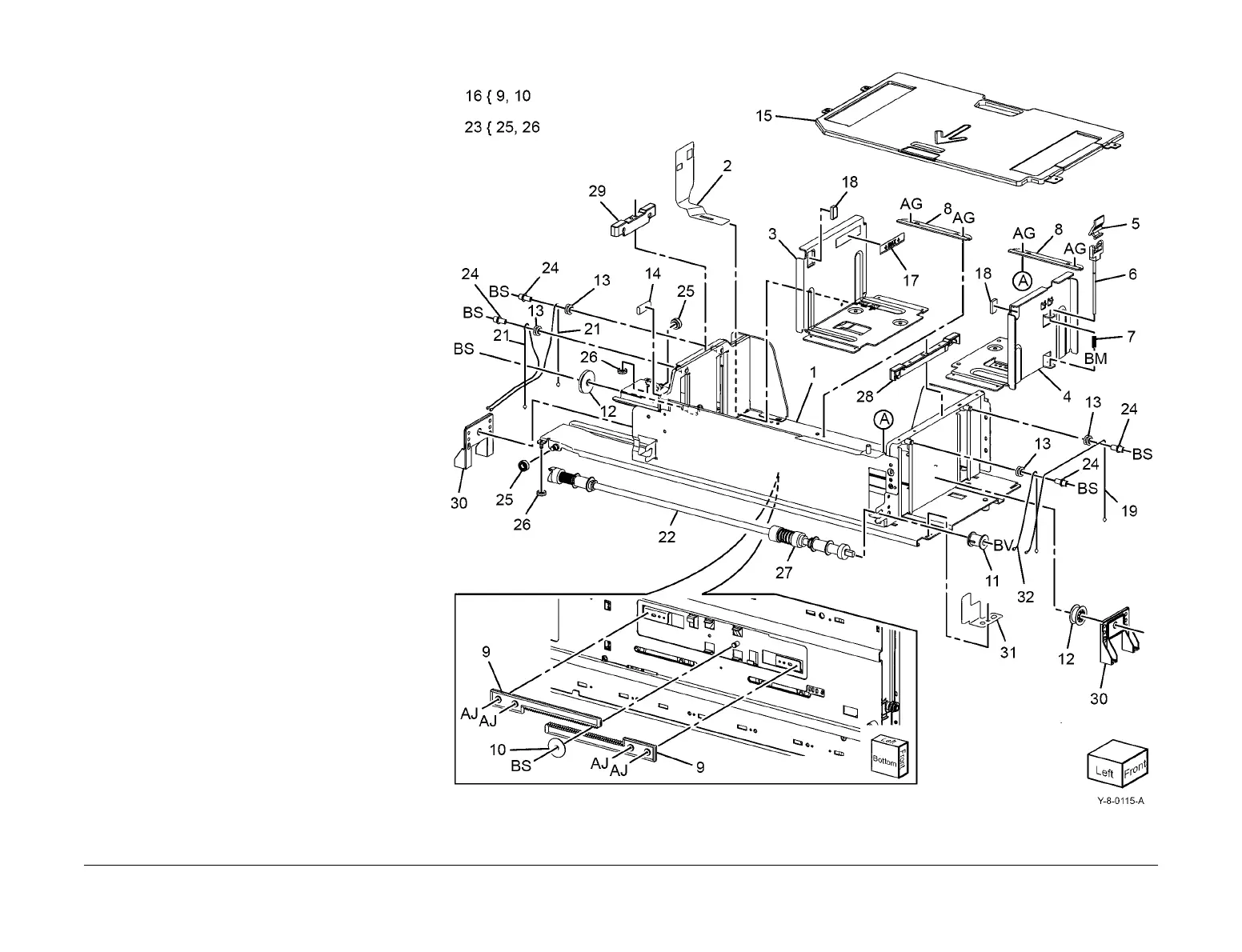

PL 70.66 TTM (2 of 3)
Item Part Description
1 – Tray 3 cassette assembly (Not
Spared)
2 – Size actuator (Not Spared)
3 – Side rear guide (Not Spared)
4 – Side front guide (Not Spared)
5 – Knob (Not Spared)
6 – Knob assembly (Not Spared)
7 – Spring (Not Spared)
8 – Bracket (Not Spared)
9 – Rack gear (P/O PL 70.66 Item 16)
10 807E32730 Pinion
11 – Pulley (Not Spared)
12 – Pulley (Not Spared)
13 – Pulley (Not Spared)
14 – Gasket (Not Spared)
15 – Bottom plate (Not Spared)
16 604K68260 Rack gear and pinion kit
17 – Label (Max) (Not Spared)
18 819E04150 Pad
19 – Front lift cable (long) (Not Spared)
20 – Not used
21 – Rear lift cable (Not Spared)
22 006K35290 Lift shaft (REP 70.9)
23 604K68160 Roller kit
24 – PL shaft (Not Spared)
25 – Side roller (P/O PL 70.66 Item 23)
26 – Lower roller (P/O PL 70.66 Item 23)
27 019K17181 Brake assembly (REP 70.9)
28 – Guide - WF (Not Spared)
29 – Guide - W (Not Spared)
30 – Guide - WL (Not Spared)
31 – Spring (Not Spared)
32 – Front lift cable (short) (Not Spared)
