Xerox VersaLink B7025 Service Manual

April 2017
4-43
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.16, REP 5.17
Repairs and Adjustments
Launch Issue
REP 5.16 Invert Chute Assembly
Parts List on PL 5.45
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the upper feeder assembly, PL 5.10 Item 10.
2. Open the retard chute assembly, PL 5.45 Item 2.
3. Remove the invert chute assembly, Figure 1:
a. Remove two screws (1).
b. Remove the invert chute assembly (2).

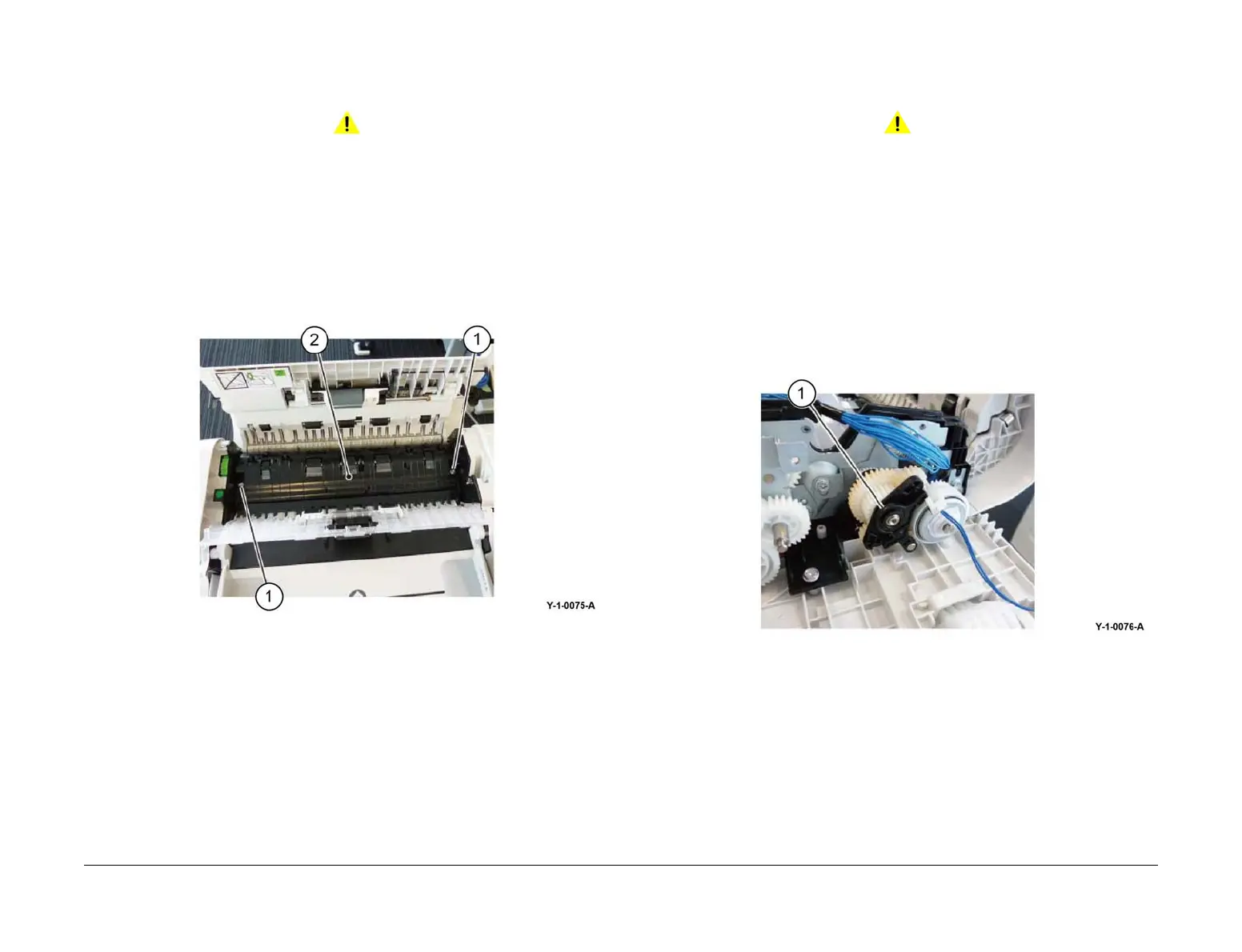

Figure 1 Invert chute assembly removal
Replacement
The replacement is the reverse of the removal procedure.
REP 5.17 DADF Takeaway Roll
Parts List on PL 5.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3.
2. Remove the DADF rear cover, REP 5.4.
3. Remove the upper feeder assembly, REP 5.6.
4. Remove the invert chute assembly, REP 5.16.
5. Remove the document tray, REP 5.14.
6. Remove the harness guide and wire harness, REP 5.11.
7. Remove the DADF feed motor assembly, REP 5.12.
8. Remove the stopper link, Figure 1.
Figure 1 Stopper link removal
