Xerox VersaLink B7025 Service Manual

April 2017
4-30
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.5
Launch Issue
Repairs and Adjustments

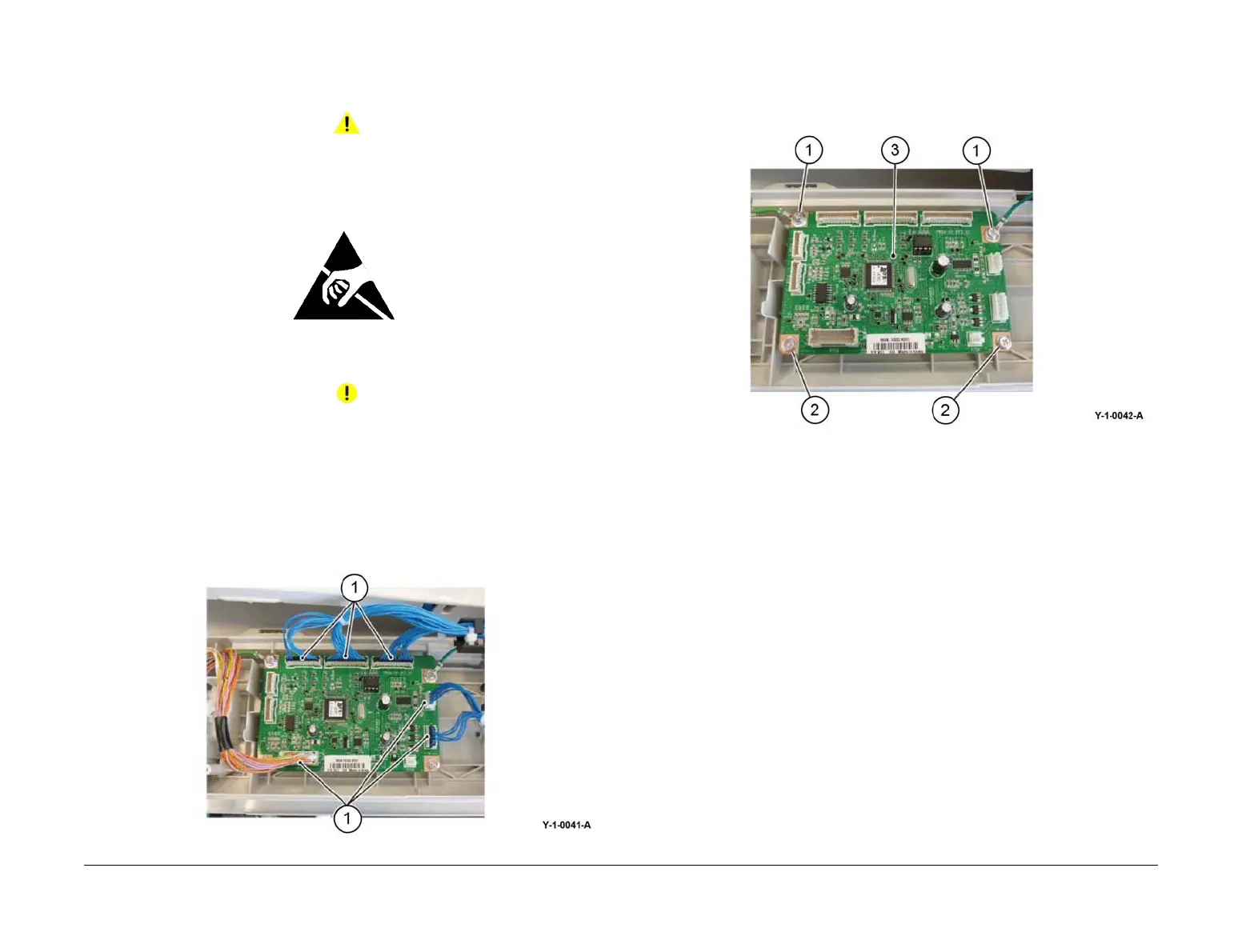

REP 5.5 DADF PWB
Parts List on PL 5.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. If possible, record the current software level by either:
• Printing the configuration report, GP 14.
• From the user interface Home screen, touch Device, then About. Scroll down to view
the Software Version.
2. Remove the DADF rear cover, REP 5.4.
3. Disconnect six connectors (1), Figure 2.
Figure 2 Connectors
4. Remove the DADF PWB, Figure 3:
a. Disconnect the two screws with ground wires (1).
b. Remove the other two screws (2).
c. Remove the DADF PWB (3).
Figure 3 DADF PWB removal
