Xerox VersaLink B7025 Service Manual

April 2017
4-178
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.1, REP 80.2
Launch Issue
Repairs and Adjustments
7. Remove the feed out chute (1), Figure 4.

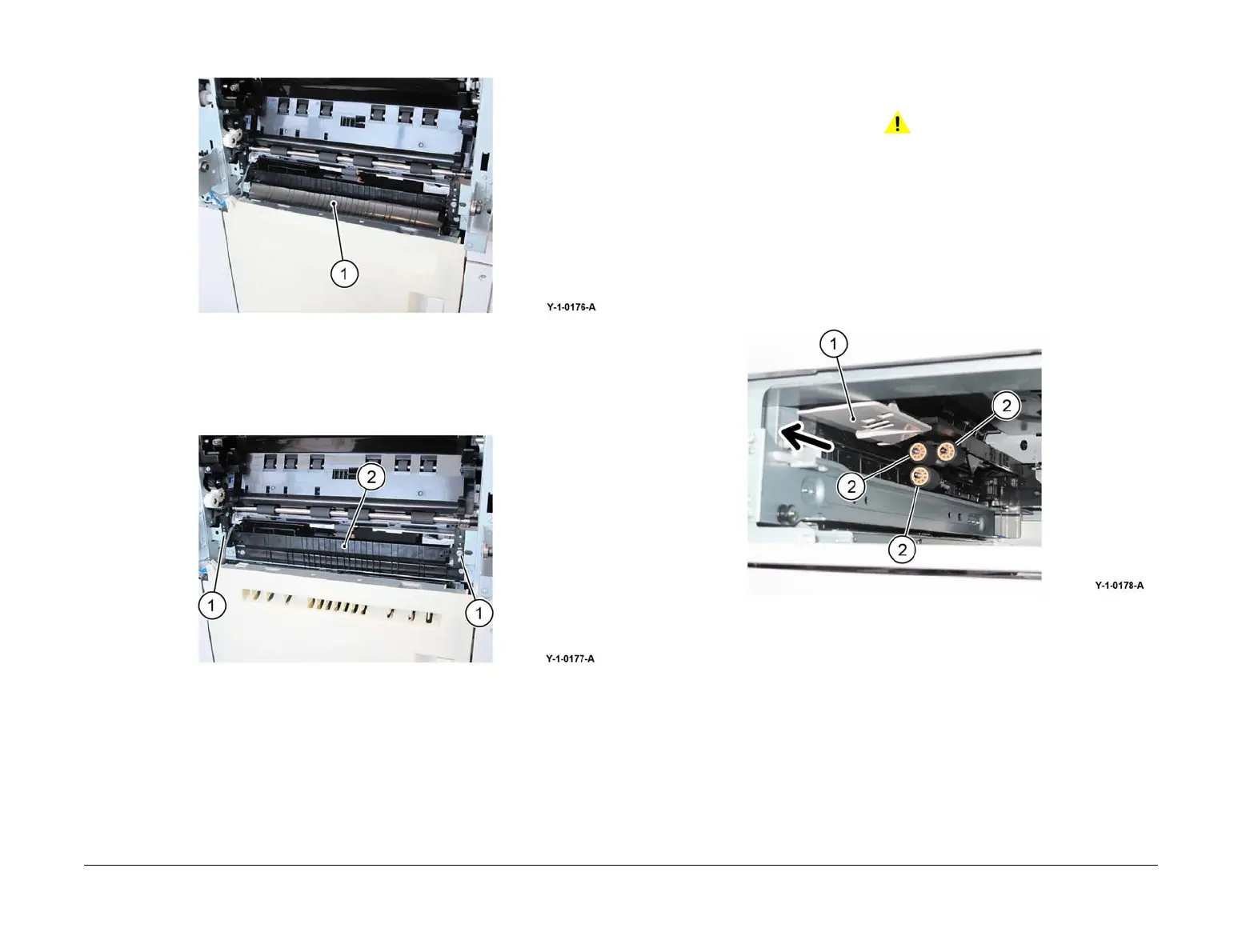

Figure 4 Feed out chute removal
8. Remove the tray 1 feeder assembly, Figure 5:
a. Remove two screws (1).
b. Remove the tray 1 feeder assembly (2).
Figure 5 Tray 1 feeder assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If a new tray 1 feeder assembly is installed, enter dC132 HFSI Counter. Reset the HFSI
counter 954-800.
REP 80.2 Tray 1 Feed/Retard/Nudger Roll
Parts List on PL 80.11
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out tray 1.
2. Remove the tray 1 feed, retard and nudger rolls, Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 1 feed, retard and nudger rolls (2).
Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new tray 1 feed, retard and nudger rolls are installed, enter dC135 HFSI Counter. Reset
the HFSI counter 954-800.
