Xerox VersaLink B7025 Service Manual

April 2017
4-121
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.25, REP 13.26
Repairs and Adjustments
Launch Issue
REP 13.25 Eject Motor
Parts List on PL 13.27
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Undock the finisher, REP 13.5.
2. Remove the booklet maker, REP 13.31.
3. Remove the rear upper cover, REP 13.7.
4. Remove the eject motor assembly, REP 13.22.
5. Remove four screws, then the eject motor, PL 13.27 Item 4.
Replacement
The replacement is the reverse of the removal procedure.
REP 13.26 Front/Rear Tamper Motor
Parts List on PL 13.28
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the compiler tray, REP 13.17.
2. Place the compiler tray upside down on a work surface.

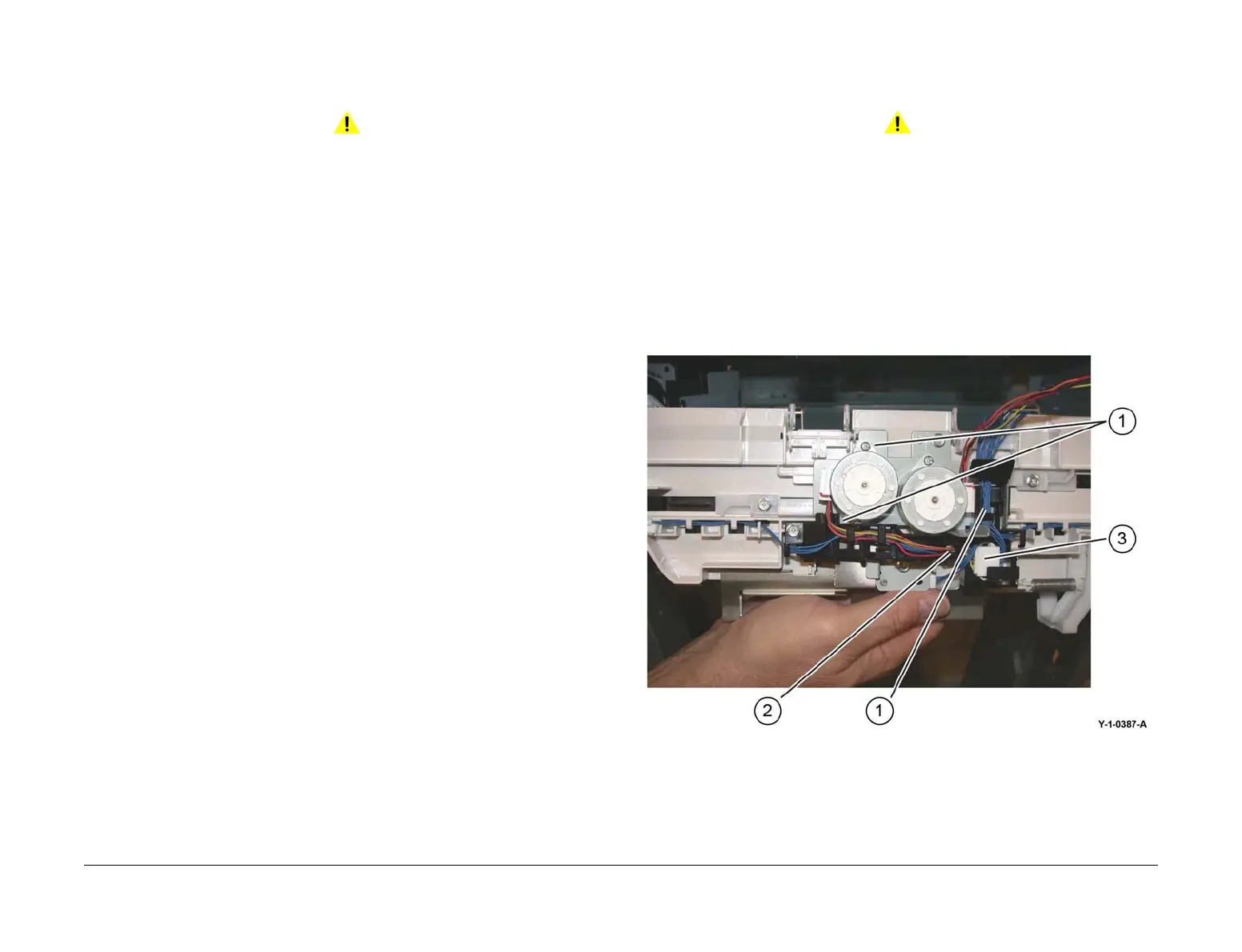

3. Remove the tamper motor, Figure 1:
a. Release the harness (1) from the harness guide.
b. Remove the screw (2), then the harness guide.
c. Disconnect the tamper motor connector (3).
d. Remove both screws, then the relevant tamper motor (4).
Figure 1 Tamper motor removal
Replacement
The replacement is the reverse of the removal procedure.
