Xerox VersaLink B7025 Service Manual

April 2017
5-110
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.10
Launch Issue
Parts Lists

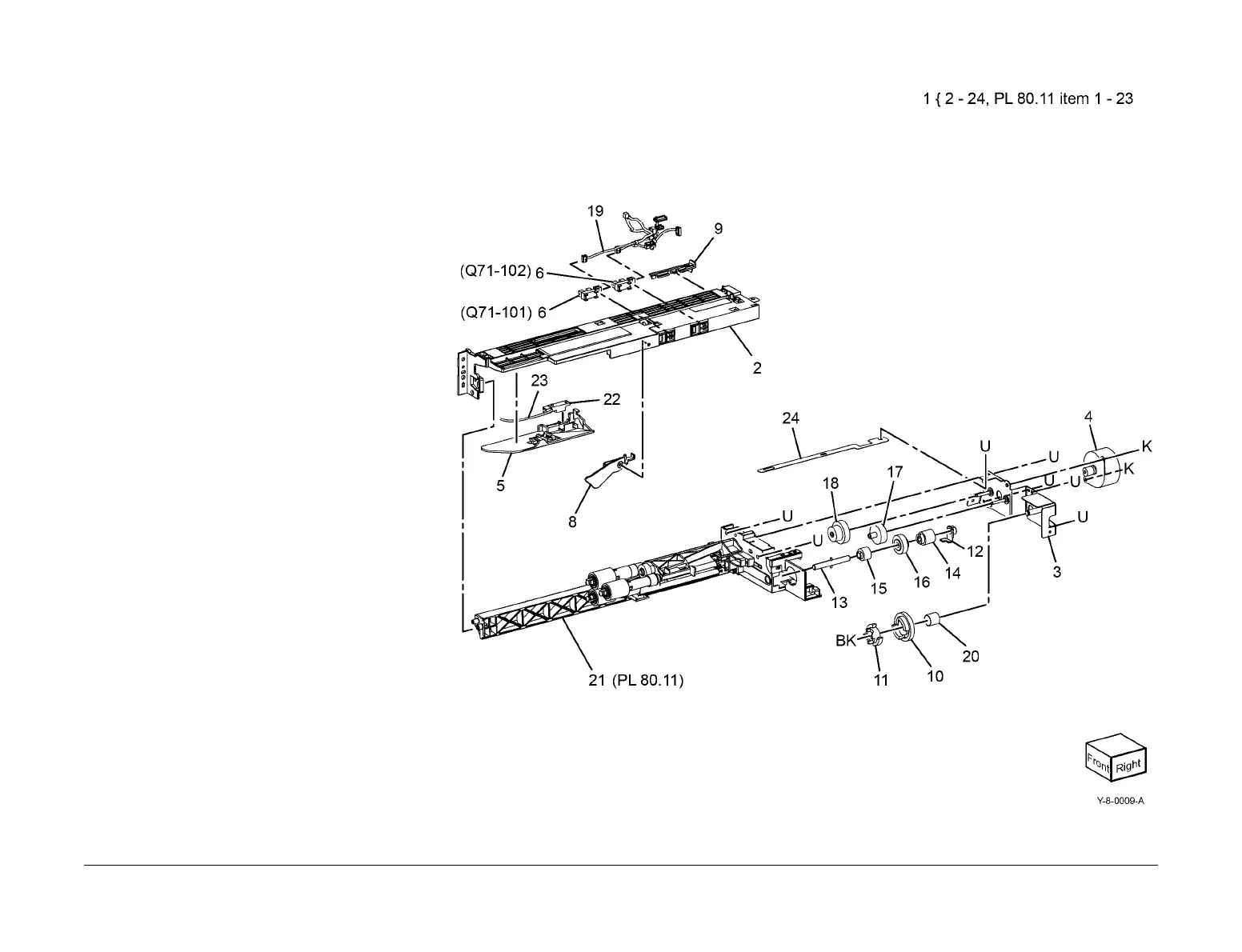

PL 80.10 Tray 1 Feeder Assembly (1 of
2)
Item Part Description
1 – Tray 1 feeder assembly (REF: PL
80.05 Item 1)
2 – Upper frame (P/O PL 80.10 Item 1)
3 – Drive bracket assembly (P/O PL
80.10 Item 1)
4 127K52790 Tray 1 feed/lift motor (MOT71-001)
(P/O PL 80.10 Item 1)
5 – Chute (P/O PL 80.10 Item 1)
6 930W00123 Tray 1 level sensor (Q71-102)/tray
1 no paper sensor (Q71-101)
7 – Not used
8 120E22481 Actuator sensor (P/O PL 80.10 Item
1)
9 – Harness rear holder (P/O PL 80.10
Item 1)
10 – Gear 31T (P/O PL 80.10 Item 1)
11 – Spacer (P/O PL 80.10 Item 1)
12 – Bearing shaft (P/O PL 80.10 Item 1)
13 – Drive shaft assembly (P/O PL 80.10
Item 1)
14 – Gear 13 (P/O PL 80.10 Item 1)
15 005K83081 One way clutch assembly (P/O PL
80.10 Item 1)
16 – One way gear assembly (P/O PL
80.10 Item 1)
17 – Helical gear 25T (P/O PL 80.10
Item 1)
18 – Helical gear 29/19T (P/O PL 80.10
Item 1)
19 – Sensor harness assembly (P/O PL
80.10 Item 1)
20 – Spring (P/O PL 80.10 Item 1)
21 – Roll assembly (P/O PL 80.10 Item
1)
22 930W00211 Tray 1 pre feed sensor (Q71-105)
(P/O PL 80.10 Item 1)
23 – Pre feed sensor harness (P/O PL
80.10 Item 1)
24 – Plate earth nudger (P/O PL 80.10
Item 1)
