Xerox VersaLink B7025 Service Manual

April 2017
4-141
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 40.1
Repairs and Adjustments
Launch Issue
REP 40.1 Drive Assembly
Parts List on PL 40.05
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.

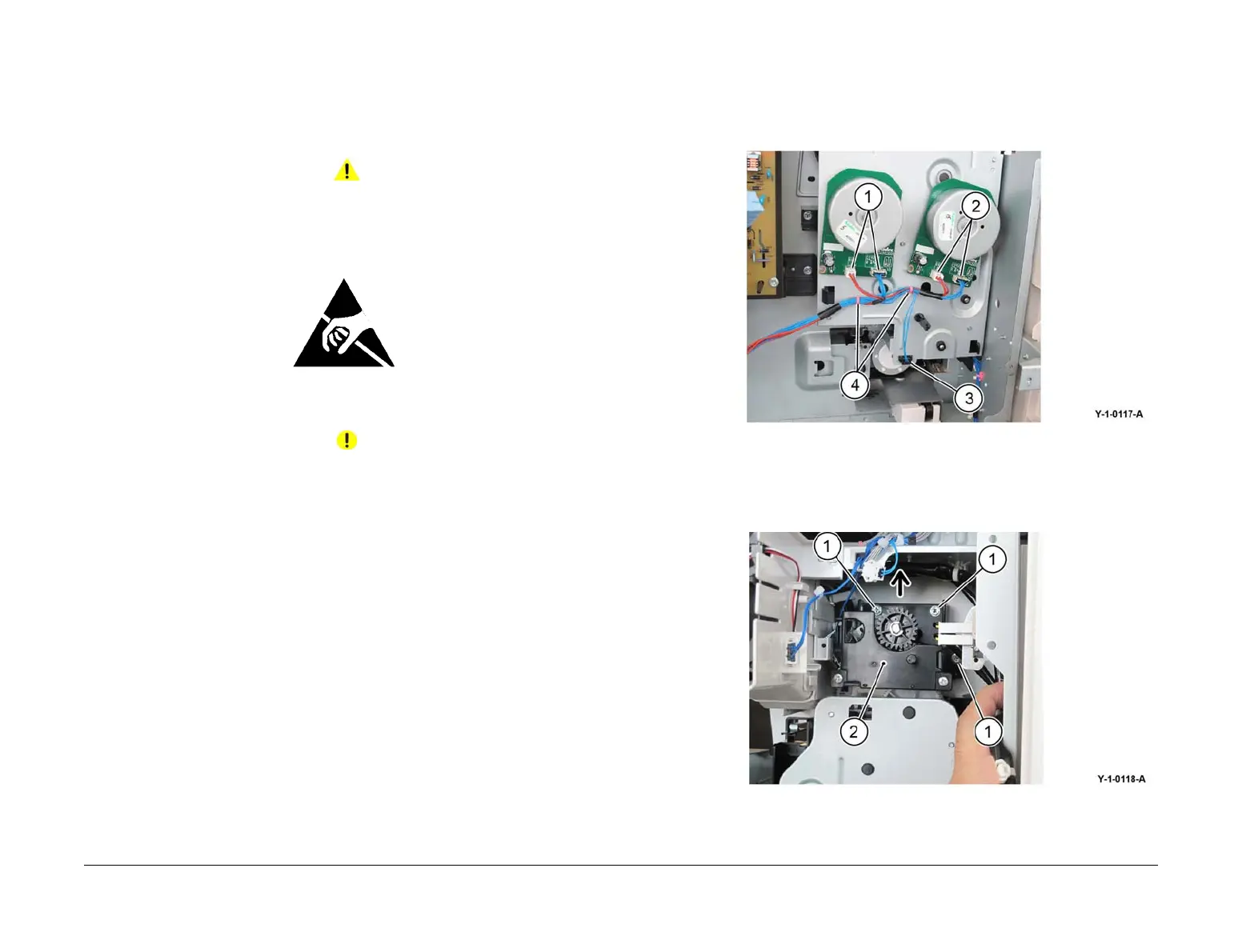

Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. Remove the fuser, REP 10.3.
2. Remove the drum cartridge, REP 90.4.
3. Remove the upper rear cover, REP 28.5.
4. Remove the lower rear cover, REP 28.6.
5. Remove the LVPS Assembly, REP 1.4.
6. Remove the wire harness secured on the drive assembly, Figure 2:
a. Disconnect the connectors (1).
b. Disconnect the connectors (2).
c. Disconnect the connector (3).
d. Remove the clamp band (4).
Figure 2 Harnesses
7. Move the exit 1 transport assembly, Figure 3:
a. Remove three screws (1).
b. Move the exit 1 transport assembly (2) upward.
Figure 3 Exit 1 transport assembly
