Xerox VersaLink B7025 Service Manual

April 2017
5-113
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.20
Parts Lists
Launch Issue

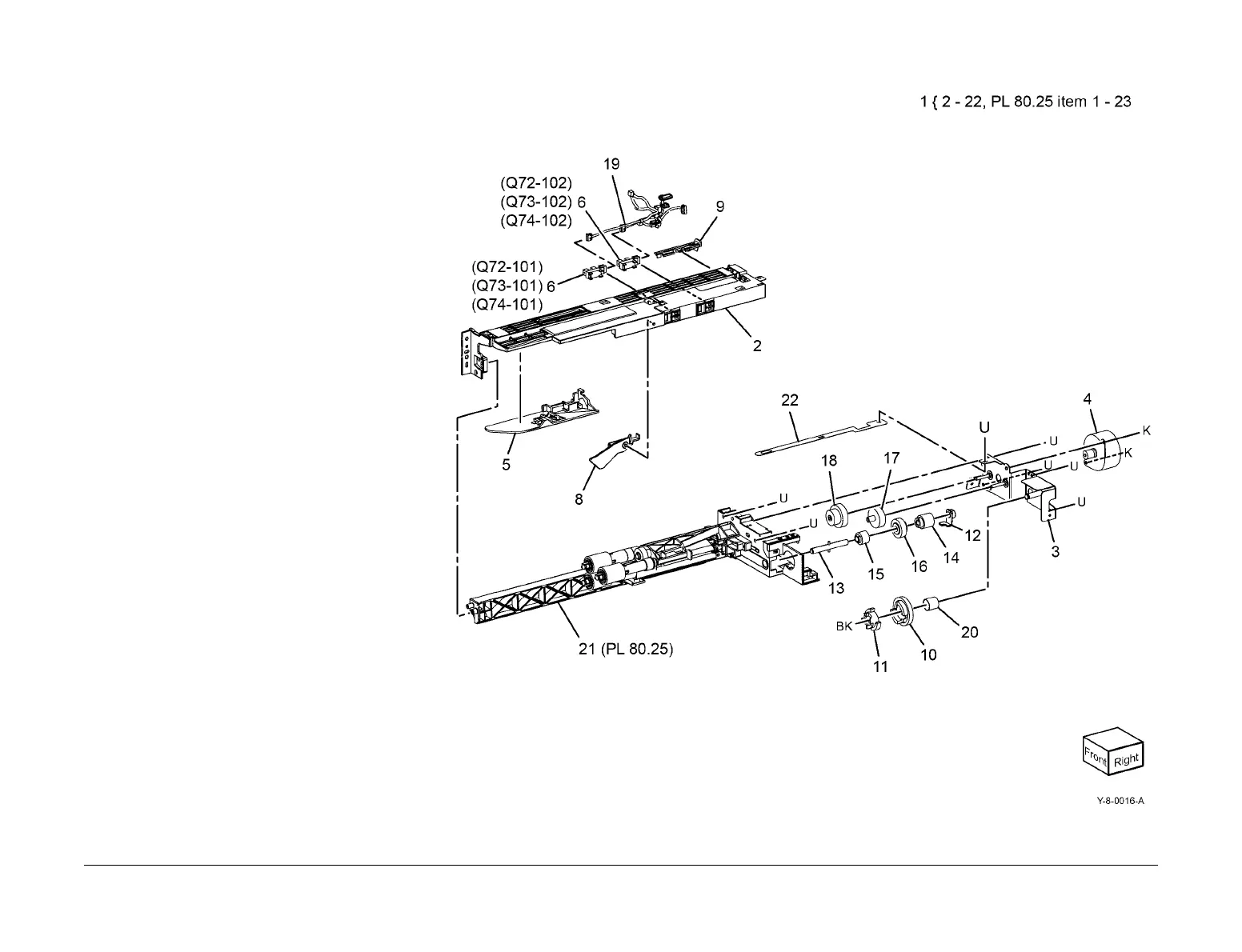

PL 80.20 Tray 2, 3 and 4 Feeder
Assembly (1 of 2)
Item Part Description
1 – Tray 2/3/4 feeder assembly (REF:
PL 80.15, PL 80.30, PL 80.35, PL
80.65, PL 80.70)
2 – Upper frame (P/O PL 80.20 Item 1)
3 – Drive bracket assembly (P/O PL
80.20 Item 1)
4 127K52790 Tray 2 feed/lift motor (MOT72-001)/
tray 3 feed/lift motor (MOT73-001)/
tray 4 feed/lift motor (MOT74-001)
(P/O PL 80.20 Item 1)
5 – Chute (P/O PL 80.20 Item 1)
6 930W00123 Tray 2 level sensor (Q72-102)/tray
3 level sensor (Q73-102)/tray 4
level sensor (Q74-102)/tray 2 no
paper sensor (Q72-101)/tray 3 no
paper sensor (Q73-101)/tray 4 no
paper sensor (Q74-101)
7 – Not used
8 120E22481 Tray 2 no paper sensor actuator
9 – Harness rear holder (P/O PL 80.20
Item 1)
10 – Gear 31 (P/O PL 80.20 Item 1)
11 – Spacer (P/O PL 80.20 Item 1)
12 – Bearing shaft (P/O PL 80.20 Item 1)
13 – Drive shaft assembly (P/O PL 80.20
Item 1)
14 – Gear 13T (P/O PL 80.20 Item 1)
15 005K83081 One way clutch assembly (P/O PL
80.20 Item 1)
16 – One way gear assembly (P/O PL
80.20 Item 1)
17 – Helical gear 25T (P/O PL 80.20
Item 1)
18 – Helical gear 29/19T (P/O PL 80.20
Item 1)
19 – Sensor harness assembly (P/O PL
80.20 Item 1)
20 – Spring (P/O PL 80.20 Item 1)
21 – Roll assembly (P/O PL 80.20 Item
1)
22 – Plate earth nudger (P/O PL 80.20
Item 1)
