Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 1.3, REP 1.4
Repairs and Adjustments
Launch Issue
4. Remove the LVPS, Figure 3:
a. Remove 12 screws (1).
b. Release the stand off (2), then remove the LVPS (3).

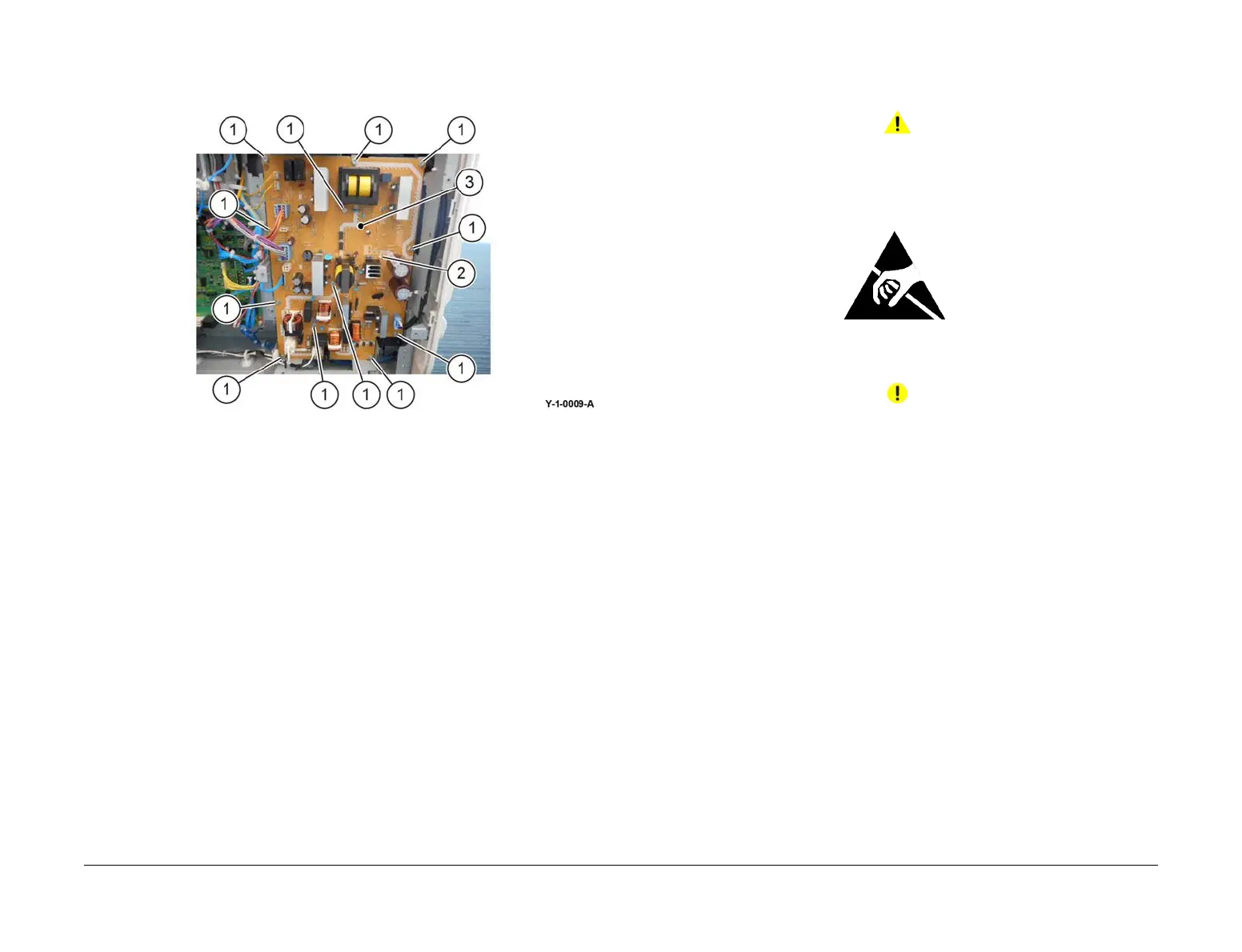

Figure 3 LVPS removal
Replacement
The replacement is the reverse of the removal procedure.
REP 1.4 LVPS Assembly
Parts List on PL 1.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
1. Remove the upper rear cover, REP 28.5.
2. Remove the lower rear cover, REP 28.6.
