Xerox VersaLink B7025 Service Manual

April 2017
5-42
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.08
Launch Issue
Parts Lists

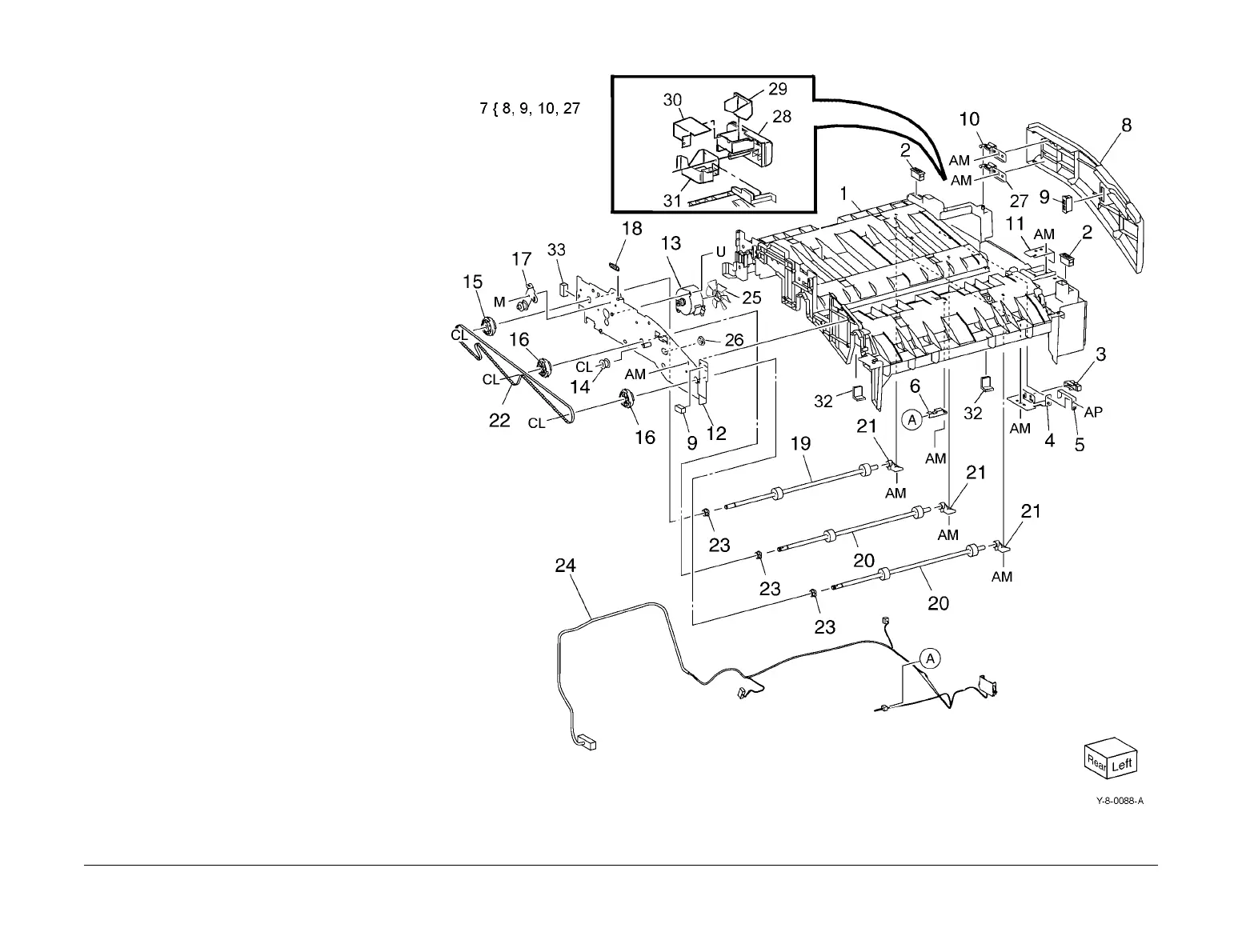

PL 13.08 H-Transport Assembly (4 of
5)
Item Part Description
1 – Lower chute (P/O PL 13.06 Item 6)
2 – Magnet (P/O PL 13.06 Item 6)
3 130E81600 H-Transport open sensor (Q12-
303)
4 – Sensor bracket (Not Spared)
5 – Actuator (Not Spared)
6 930W00211 H-Transport entrance sensor (Q12-
100)
7 948K05100 H-Transport front cover assembly
8 – H-Transport front cover (P/O PL
13.08 Item 7)
9 – Gasket (P/O PL 13.08 Item 7)
10 – Hinge (P/O PL 13.08 Item 7)
11 – Bracket (P/O PL 13.06 Item 6)
12 – Rear frame assembly (P/O PL
13.06 Item 6)
13 127K57622 H-Transport motor (MOT12-032)
(REP 13.4)
14 – Tension pulley (Not Spared)
15 – Pulley (43T) (Not Spared)
16 – Pulley (43T) (Not Spared)
17 – Tension bracket (P/O PL 13.06
Item 6)
18 – Spring tension (Not Spared)
19 – Drive roll (Not Spared)
20 – Drive roll (Not Spared)
21 – Bearing (Not Spared)
22 423W01154 H-Transport belt (REP 13.3)
23 – Sleeve bearing (Not Spared)
24 – Wire harness (Not Spared)
25 – Fan blade (Not Spared)
26 – Pinch bushing (Not Spared)
27 – Lower hinge (P/O PL 13.08 Item 7)
28 – Front cover (Not Spared)
29 – Switch cover (Not Spared)
30 – Cover (Not Spared)
31 – Bracket (Not Spared)
32 – Pinch cushion (Not Spared)
33 – Gasket (Not Spared)
