Xerox VersaLink B7025 Service Manual

April 2017
4-67
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.9, REP 12.10
Repairs and Adjustments
Launch Issue

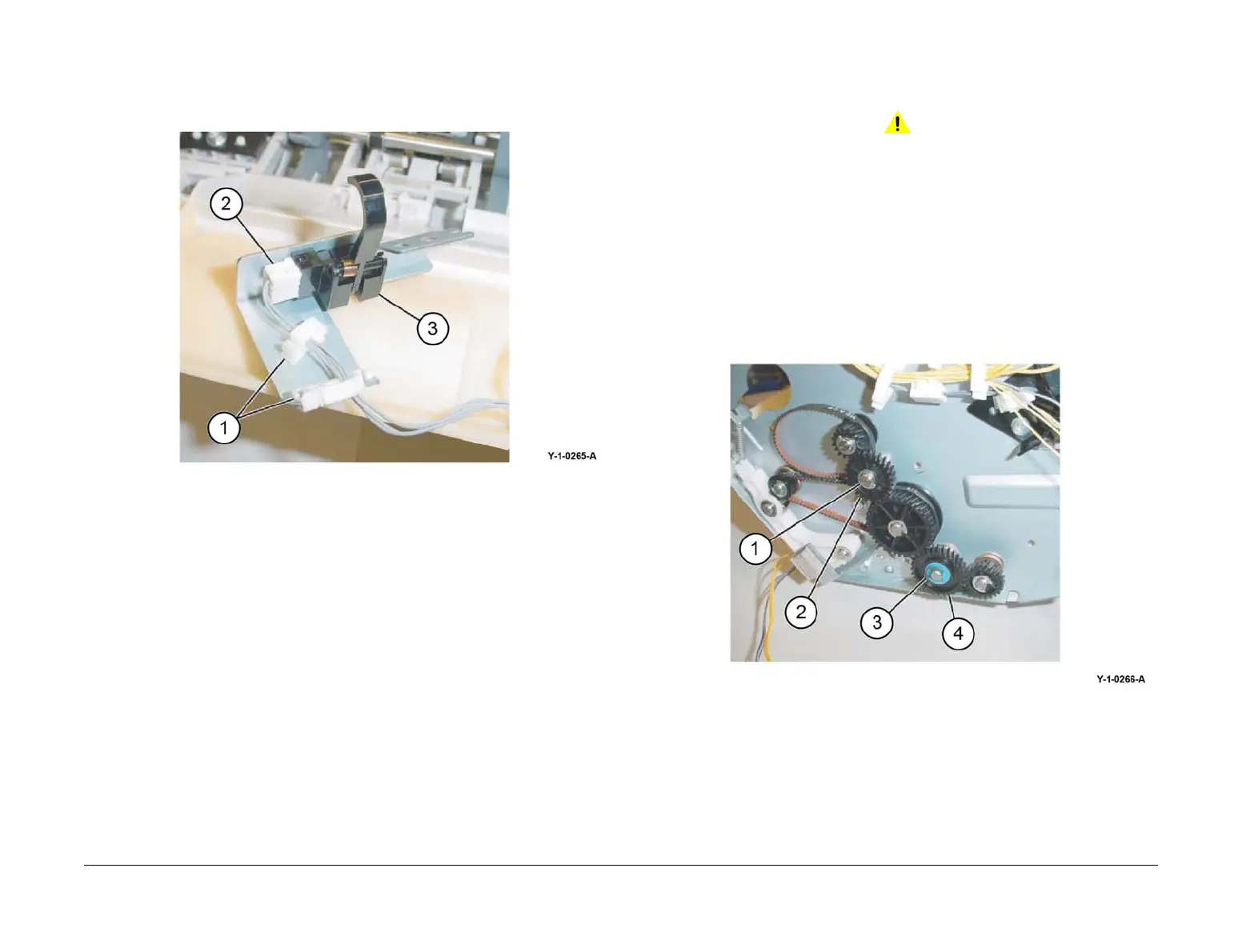

7. Remove the compiler exit sensor, Figure 4:
a. Release the harness from the two clamps (1).
b. Disconnect the connector (2).
c. Remove the compiler exit sensor (3).
Figure 4 Compiler exit sensor removal
Replacement
The replacement is the reverse of the removal procedure.
REP 12.10 Main Paddle Shaft Assembly
Parts List on PL 12.12
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the compiler assembly, REP 12.19.
3. Remove the gear, Figure 1:
a. Remove the E-clip (1).
b. Remove the gear (2).
c. Remove the KL-clip (3).
d. Remove the gear (4).
Figure 1 Gear removal
