Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.29, REP 80.30
Repairs and Adjustments
Launch Issue
REP 80.29 Tray 4 Lower Feed Chute (TTM)
Parts List on PL 80.70
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the tray 4 feeder assembly, REP 80.35.
2. Turn the tray 4 feeder assembly upside down.
3. Remove the lower feed chute, Figure 1:
a. Remove two screws (1).
b. Remove the lower feed chute (2).

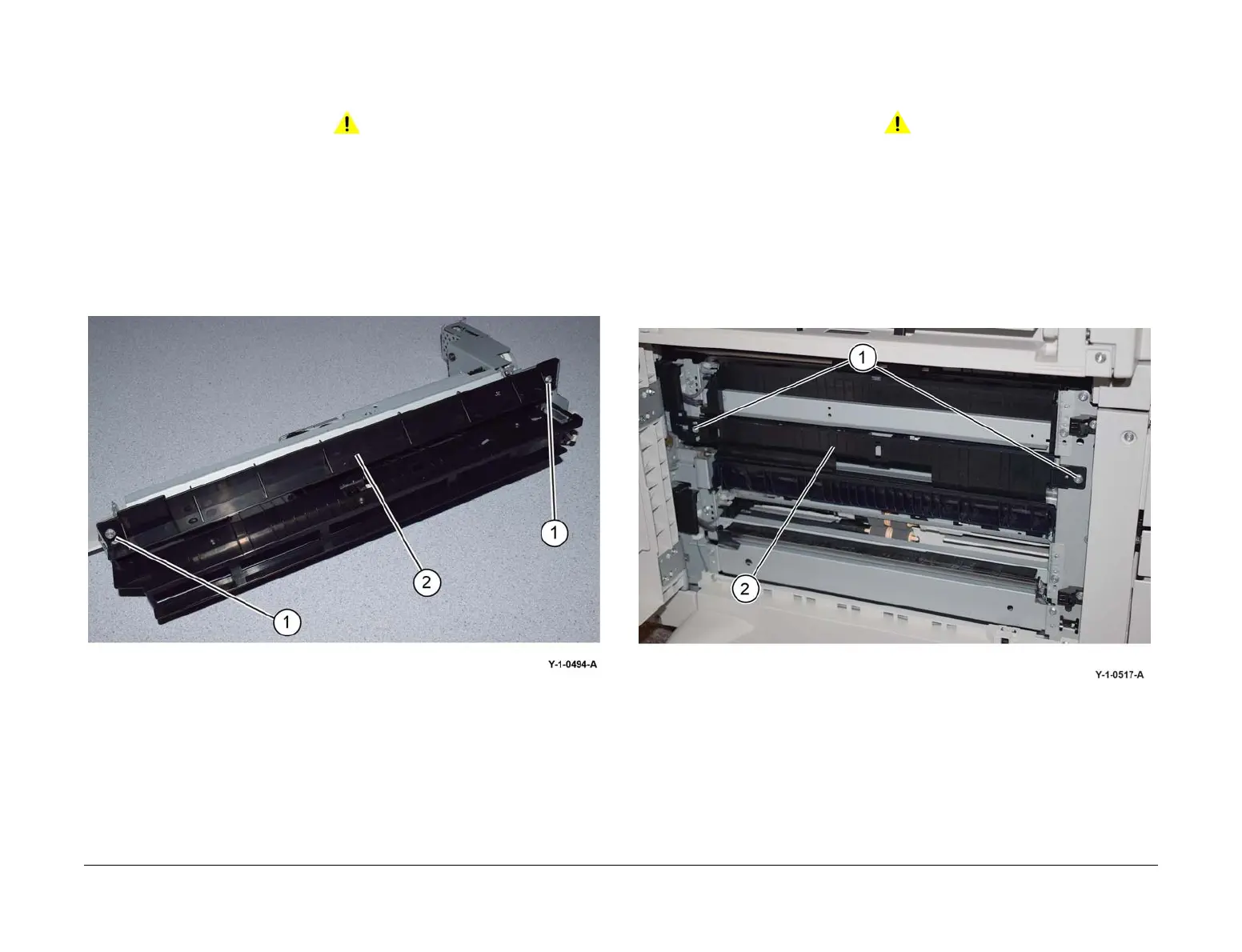

Figure 1 Lower feed chute removal
Replacement
The replacement is the reverse of the removal procedure.
REP 80.30 TTM Chute
Parts List on PL 80.65
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the lower (tray 3 and 4) takeaway roll, REP 80.41.
2. Remove the TTM chute, Figure 1:
a. Remove two screws (1).
b. Move the TTM chute (2) towards the rear, then remove the TTM chute.
NOTE: The TTM chute is secured in the centre by a clip feature.
Figure 1 TTM chute removal
Replacement
The replacement is the reverse of the removal procedure.
