Xerox VersaLink B7025 Service Manual

April 2017
5-83
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.20
Parts Lists
Launch Issue

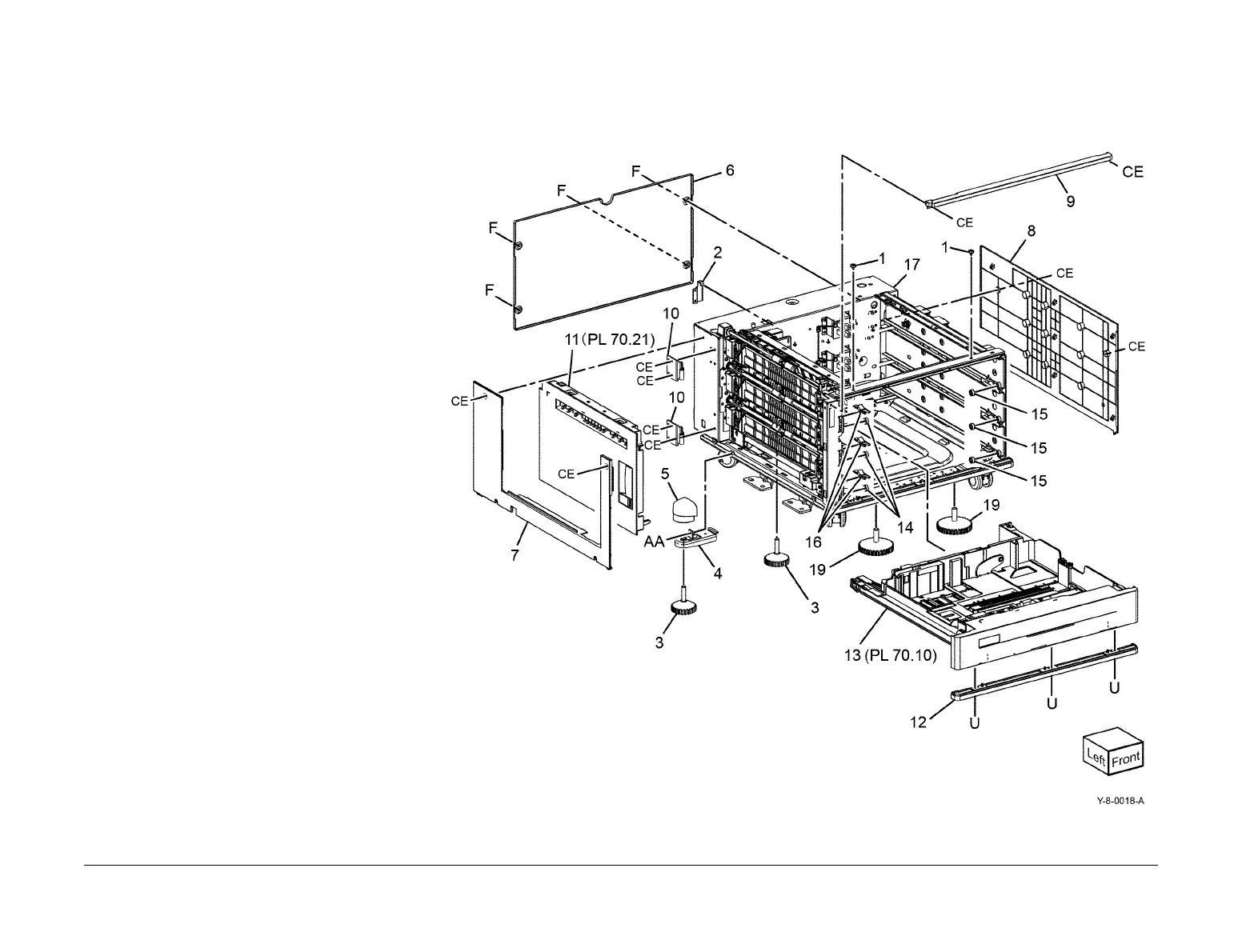

PL 70.20 3TM (1 of 4)
Item Part Description
1 – Docking screw (Not Spared)
2 – Joint bracket (Not Spared)
3 – Rear adjustable foot (Not Spared)
4 – Left bracket (Not Spared)
5 – Bracket cover (Not Spared)
6 – Rear cover (Not Spared)
7 – Left cover (Not Spared)
8 – Right cover (Not Spared)
9 – MA top cover (Not Spared)
10 – Hinge frame bracket (Not Spared)
11 – Left cover assembly (Not Spared)
12 – Foot MA cover (Not Spared)
13 – A3 tray assembly (REF: PL 70.10)
14 059E03500 Front left roller
15 059E08410 Front right roller
16 003E75431 Front right TM stopper
17 – Frame assembly (Not Spared)
18 – Not used
19 – Front adjustable foot (Not Spared)
